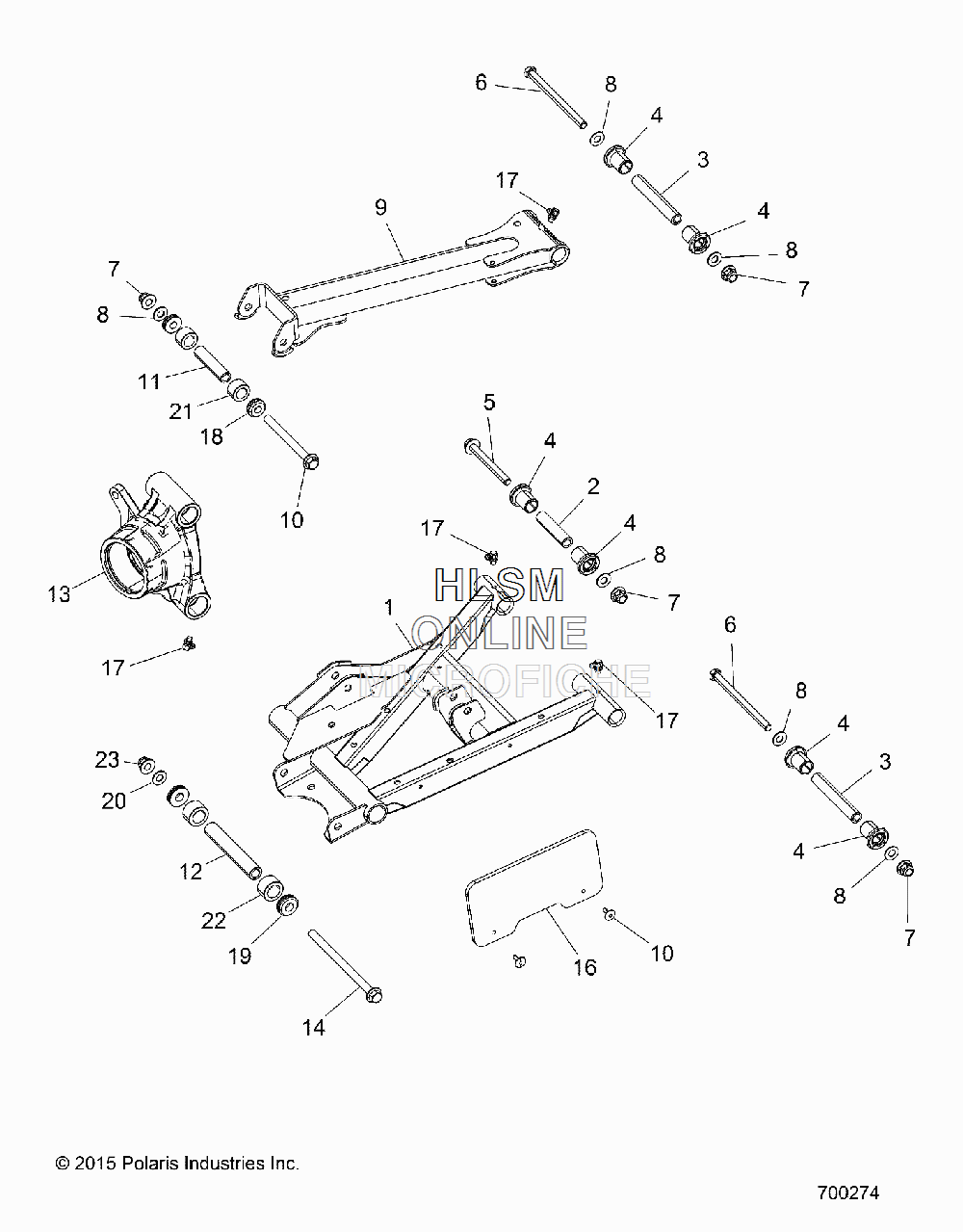

REAR CONTROL ARMS для Polaris RZR 1000 60 INCH WHITE LIGHTNING [Z16VBE99AW] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1021287-385 A-ARM, REAR, LOWER, LH, 60, CLOUD SILVER
    A-ARM, REAR, LOWER, LH, 60, CLOUD SILVER
  • 2
    5138797 SHAFT, PIVOT
    SHAFT, PIVOT
  • 3
    5138798 SHAFT, PIVOT
    SHAFT, PIVOT
  • 4
    5439874 BUSHING
    BUSHING
  • 5
    7519043 SCREW, HEX FLANGE
    SCREW, HEX FLANGE
  • 6
    7519897 SCREW
    SCREW
  • 7
    7547333 NUT
    NUT
  • 8
    7556153 WASHER
    WASHER
  • 9
    1018820-385 A-ARM, REAR, UPPER, LH, 60, CLOUD SILVER
    A-ARM, REAR, UPPER, LH, 60, CLOUD SILVER
  • 9
    1018821-385 A-ARM, REAR, UPPER, RH, 60, CLOUD SILVER
    A-ARM, REAR, UPPER, RH, 60, CLOUD SILVER
  • 10
    7621467 RIVET
    RIVET
  • 11
    5139990 SHAFT-PIVOT, SHORT, M10
    SHAFT-PIVOT, SHORT, M10
  • 12
    5139991 SHAFT-PIVOT, LONG, M12
    SHAFT-PIVOT, LONG, M12
  • 13
    5139979 CARRIER, BEARING, WHEEL, LH
    CARRIER, BEARING, WHEEL, LH
  • 13
    5139980 CARRIER, BEARING, WHEEL, RH
    CARRIER, BEARING, WHEEL, RH
  • 14
    7520294 SCR-HXFL-M12X1.5X170 10.9 ZOD
    SCR-HXFL-M12X1.5X170 10.9 ZOD
  • 15
    7519365 SCREW, HEX FLANGE
    SCREW, HEX FLANGE
  • 16
    5451336-070 SHIELD, CV, REAR, BLACK
    SHIELD, CV, REAR, BLACK
  • 17
    7080510 FITTING, ZERK
    FITTING, ZERK
  • 18
    1543611 ASM-PIVOT CAP, SEALED, M10
    ASM-PIVOT CAP, SEALED, M10
  • 19
    1543612 ASM-PIVOT CAP, SEALED, M12
    ASM-PIVOT CAP, SEALED, M12
  • 20
    7556212 WASHER
    WASHER
  • 21
    5452233 BUSHING-STANDARD, SUSP, M10
    BUSHING-STANDARD, SUSP, M10
  • 22
    5452271 BUSHING-STANDARD, SUSP, M12
    BUSHING-STANDARD, SUSP, M12
  • 23
    7547334 NUT-M12X1.5, FLG, NYLOC-OLIVE D
    NUT-M12X1.5, FLG, NYLOC-OLIVE D
