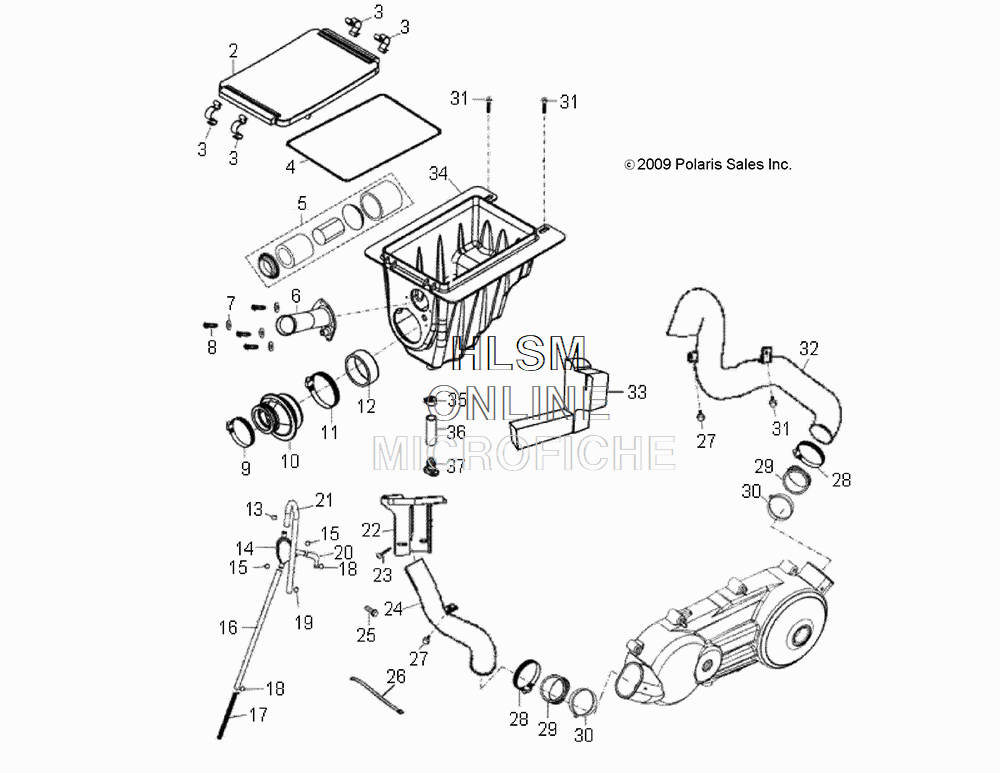

AIR INTAKE SYSTEM для Polaris PHOENIX 200 [A16YAP20AF] - 2016 года выпуска`
-
№АртикулНазвание
-
20452560 COVER, AIR BOXCOVER, AIR BOX
-
30452565 CLIPCLIP
-
40452569 GASKETGASKET
-
50452306 FILTER, AIR CLEANERFILTER, AIR CLEANER
-
60453085 DUCT, INLETDUCT, INLET
-
70453098 WASHER, FLATWASHER, FLAT
-
80453097 RIVETRIVET
-
90452562 CLAMPCLAMP
-
100452563 BOOTBOOT
-
110452561 CLAMPCLAMP
-
120452557 DUCTDUCT
-
130452796 CLIPCLIP
-
140453184 SEPARATOR, OILSEPARATOR, OIL
-
150450865 CLIP, FUEL LINECLIP, FUEL LINE
-
160452794 TUBE, BREATHER, VENTILATEDTUBE, BREATHER, VENTILATED
-
170452793 SPRINGSPRING
-
180450054 CLIPCLIP
-
190452795 CLIPCLIP
-
200450363-083 HOSEHOSE
-
210450363-475 HOSEHOSE
-
220452579 COVER, WATERPROOFCOVER, WATERPROOF
-
230451703 SCREWSCREW
-
240452575 DUCT, OUTLETDUCT, OUTLET
-
250454011 BOLTBOLT
-
260450559 STRAPSTRAP
-
270450824 BOLTBOLT
-
280452578 CLAMPCLAMP
-
290453190 BOOT, DUCTBOOT, DUCT
-
300452577 CLAMPCLAMP
-
310452216 BOLTBOLT
-
320452576 DUCT, OUTLETDUCT, OUTLET
-
330453760 FILTER, FOAMFILTER, FOAM
-
340452559 BOX, AIRBOX, AIR
-
350452566 CLAMPCLAMP
-
360452567 HOSE, DRAINHOSE, DRAIN
-
370452568 PLUG, TRAPPLUG, TRAP
