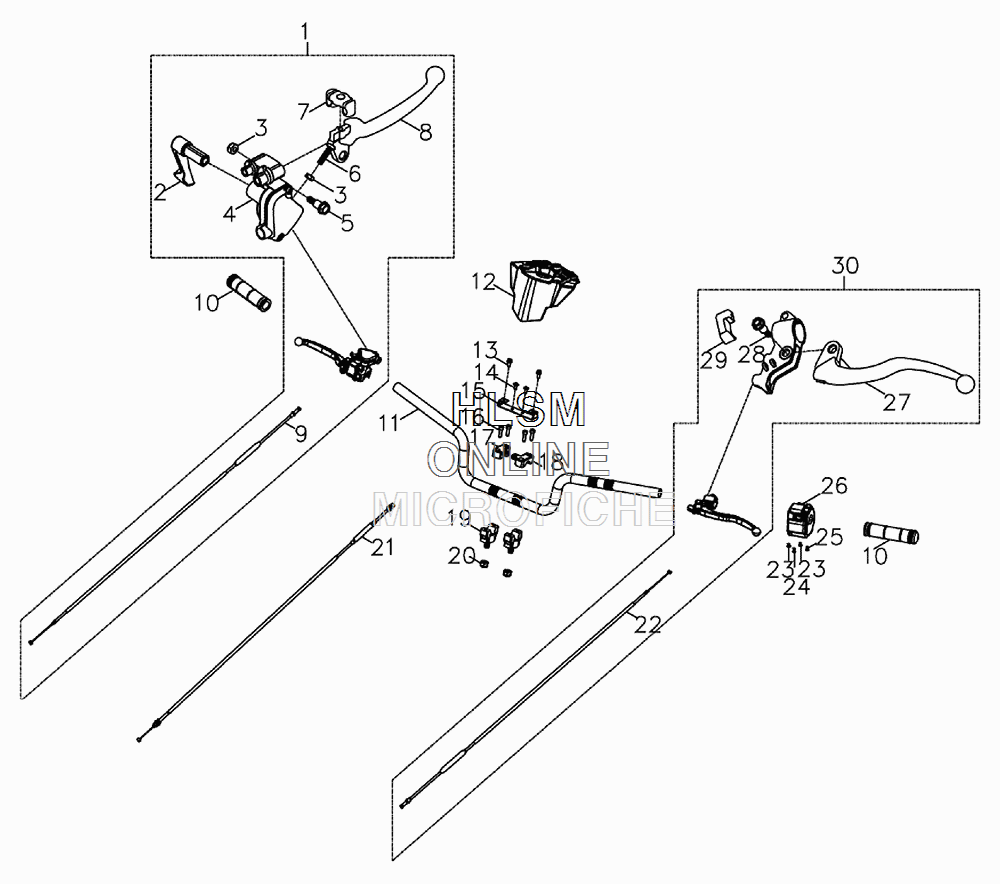

HANDLEBAR для Polaris OUTLAW® 110 EFI (VOODOO BLUE) [A16YAK11AF] - 2016 года выпуска
-
№АртикулНазвание
-
10455178 ASM., LEVER, RIGHT HAND ((INCL. 2-9))ASM., LEVER, RIGHT HAND ((INCL. 2-9))
-
20452202 ARM, THROTTLEARM, THROTTLE
-
30450808 NUTNUT
-
40453721 MOUNT, LEVER, BRAKE, RHMOUNT, LEVER, BRAKE, RH
-
50450806 BOLT, BRAKE LEVER, RHBOLT, BRAKE LEVER, RH
-
60451788 BOLTBOLT
-
70450994 BRACKET, BRAKE CABLEBRACKET, BRAKE CABLE
-
80450694 LEVER, BRAKE, SIDELEVER, BRAKE, SIDE
-
90453736 CABLE, BRAKE SWITCHCABLE, BRAKE SWITCH
-
100453370 GRIP, HANDLEBARGRIP, HANDLEBAR
-
110453737-067 HANDLEBARHANDLEBAR
-
120455179-619 POD, UPPER, VOODOO BLUE ((AF))POD, UPPER, VOODOO BLUE ((AF))
-
130450701 BOLTBOLT
-
140450667 BOLTBOLT
-
150453565 BRACKET, PODBRACKET, POD
-
160450148 BOLTBOLT
-
170450461 COVER, CLAMP, RHCOVER, CLAMP, RH
-
180450460 COVER, CLAMP, LHCOVER, CLAMP, LH
-
190450459 CLAMP, SADDLECLAMP, SADDLE
-
200450276 NUTNUT
-
210455149 CABLE, THROTTLECABLE, THROTTLE
-
220453815 CABLE, SENSOR, BRAKECABLE, SENSOR, BRAKE
-
230451148 SCREWSCREW
-
240451149 BOLTBOLT
-
250453708 BOLTBOLT
-
260455150 ASM., SWITCH, LEFT HAND ((INCL. 23-26))ASM., SWITCH, LEFT HAND ((INCL. 23-26))
-
270450693 LEVER, BRAKE, SIDE, BLACKLEVER, BRAKE, SIDE, BLACK
-
280450807 BOLTBOLT
-
290454042 LOCK, PARK BRAKELOCK, PARK BRAKE
-
300454043 ASM., LEVER, BRAKE, LEFT HAND ((INCL. 22, 27-29))ASM., LEVER, BRAKE, LEFT HAND ((INCL. 22, 27-29))
