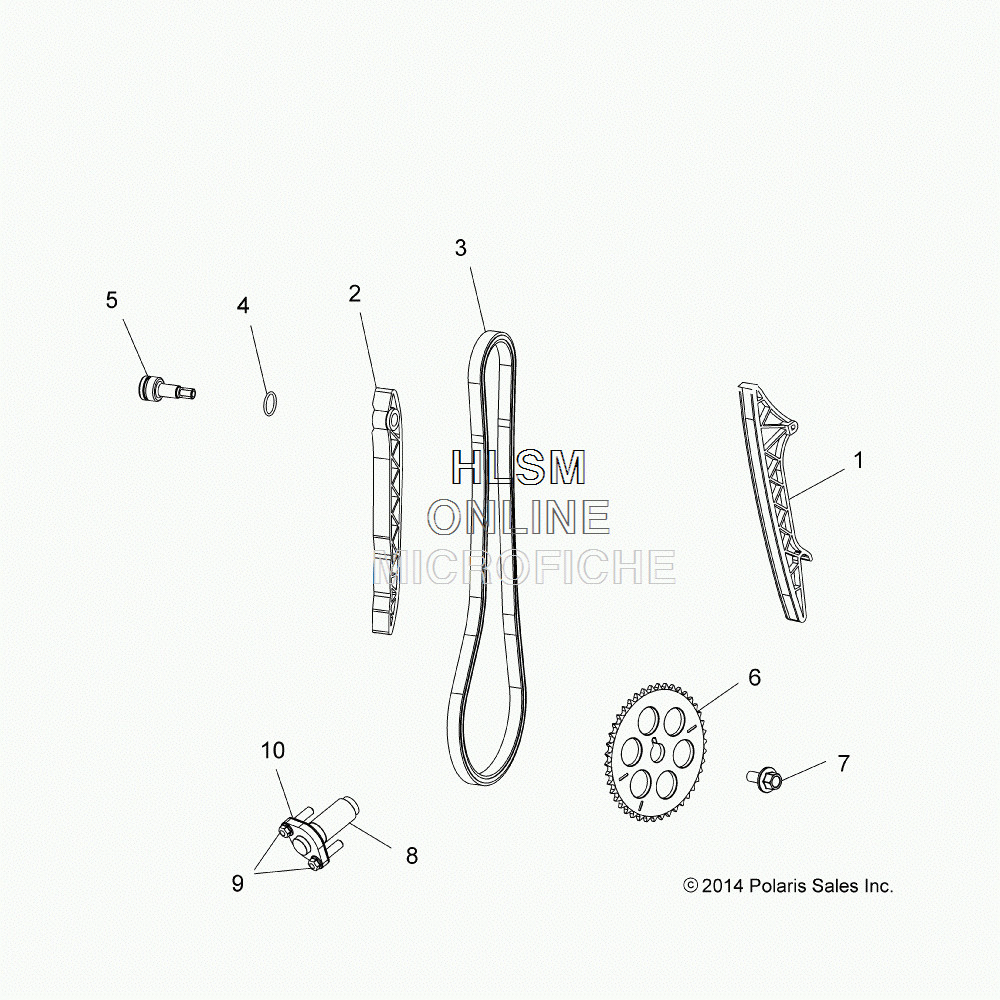

CAM CHAIN AND TENSIONER для Polaris SPORTSMAN XP 850 HO EPS MD (BLUE FIRE) [A15SXE85HI] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3022595 GUIDE, FIXED
    GUIDE, FIXED
  • 2
    3022596 ASM., BLADE CAM DRIVE
    ASM., BLADE CAM DRIVE
  • 3
    3222223 CHAIN, CAMSHAFT ROLLER
    CHAIN, CAMSHAFT ROLLER
  • 4
    5412002 O-RING
    O-RING
  • 5
    5136831 BOLT, SHOULDER
    BOLT, SHOULDER
  • 6
    3222224 SPROCKET, 42T
    SPROCKET, 42T
  • 7
    7518574 SCREW
    SCREW
  • 8
    3022597 TENSIONER, HYDRAULIC W/COVER LGB
    TENSIONER, HYDRAULIC W/COVER LGB
  • 9
    7520107 SCREW
    SCREW
  • 10
    5813135 GASKET, TENSIONER COVER
    GASKET, TENSIONER COVER
