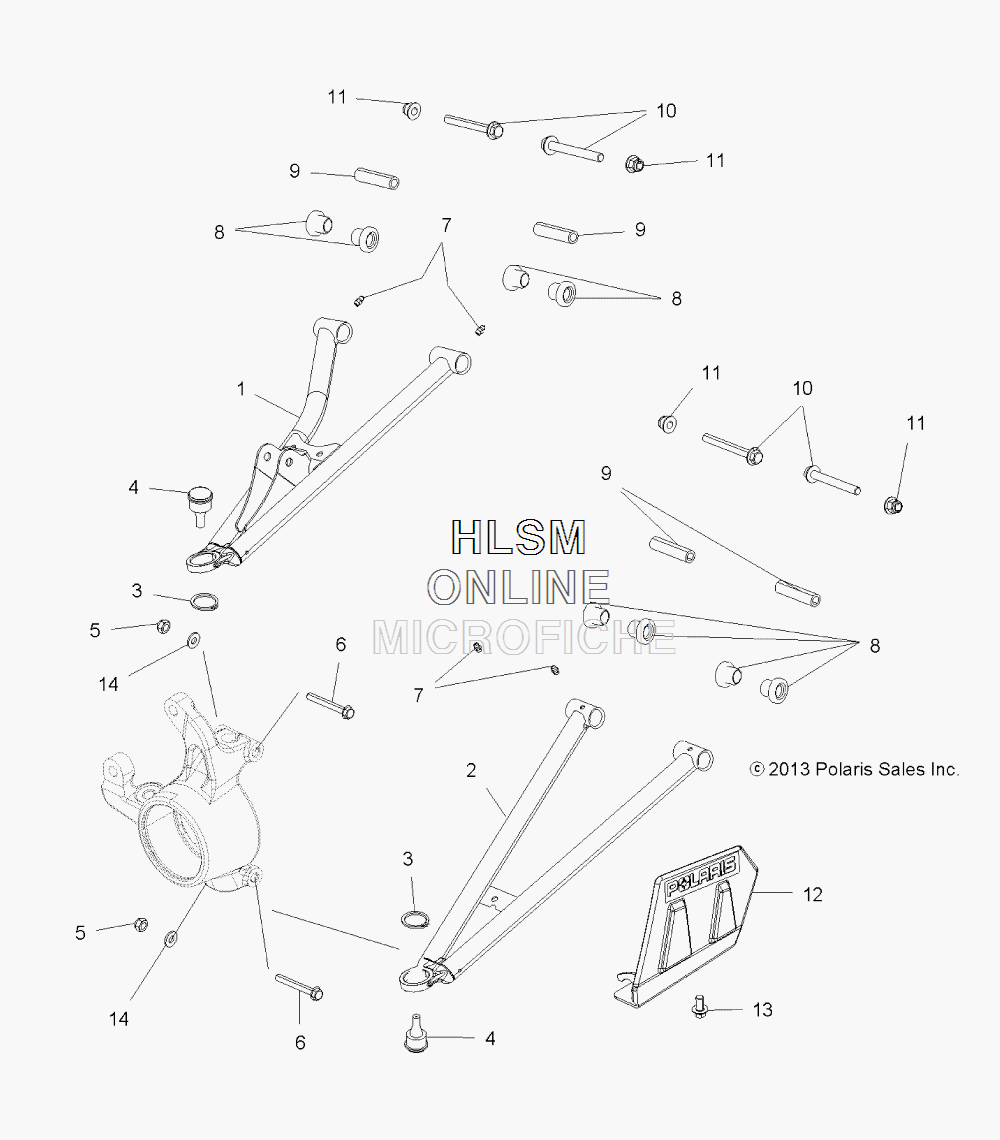

A-ARMS - FRONT для Polaris SPORTSMAN XP 1000 MD [A15SXE95HK] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    1019808-632 ARM, CONTROL, UPPER, FRONT, LEFT HAND, TITANIUM
    ARM, CONTROL, UPPER, FRONT, LEFT HAND, TITANIUM
  • 1
    1019809-632 ARM, CONTROL, UPPER, FRONT, RIGHT HAND, TITANIUM
    ARM, CONTROL, UPPER, FRONT, RIGHT HAND, TITANIUM
  • 2
    1019810-632 ARM, CONTROL, LOWER, FRONT, LEFT HAND, TITANIUM
    ARM, CONTROL, LOWER, FRONT, LEFT HAND, TITANIUM
  • 2
    1019811-632 ARM, CONTROL, LOWER, FRONT, RIGHT HAND, TITANIUM
    ARM, CONTROL, LOWER, FRONT, RIGHT HAND, TITANIUM
  • 3
    7710533 RING, RETAINING
    RING, RETAINING
  • 4
    7061220 BALL, JOINT
    BALL, JOINT
  • 5
    7547405 NUT, NYLOK
    NUT, NYLOK
  • 6
    7519212 SCREW, FLANGE
    SCREW, FLANGE
  • 7
    7080433 FITTING, LUBRICATING
    FITTING, LUBRICATING
  • 8
    1543367 ASM., BUSHING, HD, W/SEAL
    ASM., BUSHING, HD, W/SEAL
  • 9
    5137346 SHAFT, A-ARM
    SHAFT, A-ARM
  • 10
    7518466 BOLT, FLANGE
    BOLT, FLANGE
  • 11
    7547313 NUT, FLANGE
    NUT, FLANGE
  • 12
    5436657-070 SHIELD, CV, FRONT, LEFT HAND, BLACK
    SHIELD, CV, FRONT, LEFT HAND, BLACK
  • 12
    5436658-070 SHIELD, CV, FRONT, RIGHT HAND, BLACK
    SHIELD, CV, FRONT, RIGHT HAND, BLACK
  • 13
    7518529 SCREW
    SCREW
  • 14
    7556557 WASHER
    WASHER
