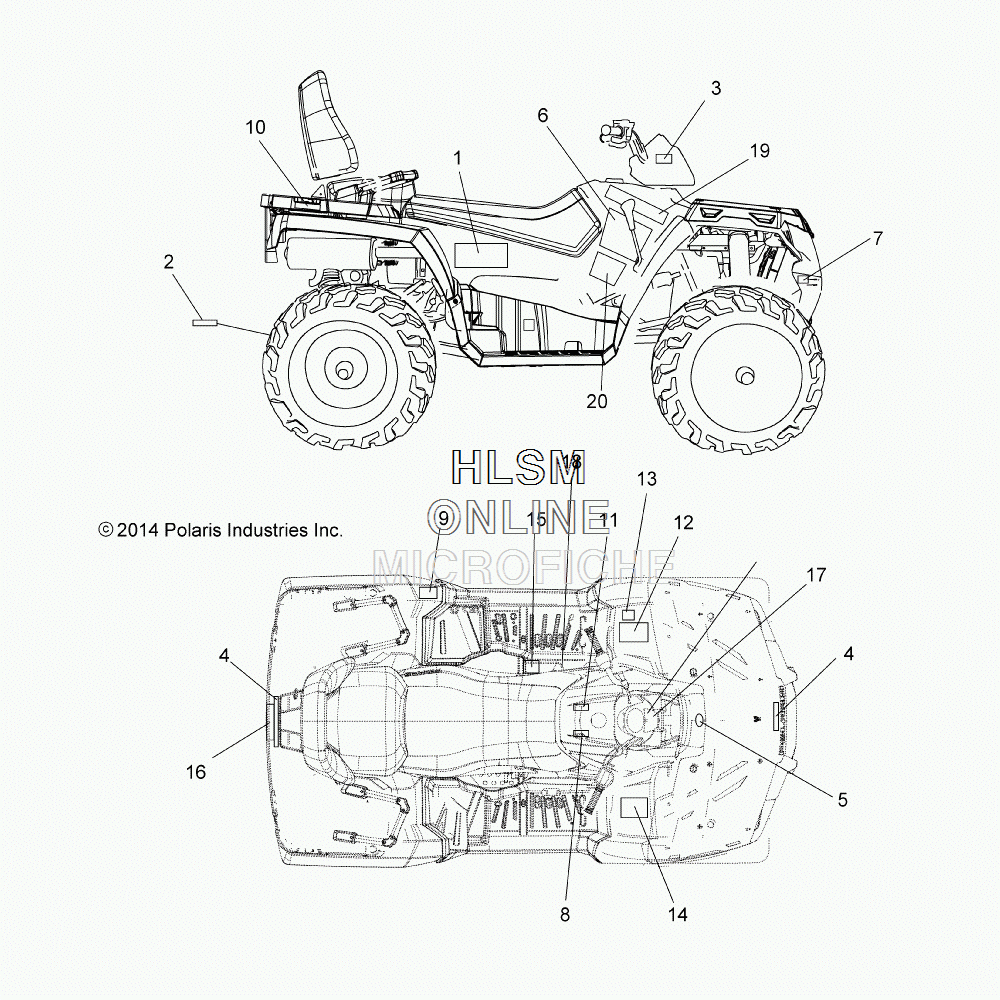

DECALS для Polaris SPORTSMAN TOURING 570 SP (BLUE FIRE) [A15SJE57AV] - 2015 года выпуска`
-
№АртикулНазвание
-
17180943 DECAL, REAR, 'AWD', LEFT HANDDECAL, REAR, 'AWD', LEFT HAND
-
17180944 DECAL, REAR, 'AWD', RIGHT HANDDECAL, REAR, 'AWD', RIGHT HAND
-
27170509 DECAL, HITCHDECAL, HITCH
-
37180945 DECAL, POD, PREMIUM TOURINGDECAL, POD, PREMIUM TOURING
-
47172572 DECAL, WARNING, FRONT/REAR RACKDECAL, WARNING, FRONT/REAR RACK
-
57078465 LOGO, POLARIS STARLOGO, POLARIS STAR
-
67180941 DECAL, SIDE, 570 SP, LEFT HANDDECAL, SIDE, 570 SP, LEFT HAND
-
67180942 DECAL, SIDE, 570 SP, RIGHT HANDDECAL, SIDE, 570 SP, RIGHT HAND
-
72670134 DECAL, REFLECTOR, AMBERDECAL, REFLECTOR, AMBER
-
87175485 DECAL, CAUTION, 4X4DECAL, CAUTION, 4X4
-
97177982 DECAL, WARNING, TIRE/LOADDECAL, WARNING, TIRE/LOAD
-
107174412 DECAL, REFLECTOR, REDDECAL, REFLECTOR, RED
-
117175486 DECAL, WARNING, OVERRIDEDECAL, WARNING, OVERRIDE
-
127175844 DECAL, WARNING, GENERAL/DISC, 2-UPDECAL, WARNING, GENERAL/DISC, 2-UP
-
137175375 DECAL, AGE WARNING, ADULT, 2-UPDECAL, AGE WARNING, ADULT, 2-UP
-
147175845 DECAL, PASSENGER WARNINGDECAL, PASSENGER WARNING
-
157180088 DECAL, WARNING, CLUTCH COVERDECAL, WARNING, CLUTCH COVER
-
167181486 DECAL, PROSTARDECAL, PROSTAR
-
177180947 DECAL, EPS, PREMIUMDECAL, EPS, PREMIUM
-
187180934 DECAL, CLUTCH COVER, EBSDECAL, CLUTCH COVER, EBS
-
197180939 DECAL, SPORTSMAN, LEFT HANDDECAL, SPORTSMAN, LEFT HAND
-
197180940 DECAL, SPORTSMAN, RIGHT HANDDECAL, SPORTSMAN, RIGHT HAND
-
207180961 DECAL, SIDE PANEL, LEFT HANDDECAL, SIDE PANEL, LEFT HAND
-
207180962 DECAL, SIDE PANEL, RIGHT HANDDECAL, SIDE PANEL, RIGHT HAND
