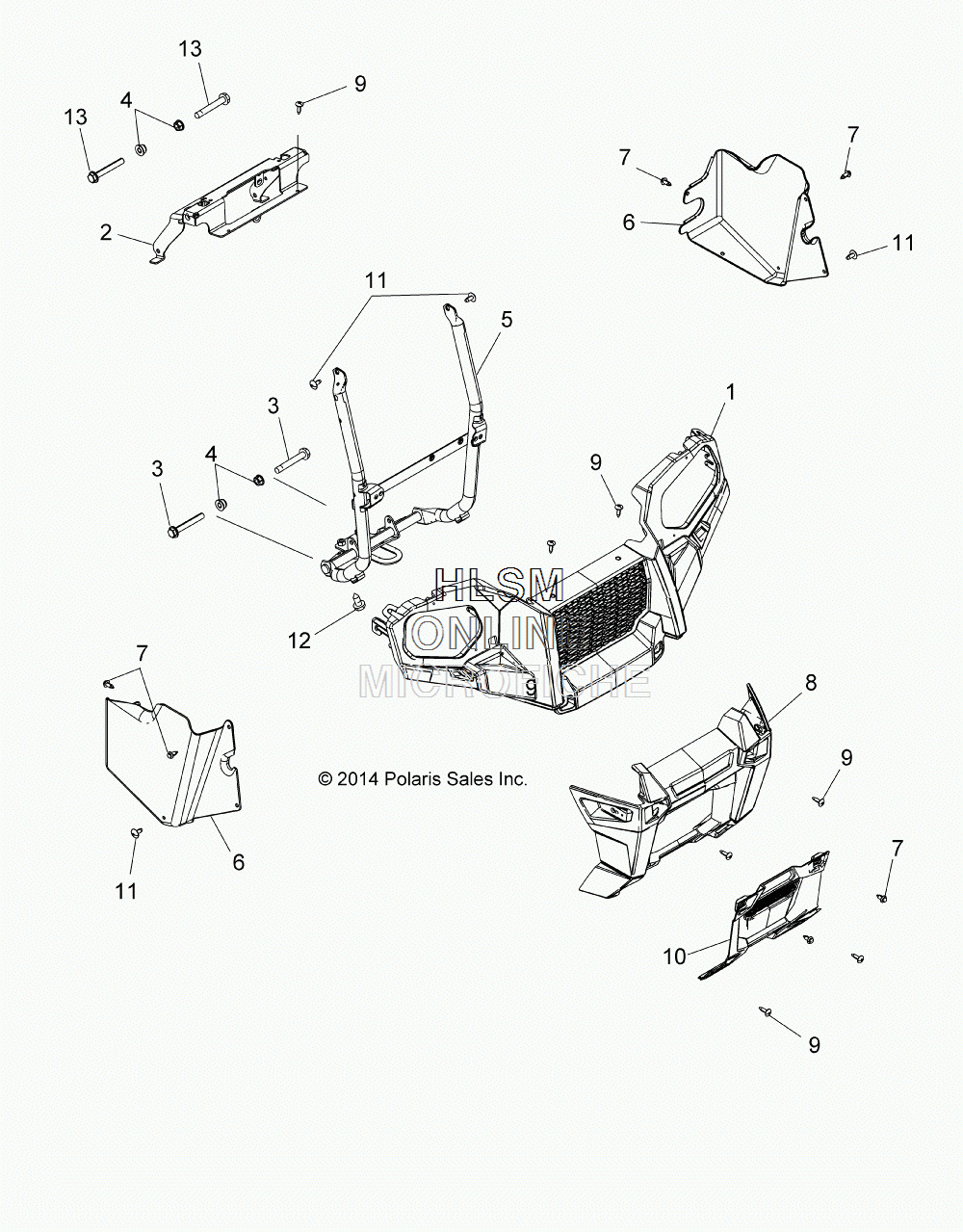

BUMPER - FRONT для Polaris SPORTSMAN ETX SAGE GREEN [A15SEA32AA] - 2015 года выпуска
-
№АртикулНазвание
-
15438559-070 BUMPER, FRONT FASCIA, BLACKBUMPER, FRONT FASCIA, BLACK
-
25259852 BRACKET, RADIATOR, UPPERBRACKET, RADIATOR, UPPER
-
37518341 BOLT, FLANGEBOLT, FLANGE
-
47542343 NUT, FLANGENUT, FLANGE
-
51020923-067 BUMPER, FRONT, BLACKBUMPER, FRONT, BLACK
-
65438689 SHIELD, SIDE, RADIATOR, LEFT HANDSHIELD, SIDE, RADIATOR, LEFT HAND
-
65438690 SHIELD, SIDE, RADIATOR, RIGHT HANDSHIELD, SIDE, RADIATOR, RIGHT HAND
-
77661855 RIVETRIVET
-
85451442-070 COVER, FRONT, LOWER, BLACKCOVER, FRONT, LOWER, BLACK
-
97517685 SCREWSCREW
-
105451441-070 COVER, WINCH, BLACKCOVER, WINCH, BLACK
-
117519092 SCREWSCREW
-
127515399 SCREWSCREW
-
137518341 BOLTBOLT
Все узлы модели:
- A-ARMS- MID DRIVE
- AIR INTAKE SYSTEM
- BATTERY
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - PEDAL W/MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE LINES
- BREATHER PIPE
- • BUMPER - FRONT
- CAB - FRONT W/ SIDE PANELS
- CAB - FRONT W/ STORAGE
- CAB - REAR - SEAT W/FOOTWELLS
- CAM CHAIN W/ SPROCKET
- CAMS AND BEARING HOUSING
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH COVER
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON AND BALANCE SHAFT
- CYLINDER
- CYLINDER HEAD
- DECALS
- DRIVESHAFT - FRONT
- DRIVESHAFT - REAR
- ELECTRICAL - BULBS
- ELECTRICAL - WIRING HARNESS- MAIN
- ELECTRICAL COMPONENTS
- ENGINE - LONG BLOCK
- ENGINE - MOUNTING
- EXHAUST SYSTEM
- FRAME
- FUEL TANK
- GAUGES AND INDICATOR
- GEAR SELECTOR
- GEARCASE
- GEARCASE - FRONT
- GEARCASE - FRONT - MOUNTING
- GEARCASE - MAIN - MOUNTING
- HANDLEBAR - CONTROL ASSY.
- HEADLIGHT
- HEADLIGHT POD
- IGNITION COIL W/ WIRE AND SPARK PLUG
- MANUAL - OWNERS
- OIL FILTER AND DIPSTICK
- OIL PUMP
- PROP SHAFT - FRONT
- RACK - REAR
- STARTING MOTOR
- STATOR COVER AND FLYWHEEL
- STEERING POST
- STORAGE BOX - REAR
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR
- SUSPENSION - TORSION BAR
- TAIL LIGHT
- THERMOSTAT W/ COVER
- THROTTLE ASSEMBLY
- THROTTLE BODY W/ FUEL RAIL
- TOOL KIT
- VALVE COVER
- WATER PUMP IMPELLER W/ COVER
- WHEEL - FRONT W/BRAKE DISK
- WHEEL - REAR W/BRAKE DISK
