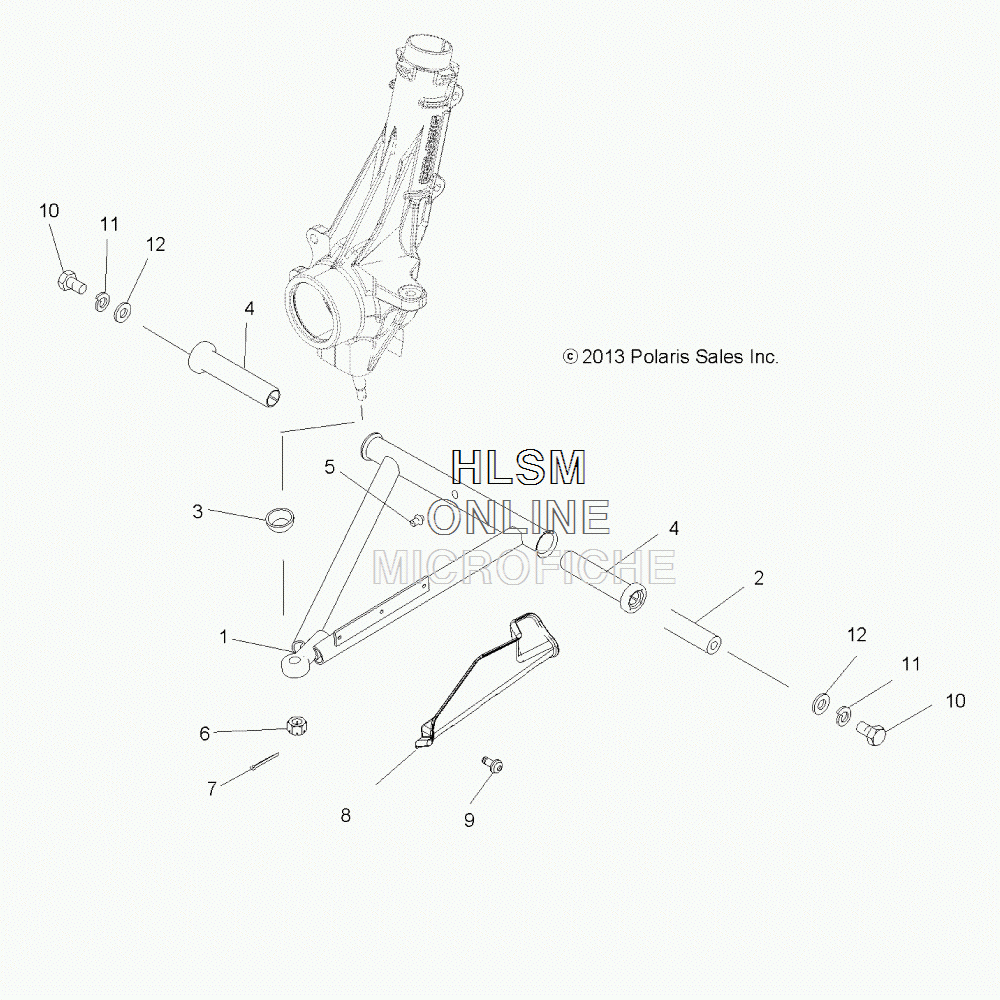

SUSPENSION - A-ARM/STRUT - MOUNTING для Polaris SPORTSMAN ACE 325 EURO (WHITE LIGHTNING) [A15DAA32EJ] - 2015 года выпуска`
-
№АртикулНазвание
-
12202906 KIT, A-FRAME, LEFT HAND (INCL. 1,2,4,7,10,11,12)KIT, A-FRAME, LEFT HAND (INCL. 1,2,4,7,10,11,12)
-
12202907 KIT, A-FRAME, RIGHT HAND (INCL. 1,2,4,7,10,11,12)KIT, A-FRAME, RIGHT HAND (INCL. 1,2,4,7,10,11,12)
-
25133806 SHAFT, A-ARMSHAFT, A-ARM
-
35412658 BOOT, BALL JOINT, GREASELESSBOOT, BALL JOINT, GREASELESS
-
45436973 BUSHING, A-ARM, LONGBUSHING, A-ARM, LONG
-
57080433 FITTING, LUBRICATIONFITTING, LUBRICATION
-
67542438 NUT, CASTLENUT, CASTLE
-
77661203 PIN, COTTERPIN, COTTER
-
85450194-070 SHIELD, CV FRONT, BLACK, LEFT HANDSHIELD, CV FRONT, BLACK, LEFT HAND
-
85450195-070 SHIELD, CV FRONT, BLACK, RIGHT HANDSHIELD, CV FRONT, BLACK, RIGHT HAND
-
97512084 SCREWSCREW
-
107512492 SCREWSCREW
-
117552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
127555832 WASHERWASHER
