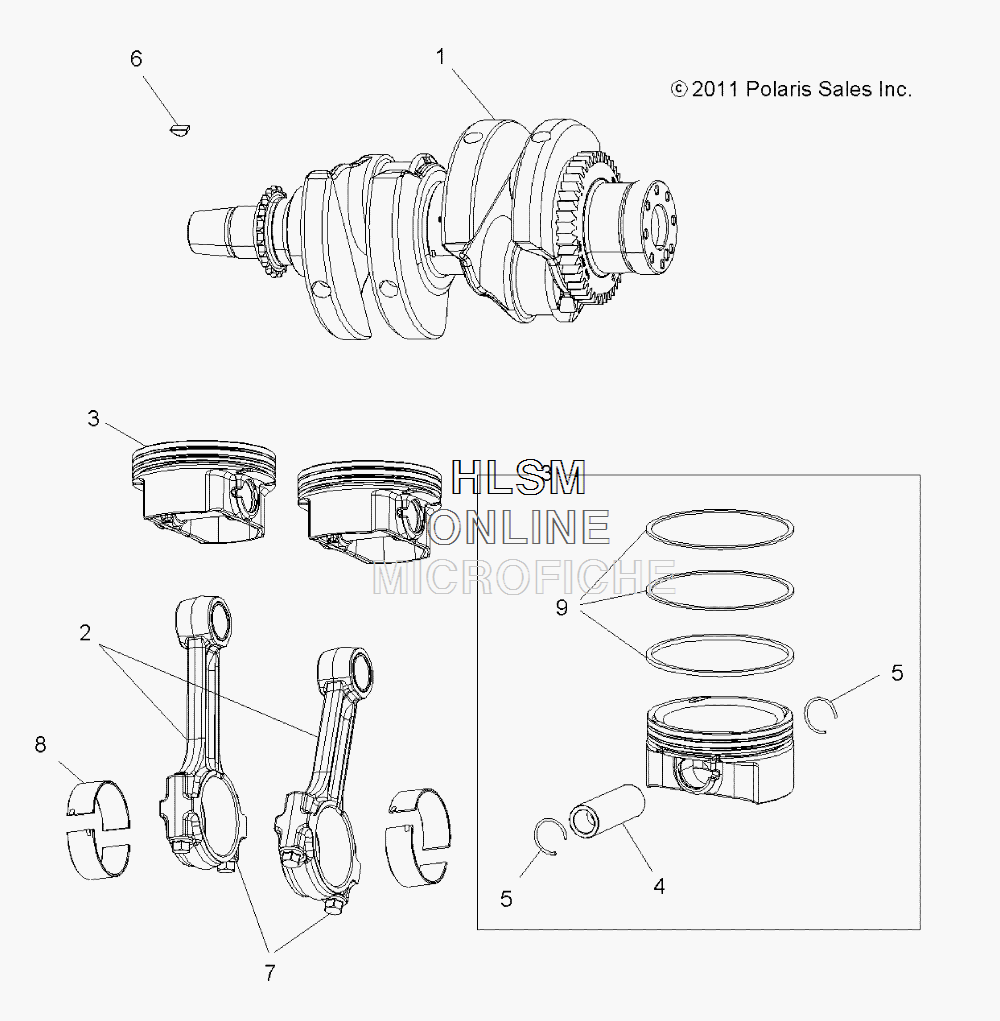

CRANKSHAFT W/ PISTONS для Polaris SPORTSMAN 850 SP (TITANIUM MATTE METALLIC) [A15SXE85AM] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    2205283 KIT, CRANKSHAFT (INCL. 4, CRANK, MAIN BEARINGS) (BUILT 1/6/15 AND AFTER)
    KIT, CRANKSHAFT (INCL. 4, CRANK, MAIN BEARINGS) (BUILT 1/6/15 AND AFTER)
  • 1
    2204233 KIT, CRANKSHAFT (INCL. 4, CRANK, MAIN BEARINGS) (BUILT 1/5/15 AND BEFORE)
    KIT, CRANKSHAFT (INCL. 4, CRANK, MAIN BEARINGS) (BUILT 1/5/15 AND BEFORE)
  • 2
    2204634 KIT, CONNECTING ROD (INCL. 7,8, ROD, CAP, BUSHING)
    KIT, CONNECTING ROD (INCL. 7,8, ROD, CAP, BUSHING)
  • 2
    7556569 BUSHING, PISTON PIN
    BUSHING, PISTON PIN
  • 3
    2204958 KIT, PISTON (INCL. PISTON, PIN, CLIPS, ALL RINGS)
    KIT, PISTON (INCL. PISTON, PIN, CLIPS, ALL RINGS)
  • 4
    3022345 PIN, PISTON
    PIN, PISTON
  • 5
    3022223 CIRCLIP, PISTON PIN
    CIRCLIP, PISTON PIN
  • 6
    7721122 KEY, WOODRUFF
    KEY, WOODRUFF
  • 7
    7519263 BOLT
    BOLT
  • 8
    3514645 BEARING, CONNECTING ROD
    BEARING, CONNECTING ROD
  • 8
    3514645-015 BEARING, CONNECTING ROD, RED
    BEARING, CONNECTING ROD, RED
  • 8
    3514645-016 BEARING, CONNECTING ROD, WHITE
    BEARING, CONNECTING ROD, WHITE
  • 8
    3514645-027 BEARING, CONNECTING ROD, BLUE
    BEARING, CONNECTING ROD, BLUE
  • 8
    3514645-053 BEARING, CONNECTING ROD, YELLOW
    BEARING, CONNECTING ROD, YELLOW
  • 9
    2204959 KIT, PISTON RINGS (CONTAINS UPPER, LOWER, OIL CONTROL RING)
    KIT, PISTON RINGS (CONTAINS UPPER, LOWER, OIL CONTROL RING)
