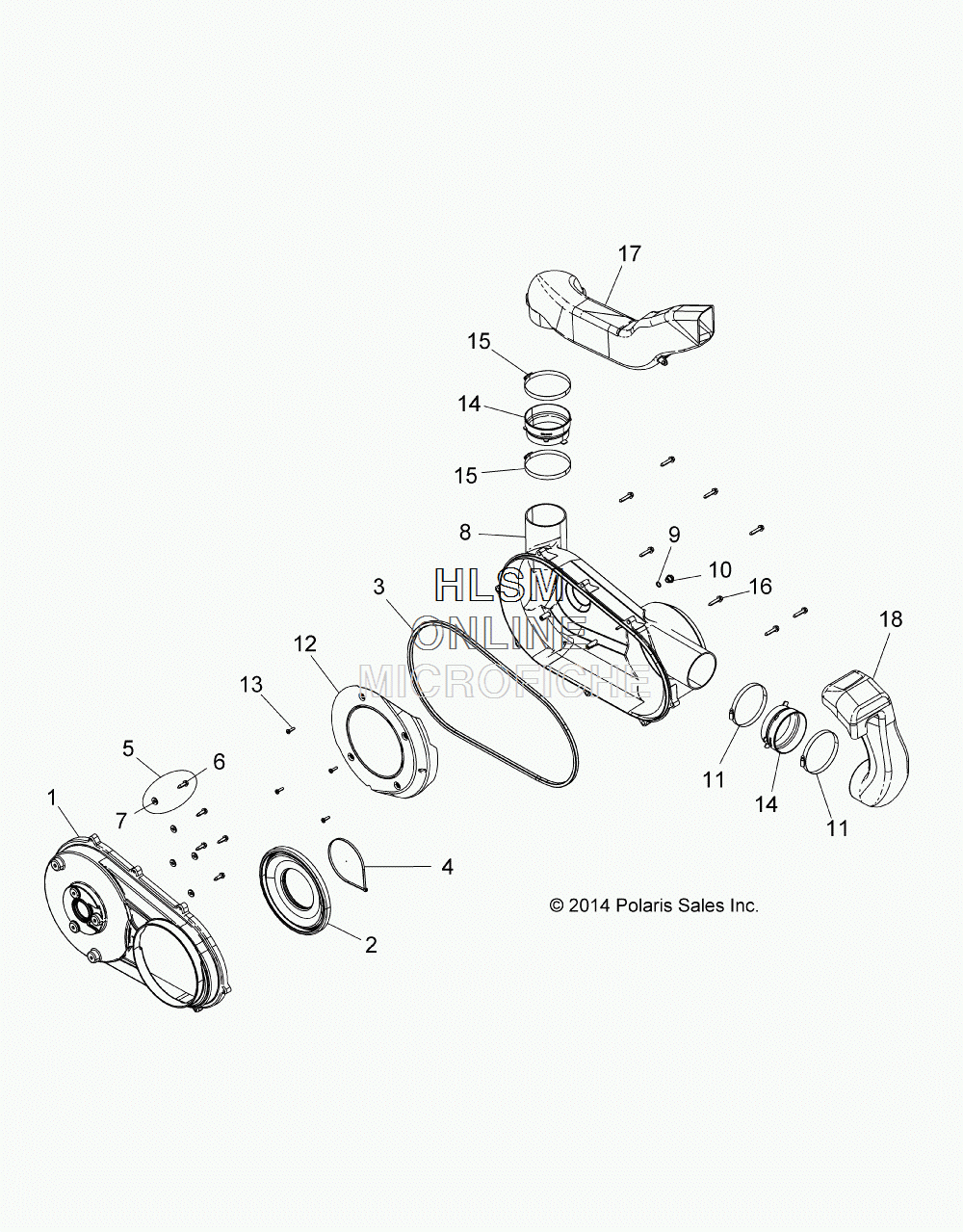

CLUTCH COVER для Polaris SPORTSMAN 570 SP (TITANIUM MATTE METALLIC) [A15SHE57AM] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    2634896 ASM., CLUTCH COVER, INNER (INCL. COVER,2,3)
    ASM., CLUTCH COVER, INNER (INCL. COVER,2,3)
  • 2
    5414727 SEAL, CLUTCH COVER, INNER
    SEAL, CLUTCH COVER, INNER
  • 3
    5521738 SEAL, CLUTCH COVER, OUTER
    SEAL, CLUTCH COVER, OUTER
  • 4
    7080761 CABLE TIE
    CABLE TIE
  • 5
    7517599 ASM., BOLT/WASHER
    ASM., BOLT/WASHER
  • 6
    7517312 SCREW
    SCREW
  • 7
    7555748 WASHER
    WASHER
  • 8
    2634897 ASM., CLUTCH COVER, OUTER (INCL. COVER,PLUG,O-RING,12,13)
    ASM., CLUTCH COVER, OUTER (INCL. COVER,PLUG,O-RING,12,13)
  • 9
    5410542 O-RING
    O-RING
  • 10
    5434264 PLUG, DRAIN, CLUTCH COVER
    PLUG, DRAIN, CLUTCH COVER
  • 11
    7081626 CLAMP, WORM DRIVE
    CLAMP, WORM DRIVE
  • 12
    5450420 COVER, CLUTCH, INTAKE, BAFFLE
    COVER, CLUTCH, INTAKE, BAFFLE
  • 13
    7512026 SCREW
    SCREW
  • 14
    5414768 BOOT, DUCT, CLUTCH
    BOOT, DUCT, CLUTCH
  • 15
    7081626 CLAMP, WORM DRIVE
    CLAMP, WORM DRIVE
  • 16
    7519849 SCREW
    SCREW
  • 17
    5451155 DUCT, CLUTCH AIR INLET
    DUCT, CLUTCH AIR INLET
  • 18
    5450546 DUCT, CLUTCH OUTLET
    DUCT, CLUTCH OUTLET
