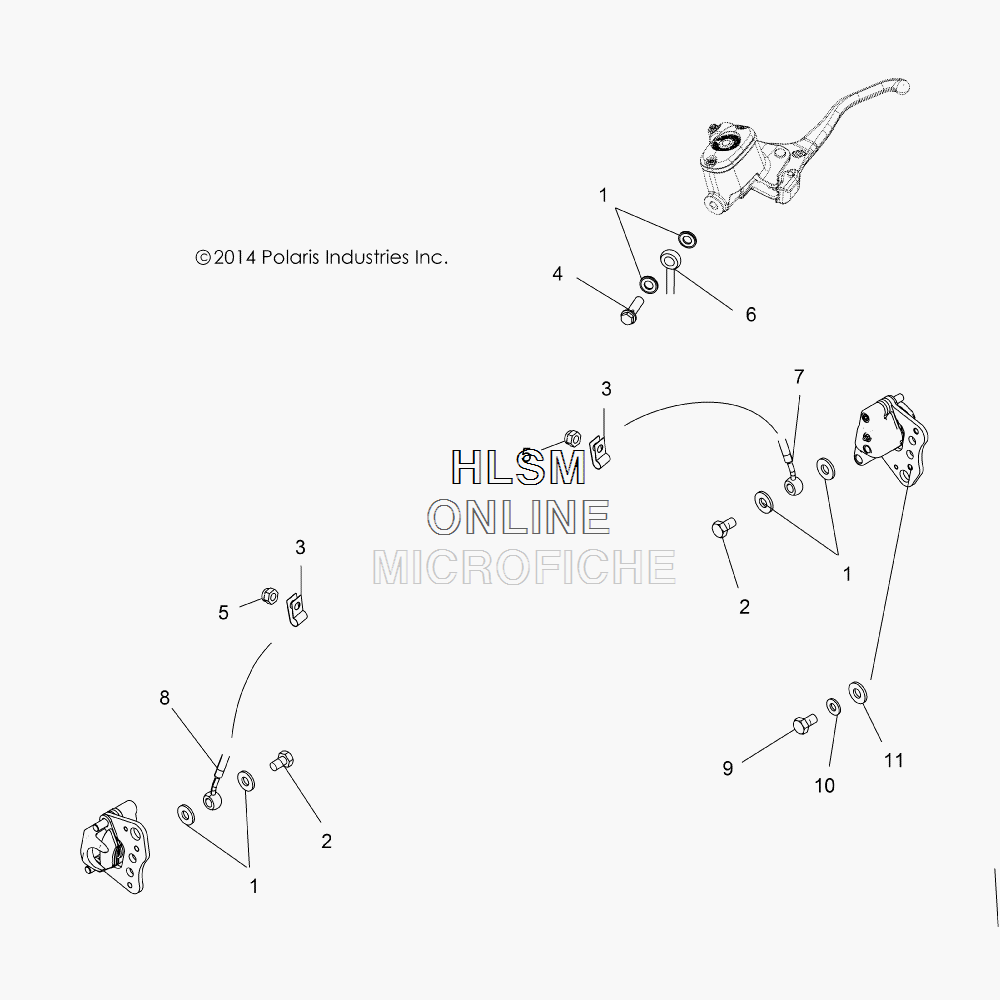

BRAKE - FRONT BRAKE LINES для Polaris SPORTSMAN 570 SP EPS, QUAD (SUNSET RED) [A15SHC57CS] - 2015 года выпуска
-
№АртикулНазвание
-
15413212 SEALSEAL
-
21910499 BOLT, BANJOBOLT, BANJO
-
37082067 CLIP, P, W/CUSHION, BLACK, VINYLCLIP, P, W/CUSHION, BLACK, VINYL
-
41910958 BOLT, BANJOBOLT, BANJO
-
57547025 NUT, NYLOCKNUT, NYLOCK
-
61912207 LINE, BRAKELINE, BRAKE
-
71912489 LINE, BRAKE, FRONT, LEFT HANDLINE, BRAKE, FRONT, LEFT HAND
-
81912488 LINE, BRAKE, FRONT, RIGHT HANDLINE, BRAKE, FRONT, RIGHT HAND
-
97512365 SCREW (FRONT CALIPER MOUNTING)SCREW (FRONT CALIPER MOUNTING)
-
107552901 WASHER, SPRING LOCK (FRONT CALIPER MOUNTING)WASHER, SPRING LOCK (FRONT CALIPER MOUNTING)
-
117558402 WASHER, FLAT (FRONT CALIPER MOUNTING)WASHER, FLAT (FRONT CALIPER MOUNTING)
