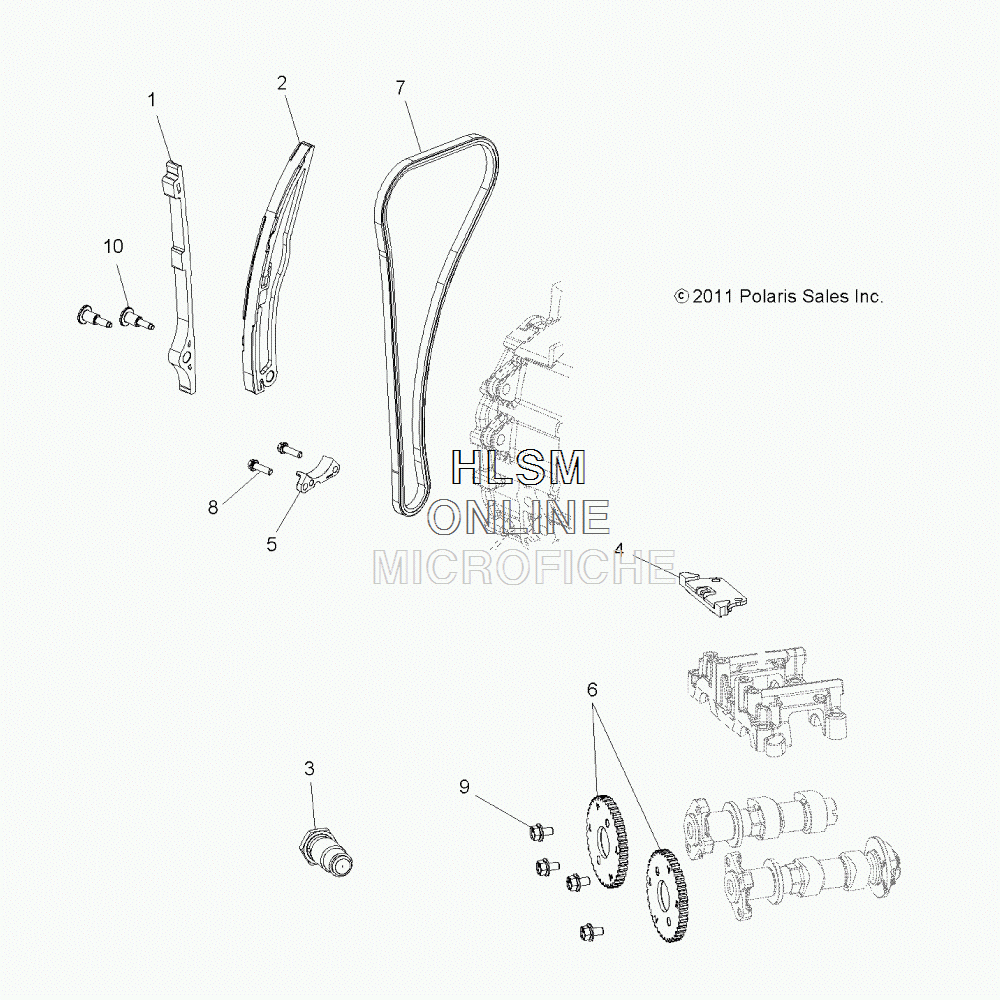

CAM CHAIN W/ SPROCKET для Polaris SPORTSMAN 570 EPS SAGE GREEN [A15SEE57AA] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3022150 GUIDE, CAMCHAIN, FIXED
    GUIDE, CAMCHAIN, FIXED
  • 2
    3022151 GUIDE, CAMCHAIN, TENSIONER
    GUIDE, CAMCHAIN, TENSIONER
  • 3
    3022152 TENSIONER, CAMCHAIN (INCL. TENSIONER GASKET)
    TENSIONER, CAMCHAIN (INCL. TENSIONER GASKET)
  • 3
    5813449 GASKET, TENSIONER
    GASKET, TENSIONER
  • 4
    3022153 GUIDE, CAMCHAIN, FIXED, COVER
    GUIDE, CAMCHAIN, FIXED, COVER
  • 5
    3022339 GUIDE, CAM DRIVE, LOWER
    GUIDE, CAM DRIVE, LOWER
  • 6
    3222189 SPROCKET, CAM, DRIVEN
    SPROCKET, CAM, DRIVEN
  • 7
    3222196 CHAIN, CAMSHAFT
    CHAIN, CAMSHAFT
  • 8
    7518576 SCREW
    SCREW
  • 9
    7519164 SCREW
    SCREW
  • 10
    7519165 BOLT, SHOULDER
    BOLT, SHOULDER
