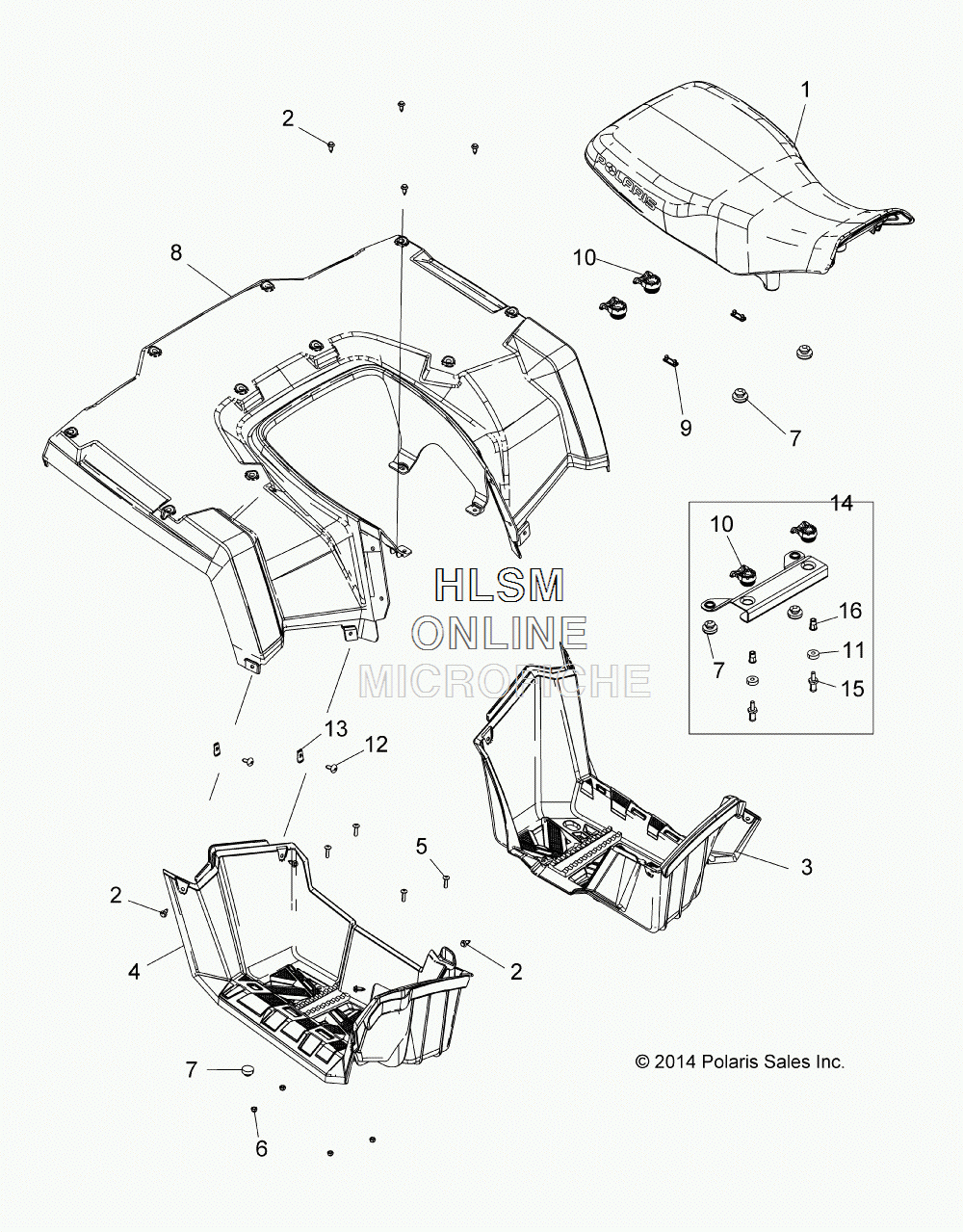

CAB - REAR - SEAT W/FOOTWELLS для Polaris SPORTSMAN 570 EFI/EPS FOREST TRACTOR SAGE BRUSH GREEN METALLIC [A15SES57CA] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    2685519-070 ASM., SEAT, BLACK (INCL. 7,9)
    ASM., SEAT, BLACK (INCL. 7,9)
  • 1
    2685520 ASM., COVER, SEAT W/WHITE DECAL
    ASM., COVER, SEAT W/WHITE DECAL
  • 2
    7661855 RIVET
    RIVET
  • 3
    5450523-070 FOOTWELL, BLACK, LEFT HAND
    FOOTWELL, BLACK, LEFT HAND
  • 4
    5450524-070 FOOTWELL, BLACK, RIGHT HAND
    FOOTWELL, BLACK, RIGHT HAND
  • 5
    7517230 SCREW
    SCREW
  • 6
    7542122 NUT, NYLOK
    NUT, NYLOK
  • 7
    5412067 BUMPER, RUBBER
    BUMPER, RUBBER
  • 8
    5450525-498 CAB, REAR, SAGE BRUSH GREEN METALLIC (CA) (SCA)
    CAB, REAR, SAGE BRUSH GREEN METALLIC (CA) (SCA)
  • 9
    5412982 BUMPER, SEAT
    BUMPER, SEAT
  • 10
    5413691 GROMMET, SEAT LATCH
    GROMMET, SEAT LATCH
  • 11
    7555932 WASHER
    WASHER
  • 12
    7518280 SCREW
    SCREW
  • 13
    7670145 NUT, U-TYPE
    NUT, U-TYPE
  • 14
    1020423 ASM., ADJUSTMENT, SEAT
    ASM., ADJUSTMENT, SEAT
  • 15
    5910306 PIN, SEAT LATCH
    PIN, SEAT LATCH
  • 16
    7547069 NUTSERT
    NUTSERT
