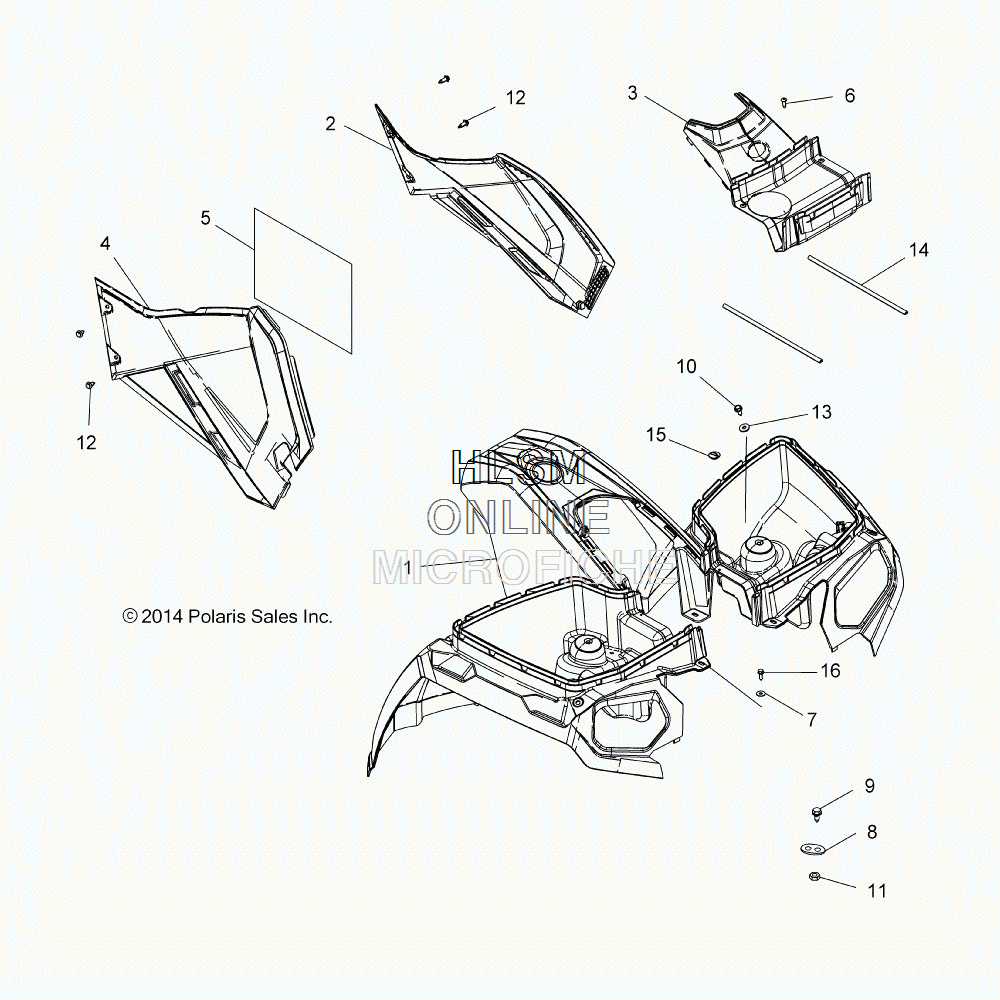

CAB - FRONT W/ SIDE PANELS для Polaris SPORTSMAN 570 EFI X2 EPS EUROPE [A15SWE57FA] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    2635508-498 ASM., CAB, FRONT, SAGE BRUSH GREEN METALLIC (INCL. WARNING DECALS)
    ASM., CAB, FRONT, SAGE BRUSH GREEN METALLIC (INCL. WARNING DECALS)
  • 2
    5450521-498 PANEL, SIDE, LEFT HAND, SAGE BRUSH GREEN METALLIC
    PANEL, SIDE, LEFT HAND, SAGE BRUSH GREEN METALLIC
  • 3
    5439069-498 COVER, FRONT, SAGE BRUSH GREEN METALLIC
    COVER, FRONT, SAGE BRUSH GREEN METALLIC
  • 4
    2635299-498 ASM., PANEL/FOIL, RIGHT HAND, SAGE BRUSH GREEN METALLIC (INCL. 5)
    ASM., PANEL/FOIL, RIGHT HAND, SAGE BRUSH GREEN METALLIC (INCL. 5)
  • 5
    5814020 FOIL, SIDE PANEL
    FOIL, SIDE PANEL
  • 6
    7519045 SCREW
    SCREW
  • 7
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 8
    5258497 BRACKET, PLUG MOUNT
    BRACKET, PLUG MOUNT
  • 9
    7512193 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 10
    7515399 SCREW
    SCREW
  • 11
    7542153 NUT, FLANGED, NYLOK
    NUT, FLANGED, NYLOK
  • 12
    7661855 RIVET
    RIVET
  • 13
    7555960 WASHER, FLAT
    WASHER, FLAT
  • 14
    5521697-350 SEAL, BULB
    SEAL, BULB
  • 15
    5412981 PLUG, COMPARTMENT
    PLUG, COMPARTMENT
  • 16
    7512232 SCREW
    SCREW
