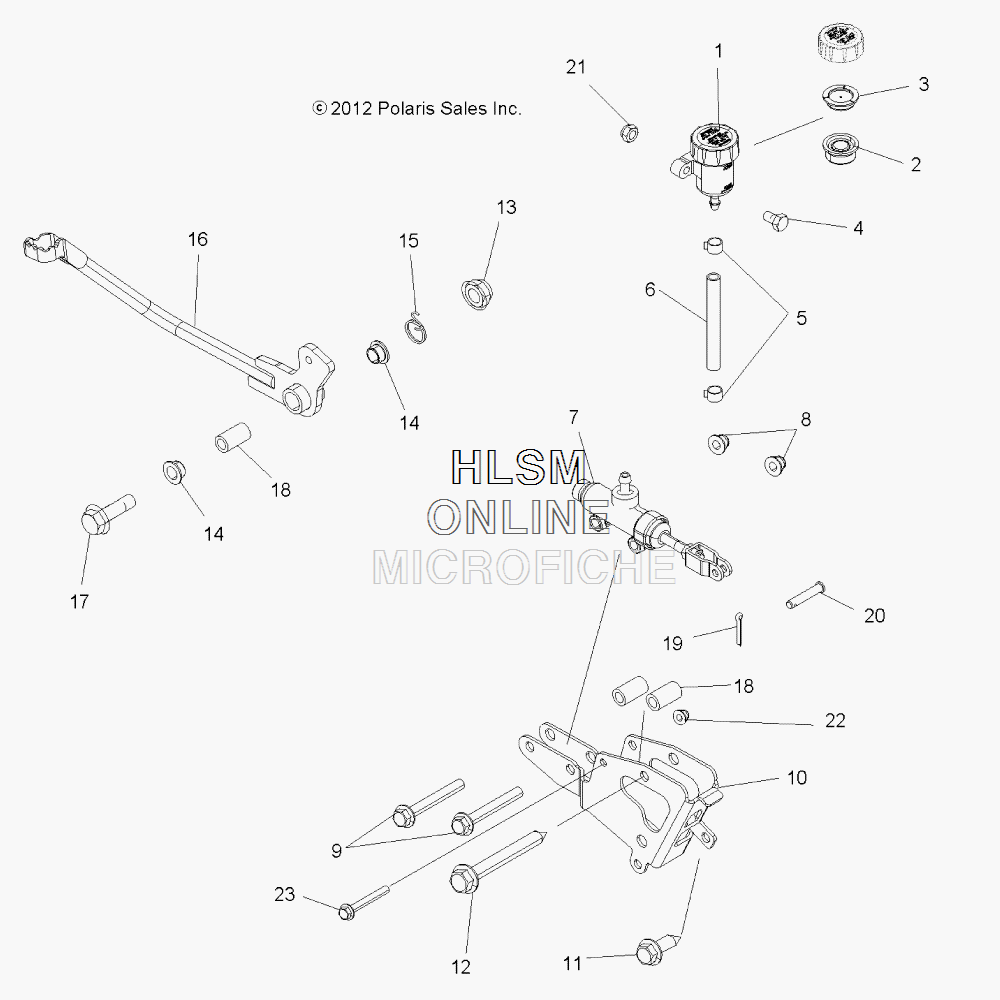

BRAKE - PEDAL W/MASTER CYLINDER для Polaris SCRAMBLER 1000 XP EU (WHITE LIGHTNING) [A15SVE95FW] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    1911224 ASM., RESERVOIR, BRAKE, REAR (INCL. 2,3, CAP)
    ASM., RESERVOIR, BRAKE, REAR (INCL. 2,3, CAP)
  • 2
    5413262 DIAPHRAGM, BRAKE RESERVOIR
    DIAPHRAGM, BRAKE RESERVOIR
  • 3
    5437041 RING, BRAKE RESERVOIR
    RING, BRAKE RESERVOIR
  • 4
    7518533 BOLT
    BOLT
  • 5
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 6
    1911267-826 HOSE, RESERVOIR, BRAKE
    HOSE, RESERVOIR, BRAKE
  • 7
    1911551 ASM., MASTER CYLINDER FOOT
    ASM., MASTER CYLINDER FOOT
  • 8
    7547317 NUT, FLANGE
    NUT, FLANGE
  • 9
    7516732 SCREW, FLANGE
    SCREW, FLANGE
  • 10
    5253114 BRACKET, MOUNT, BRAKE, INT'L
    BRACKET, MOUNT, BRAKE, INT'L
  • 11
    7518555 BOLT, FLANGE
    BOLT, FLANGE
  • 12
    7518677 BOLT
    BOLT
  • 13
    7547333 NUT, FLANGE
    NUT, FLANGE
  • 14
    5433189 BUSHING, PIVOT, PEDAL
    BUSHING, PIVOT, PEDAL
  • 15
    7041750 SPRING, TORSION, BRAKE
    SPRING, TORSION, BRAKE
  • 16
    1911722-067 LEVER, BRAKE, BLACK
    LEVER, BRAKE, BLACK
  • 17
    7518559 BOLT
    BOLT
  • 18
    5135720 SPACER
    SPACER
  • 19
    7661900 PIN, COTTER
    PIN, COTTER
  • 20
    7661830 PIN, CLEVIS
    PIN, CLEVIS
  • 21
    7546703 NUT, NYLOK
    NUT, NYLOK
  • 22
    7547274 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 23
    7517950 SCREW
    SCREW
