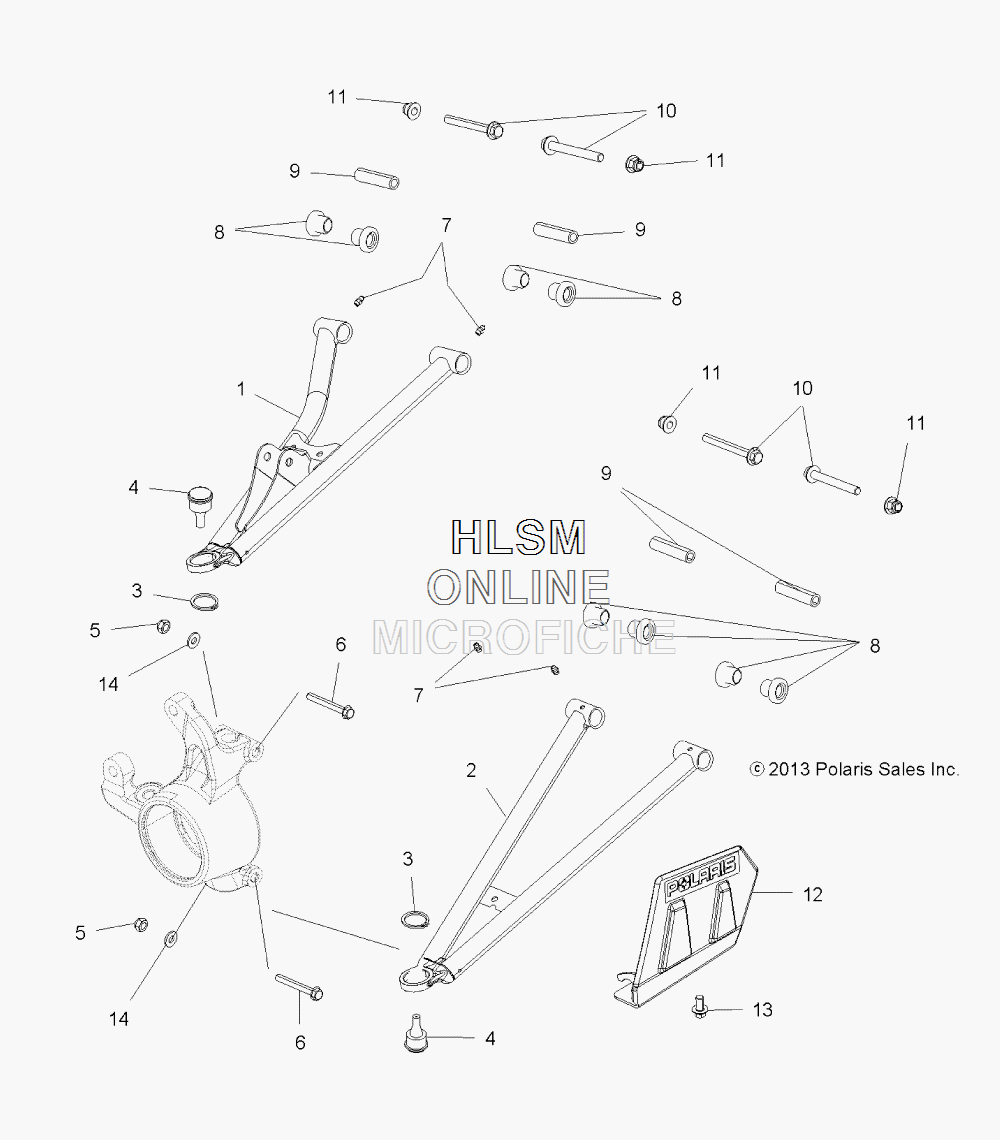

A-ARMS - FRONT для Polaris SCRAMBLER 1000 MD [A15SVE95HW] - 2015 года выпуска`
-
№АртикулНазвание
-
11019808-293 ARM, CONTROL, UPPER, FRONT, LEFT HAND, INDY REDARM, CONTROL, UPPER, FRONT, LEFT HAND, INDY RED
-
11019809-293 ARM, CONTROL, UPPER, FRONT, RIGHT HAND, INDY REDARM, CONTROL, UPPER, FRONT, RIGHT HAND, INDY RED
-
21019810-293 ARM, CONTROL, LOWER, FRONT, LEFT HAND, INDY REDARM, CONTROL, LOWER, FRONT, LEFT HAND, INDY RED
-
21019811-293 ARM, CONTROL, LOWER, FRONT, RIGHT HAND, INDY REDARM, CONTROL, LOWER, FRONT, RIGHT HAND, INDY RED
-
37710533 RING, RETAININGRING, RETAINING
-
47061220 JOINT, BALLJOINT, BALL
-
57547405 NUT, NYLOKNUT, NYLOK
-
67519212 SCREW, FLANGESCREW, FLANGE
-
77080433 FITTING, LUBRICATINGFITTING, LUBRICATING
-
81543367 ASM., BUSHING, HD, W/SEALASM., BUSHING, HD, W/SEAL
-
95137346 SHAFT, A-ARMSHAFT, A-ARM
-
107518466 BOLT, FLANGEBOLT, FLANGE
-
117547313 NUT, FLANGENUT, FLANGE
-
125436657-070 SHIELD, CV, FRONT, LEFT HAND, BLACKSHIELD, CV, FRONT, LEFT HAND, BLACK
-
125436658-070 SHIELD, CV, FRONT, RIGHT HAND, BLACKSHIELD, CV, FRONT, RIGHT HAND, BLACK
-
137518529 SCREWSCREW
-
147556557 WASHERWASHER
