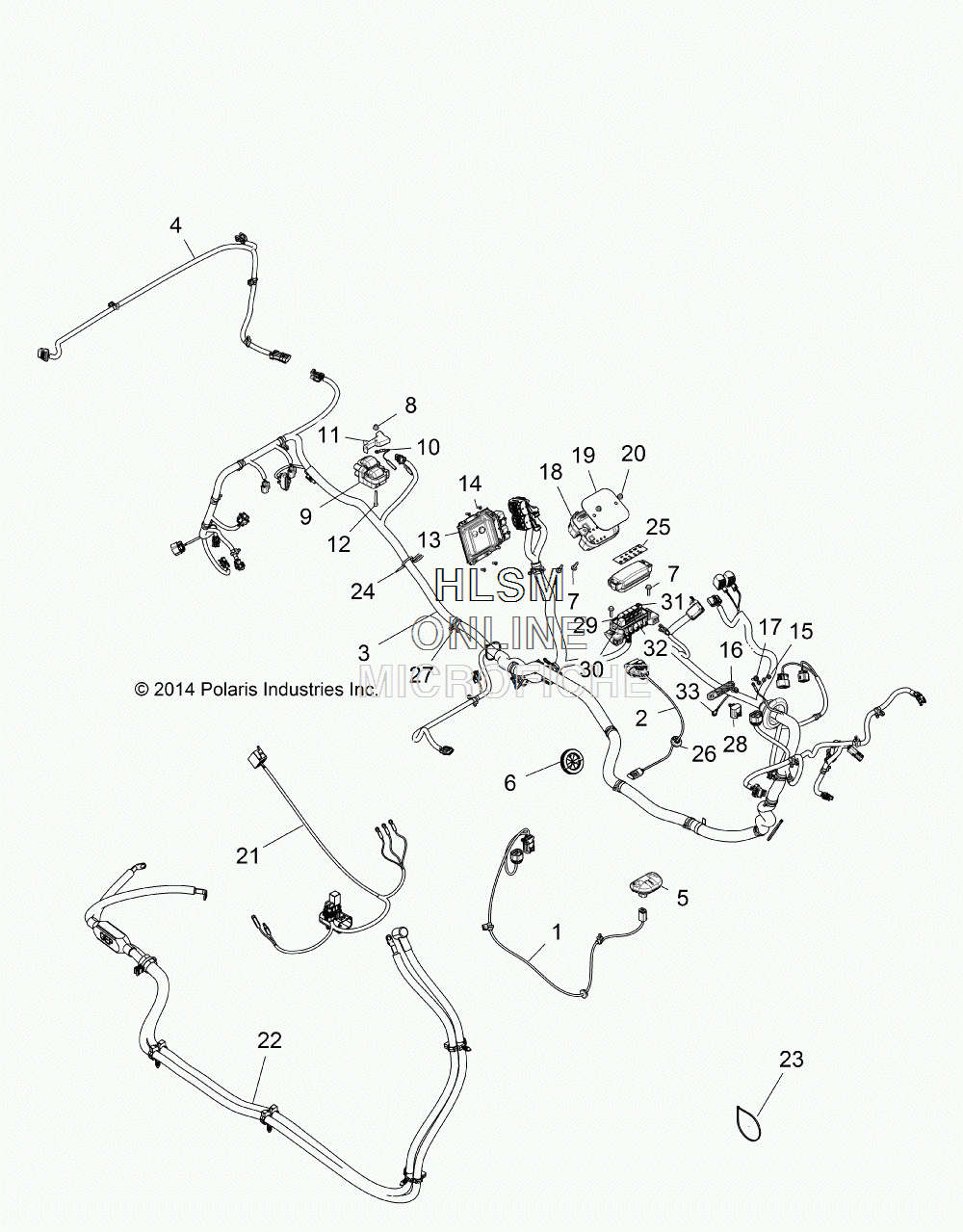

WIRE HARNESSES для Polaris RZR XP 1000 EPS PEARL BLACK [Z15VDK99AA] - 2015 года выпуска
-
№АртикулНазвание
-
12412817 HARNESS, GPS RECEIVERHARNESS, GPS RECEIVER
-
22412818 HARNESS, USBHARNESS, USB
-
32412849 HARNESS, CHASSIS, EPS (INCL. 24-33)HARNESS, CHASSIS, EPS (INCL. 24-33)
-
42412884 HARNESS, BOXHARNESS, BOX
-
54014811 GPS, ANTENNA, RECEIVER, CANGPS, ANTENNA, RECEIVER, CAN
-
65414440 GROMMET, ELECTRICAL, CABGROMMET, ELECTRICAL, CAB
-
77518533 BOLTBOLT
-
87547274 NUTNUT
-
94010425 COIL, EFICOIL, EFI
-
104014422 JUMPER, COIL GROUNDJUMPER, COIL GROUND
-
115436577 SPACER, COIL MOUNTSPACER, COIL MOUNT
-
127518780 SCREWSCREW
-
134014125 ECM, NO START, ME17ECM, NO START, ME17
-
147519091 SCREWSCREW
-
157547341 NUTS, KEPS, 10-32NUTS, KEPS, 10-32
-
164011892 BLOCK, TERMINAL, 3 POSTBLOCK, TERMINAL, 3 POST
-
177518196 SCREWSCREW
-
184014029 REGULATOR, 3PH, 50A, SERIESREGULATOR, 3PH, 50A, SERIES
-
195254970 PLATE, HEAT SINK, REGULATORPLATE, HEAT SINK, REGULATOR
-
207547339 NUT, M6NUT, M6
-
212412608 HARNESS, DASH LIGHTHARNESS, DASH LIGHT
-
224015217 CABLE, ACCY, BATTERY TO TERMINAL BLOCKCABLE, ACCY, BATTERY TO TERMINAL BLOCK
-
237080761 STRAP, PANDUITSTRAP, PANDUIT
-
247081916 CLIP, DOUBLE CABLE TIECLIP, DOUBLE CABLE TIE
-
257180884 LABEL, FUSE BOXLABEL, FUSE BOX
-
267082020 CLIP, ROUTING, DIN BOXCLIP, ROUTING, DIN BOX
-
277081496 CLIP, ROUTINGCLIP, ROUTING
-
284012170 COVER, DIAGNOSTIC W/CLIPCOVER, DIAGNOSTIC W/CLIP
-
294011372 BREAKER, CIRCUIT, 20 AMPBREAKER, CIRCUIT, 20 AMP
-
304011283 RELAY, SPSTRELAY, SPST
-
312434017 FUSE, PARK, 20 AMPFUSE, PARK, 20 AMP
-
322434016 FUSE, IGNITIOIN, 10 AMPFUSE, IGNITIOIN, 10 AMP
-
332412443 LED, PANEL, MOUNTLED, PANEL, MOUNT
