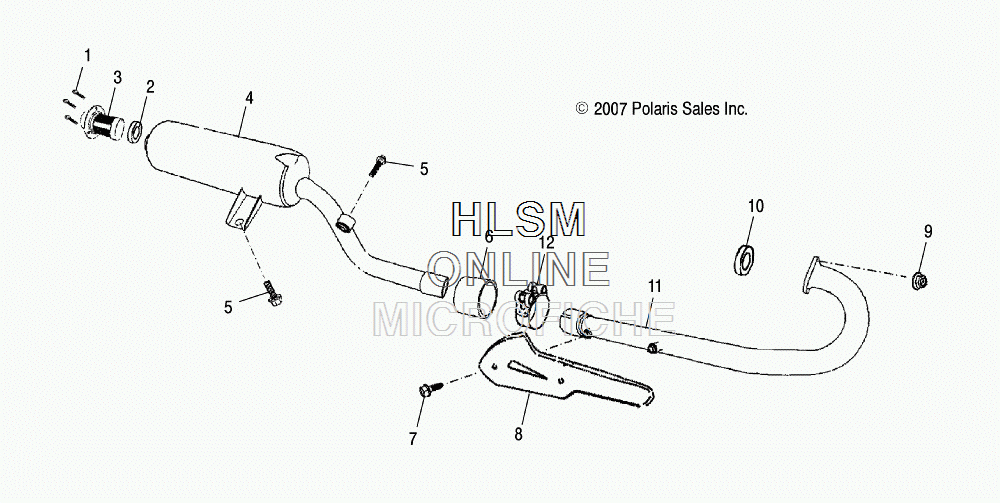

EXHAUST SYSTEM для Polaris PHOENIX 200 VOODOO BLUE [A15YAP20AF] - 2015 года выпуска`
-
№АртикулНазвание
-
10453130 BOLT, HEXBOLT, HEX
-
20453132 GASKET, EXHAUSTGASKET, EXHAUST
-
30452317 ARRESTER, SPARKARRESTER, SPARK
-
40455077 SILENCER, EXHAUSTSILENCER, EXHAUST
-
50452031 BOLTBOLT
-
60452584 COLLARCOLLAR
-
70452586 BOLTBOLT
-
80452583-067 SHIELD, HEADPIPE, BLACKSHIELD, HEADPIPE, BLACK
-
90450268 NUTNUT
-
100453761 GASKET, EXHAUSTGASKET, EXHAUST
-
110452308 PIPE, EXHAUST, FRONTPIPE, EXHAUST, FRONT
-
120453992 CLAMPCLAMP
Все узлы модели:
- AIR INTAKE SYSTEM
- AXLE - REAR
- BRAKE - FRONT
- BRAKE - REAR
- BUMPER - FRONT
- CAB - SEAT
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CRANKCASE
- CRANKCASE COVER - LEFT
- CRANKCASE COVER - RIGHT
- CRANKSHAFT W/ CYLINDER
- CYLINDER HEAD
- DECALS
- DRIVE - REAR
- ELECTRICAL COMPONENTS
- • EXHAUST SYSTEM
- FRAME
- FRONT WHEELS
- FUEL TANK
- HANDLEBAR
- HEADLIGHT / BRAKELIGHT
- MANUAL - OWNERS
- REAR WHEELS
- STARTING MOTOR /W GENERATOR
- STEERING POST W/TIE RODS
- SUSPENSION - A-ARM W/FOOTREST
- SUSPENSION - SHOCKS
- SUSPENSION - SWING ARM W/ REAR SHOCK ASSY
- TRANSMISSION - DRIVE CHAIN
