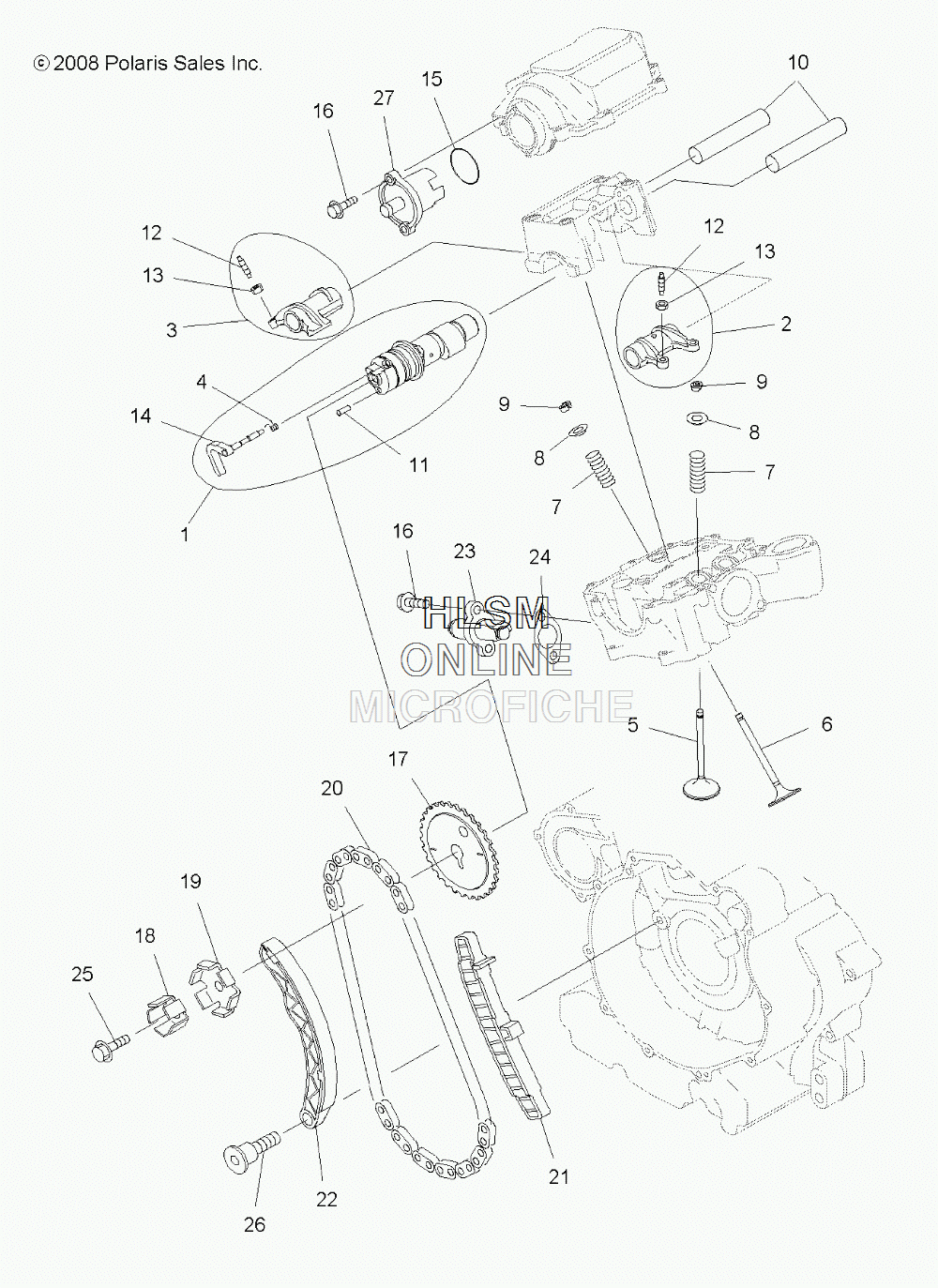

CAMSHAFT W/ VALVE ASSY. для Polaris SPORTSMAN X2 550 INTL - SAGE BRUSH GREEN METALLIC [A14TN55FA] - 2014 года выпуска`
-
№АртикулНазвание
-
13090115 ASM., CAMSHAFT (INCL. CAM, 4,11,14)ASM., CAMSHAFT (INCL. CAM, 4,11,14)
-
23090122 ARM, ROCKER, INTAKE (INCL. ARM, 12,13)ARM, ROCKER, INTAKE (INCL. ARM, 12,13)
-
33090125 ARM, ROCKER, EXHAUST (INCL. ARM, 12,13)ARM, ROCKER, EXHAUST (INCL. ARM, 12,13)
-
43090117 SPRING, RETURNSPRING, RETURN
-
53090118 VALVE, INTAKEVALVE, INTAKE
-
63090119 VALVE, EXHAUSTVALVE, EXHAUST
-
73090214 SPRING, VALVESPRING, VALVE
-
83087203 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
93084908 COLLET, VALVECOLLET, VALVE
-
103090215 SHAFT, ROCKERSHAFT, ROCKER
-
113084899 PIN, DOWELPIN, DOWEL
-
123090123 SCREW, ADJUSTINGSCREW, ADJUSTING
-
133090124 NUTNUT
-
143090116 LEVER, RELEASELEVER, RELEASE
-
153090131 O-RINGO-RING
-
163084877 BOLT, FLANGEBOLT, FLANGE
-
173090126 SPROCKET, CAMSPROCKET, CAM
-
183089975 PLATEPLATE
-
193090127 CAM, PULLEYCAM, PULLEY
-
203090128 CHAIN, TIMINGCHAIN, TIMING
-
213084916 GUIDE, CABINGUIDE, CABIN
-
223090129 LEVERLEVER
-
233086493 ASM. TENSIONERASM. TENSIONER
-
243086448 GASKETGASKET
-
253086449 BOLT, FLANGEBOLT, FLANGE
-
263088024 BOLT, PIVOTBOLT, PIVOT
-
273090130 COVER, CAMCOVER, CAM
