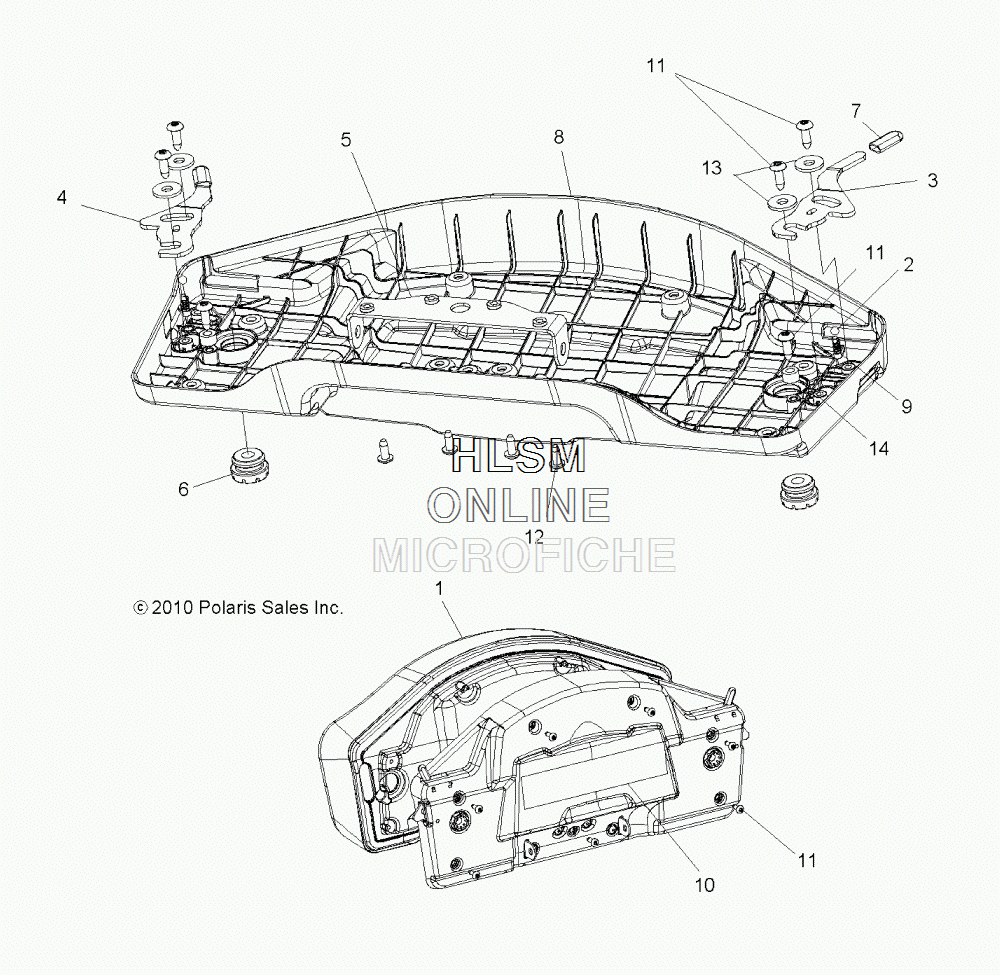

SEAT - PASSENGER- BOTTOM для Polaris SPORTSMAN X2 550 EPS LE UE (2014)[A14TN5EAI] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    2684903-070 ASM., SEAT, BLACK (INCL. 1-14)
    ASM., SEAT, BLACK (INCL. 1-14)
  • 1
    2684641-070 ASM., SEAT BUN, PASSENGER, BLACK
    ASM., SEAT BUN, PASSENGER, BLACK
  • 1
    2684606-070 COVERING, SEAT, BLACK
    COVERING, SEAT, BLACK
  • 2
    3514698 BEARING, BALL, DETENT
    BEARING, BALL, DETENT
  • 3
    5254314 BRACKET, LEVER, LEFT HAND
    BRACKET, LEVER, LEFT HAND
  • 4
    5254315 BRACKET, LEVER, RIGHT HAND
    BRACKET, LEVER, RIGHT HAND
  • 5
    5254316 BRACKET, SEAT PIVOT
    BRACKET, SEAT PIVOT
  • 6
    5412994 GROMMET. SEAT LATCH
    GROMMET. SEAT LATCH
  • 7
    5438230 CAP, VINYL
    CAP, VINYL
  • 8
    5438565 COVER, PASSENGER SEAT BOTTOM
    COVER, PASSENGER SEAT BOTTOM
  • 9
    7043668 SPRING, DETENT
    SPRING, DETENT
  • 10
    7173890 DECAL, WARNING, CONTAINER/PASSENGER
    DECAL, WARNING, CONTAINER/PASSENGER
  • 11
    7519045 SCREW
    SCREW
  • 12
    7519092 SCREW
    SCREW
  • 13
    7555960 WASHER, FLAT
    WASHER, FLAT
  • 14
    7556318 SPACER
    SPACER
