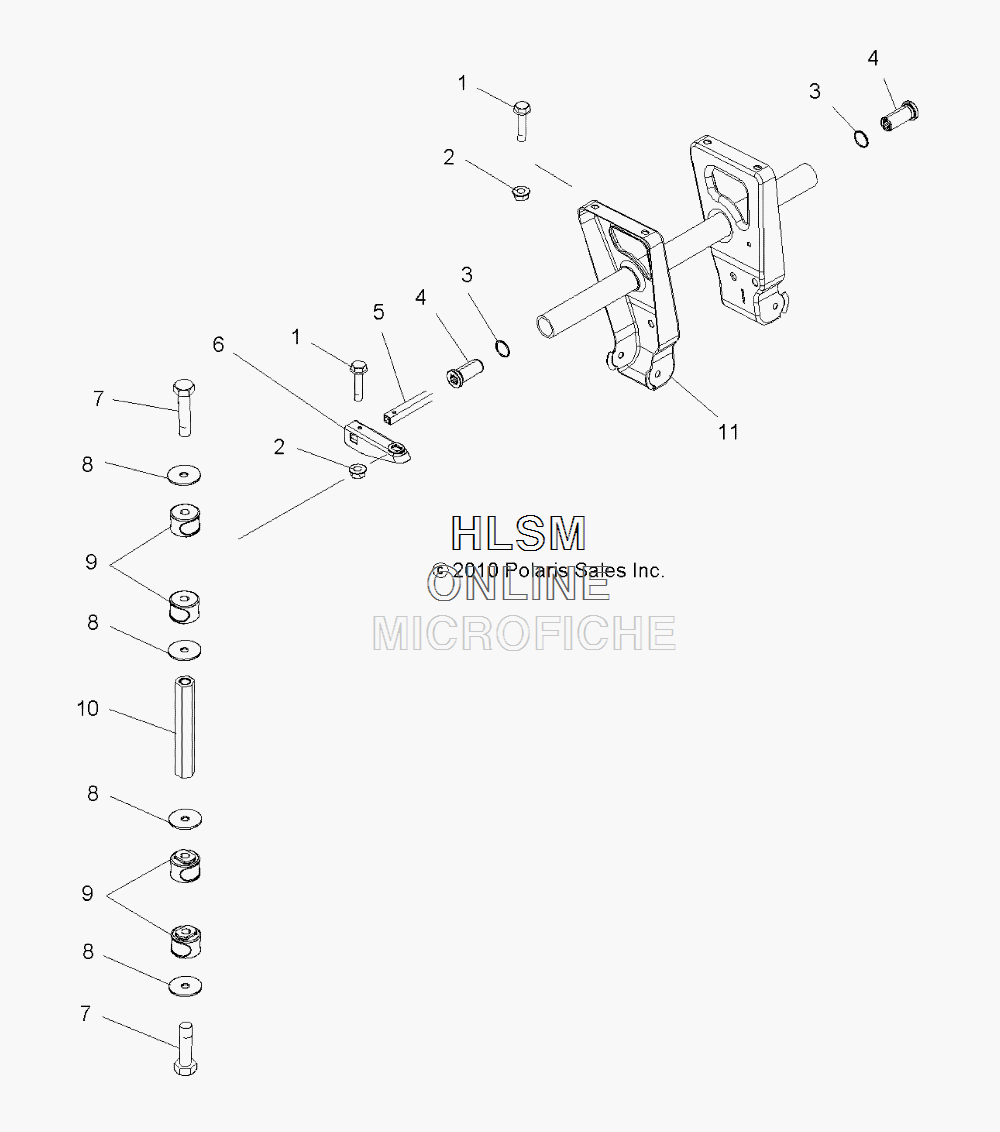

SUSPENSION - TORSION BAR [BUILT 10/03/13 AND BEFORE] для Polaris SPORTSMAN FOREST TRACTOR 500 - SAGE BRUSH GREEN METALLIC [A14MN50EA] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    7518341 BOLT, FLANGE
    BOLT, FLANGE
  • 2
    7542343 NUT, FLANGE
    NUT, FLANGE
  • 3
    7555939 WASHER
    WASHER
  • 4
    5438901 BUSHING, STABILIZER TUBE, BLACK
    BUSHING, STABILIZER TUBE, BLACK
  • 5
    5334114-067 BAR, STABILIZER TUBE, BLACK
    BAR, STABILIZER TUBE, BLACK
  • 6
    1543119-067 ARM, STABILIZER BAR, BLACK
    ARM, STABILIZER BAR, BLACK
  • 7
    7517231 SCREW
    SCREW
  • 8
    7555761 WASHER
    WASHER
  • 9
    5432598 BUSHING, STABILIZER
    BUSHING, STABILIZER
  • 10
    5020827 ROD, LINKAGE, STABILIZER
    ROD, LINKAGE, STABILIZER
  • 11
    1542848-067 SUPPORT, STABILIZER, BLACK
    SUPPORT, STABILIZER, BLACK
