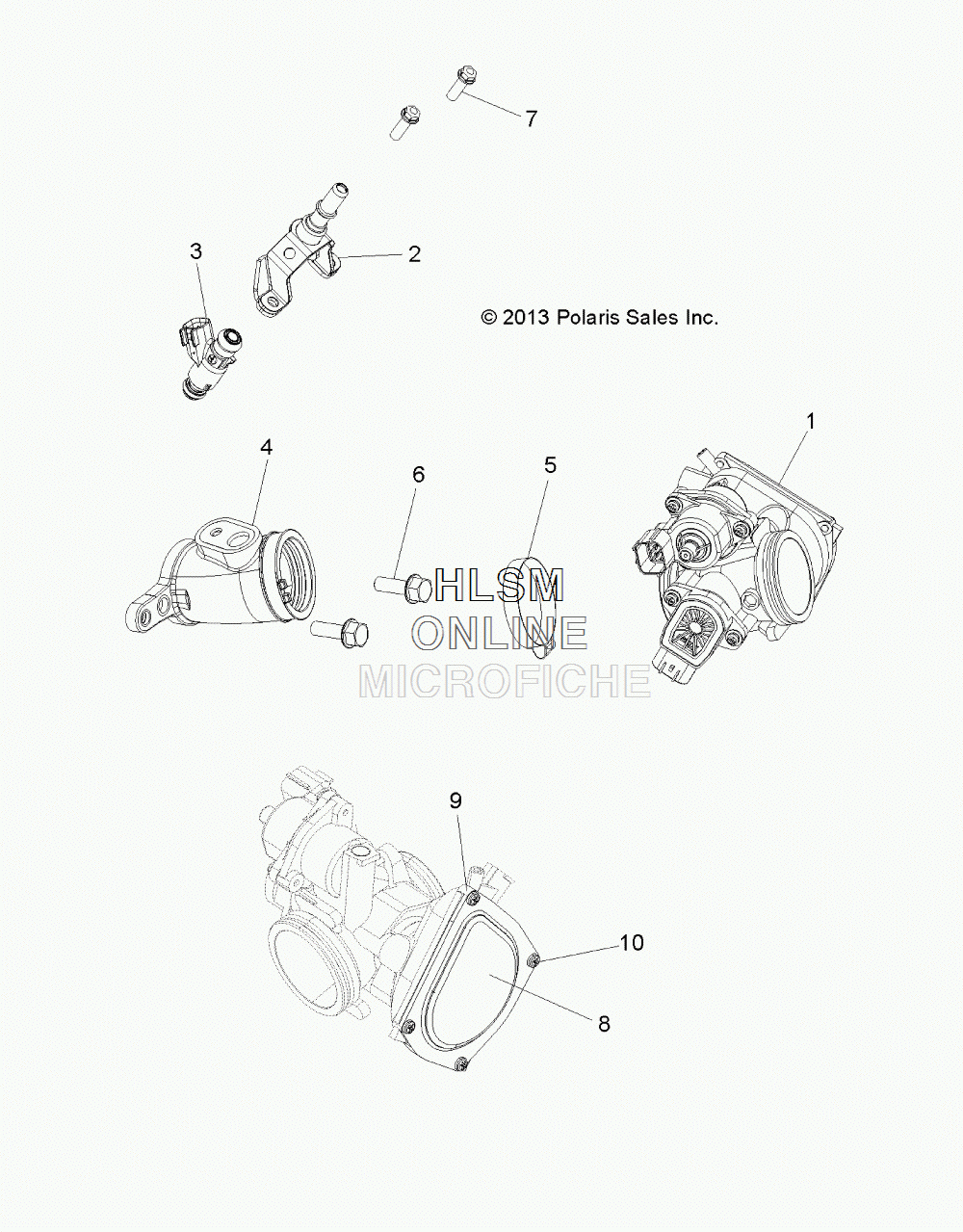

THROTTLE BODY W/ FUEL RAIL для Polaris SPORTSMAN ACE EUR (2014)[A14BH33FJ] - 2014 года выпуска`
-
№АртикулНазвание
-
11204572 ASM., THROTTLE BODYASM., THROTTLE BODY
-
22521224 RAIL, FUEL, 1 CYLINDERRAIL, FUEL, 1 CYLINDER
-
32521248 INJECT, FUELINJECT, FUEL
-
45414597 ADAPTERADAPTER
-
57080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
67516734 SCREWSCREW
-
77518576 SCREWSCREW
-
85253974 COVER, THROTTLE CAMCOVER, THROTTLE CAM
-
95413898 O-RING, THROTTLE CAM COVERO-RING, THROTTLE CAM COVER
-
103130592 SCREWSCREW
