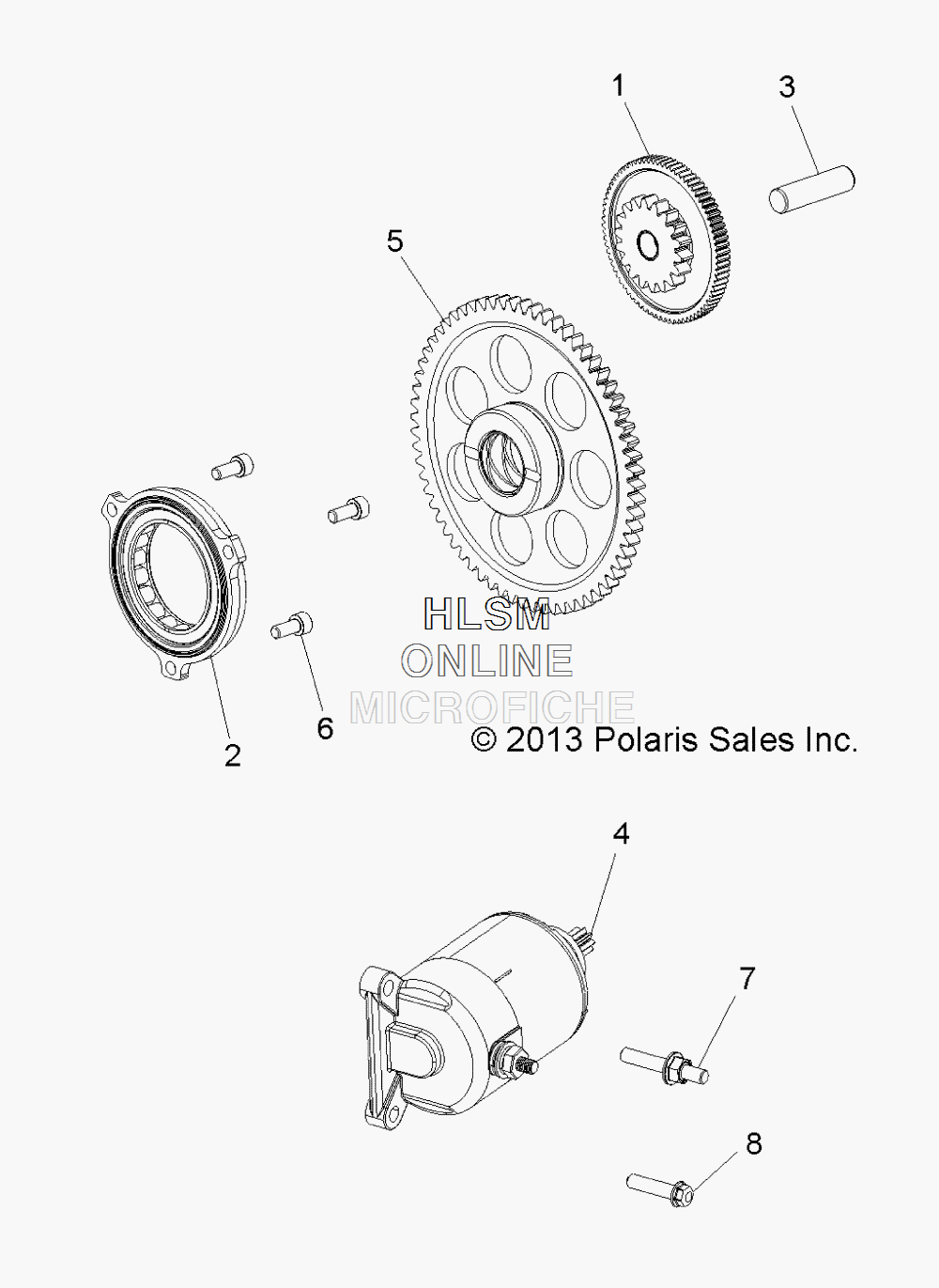

STARTING MOTOR для Polaris SPORTSMAN ACE EUR (2014)[A14BH33FJ] - 2014 года выпуска`
-
№АртикулНазвание
-
11204683 ASM., GEARASM., GEAR
-
21204884 ASM., SPRAG CLUTCH, HUBASM., SPRAG CLUTCH, HUB
-
33022500 PIN, SOLIDPIN, SOLID
-
44013428 STARTER, 1 CYLINDER (BUILT 1/16/14 AND BEFORE)STARTER, 1 CYLINDER (BUILT 1/16/14 AND BEFORE)
-
44014972 STARTER, 1 CYLINDER (BUILT 1/17/14 AND AFTER)STARTER, 1 CYLINDER (BUILT 1/17/14 AND AFTER)
-
56230561 GEAR, FREEWHEEL, 1 WAY CLUTCHGEAR, FREEWHEEL, 1 WAY CLUTCH
-
67517431 SCREWSCREW
-
77519237 STUD, DOUBLE, ENDSTUD, DOUBLE, END
-
87519754 SCREWSCREW
