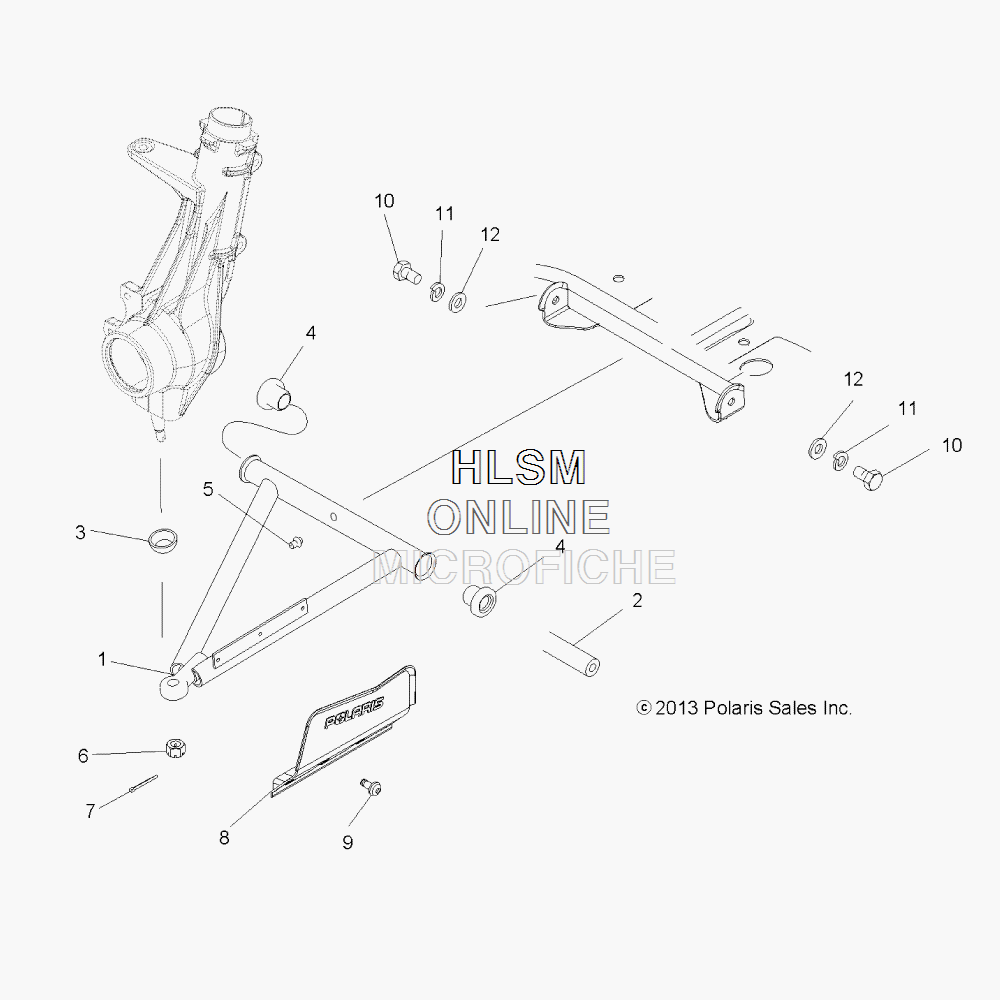

A-ARMS- MID DRIVE для Polaris SPORTSMAN 800 EFI FOREST - (INDY RED) [A14MH76FD] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    2202906 KIT, A-FRAME, LEFT HAND (INCL. 1,2,4,7,10,11,12)
    KIT, A-FRAME, LEFT HAND (INCL. 1,2,4,7,10,11,12)
  • 1
    2202907 KIT, A-FRAME, LEFT HAND (INCL. 1,2,4,7,10,11,12)
    KIT, A-FRAME, LEFT HAND (INCL. 1,2,4,7,10,11,12)
  • 2
    5133806 SHAFT, A-ARM
    SHAFT, A-ARM
  • 3
    5412658 BOOT, BALL JOINT, GREASELESS
    BOOT, BALL JOINT, GREASELESS
  • 4
    1543326 ASM., BUSHING W/SEAL
    ASM., BUSHING W/SEAL
  • 5
    7080433 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 6
    7542438 NUT, CASTLE
    NUT, CASTLE
  • 7
    7661203 PIN, COTTER
    PIN, COTTER
  • 8
    5435028-070 SHIELD, CV FRONT, BLACK, LEFT HAND
    SHIELD, CV FRONT, BLACK, LEFT HAND
  • 8
    5435029-070 SHIELD, CV FRONT, BLACK, RIGHT HAND
    SHIELD, CV FRONT, BLACK, RIGHT HAND
  • 9
    7512084 SCREW
    SCREW
  • 10
    7512492 SCREW
    SCREW
  • 11
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 12
    7555832 WASHER
    WASHER
