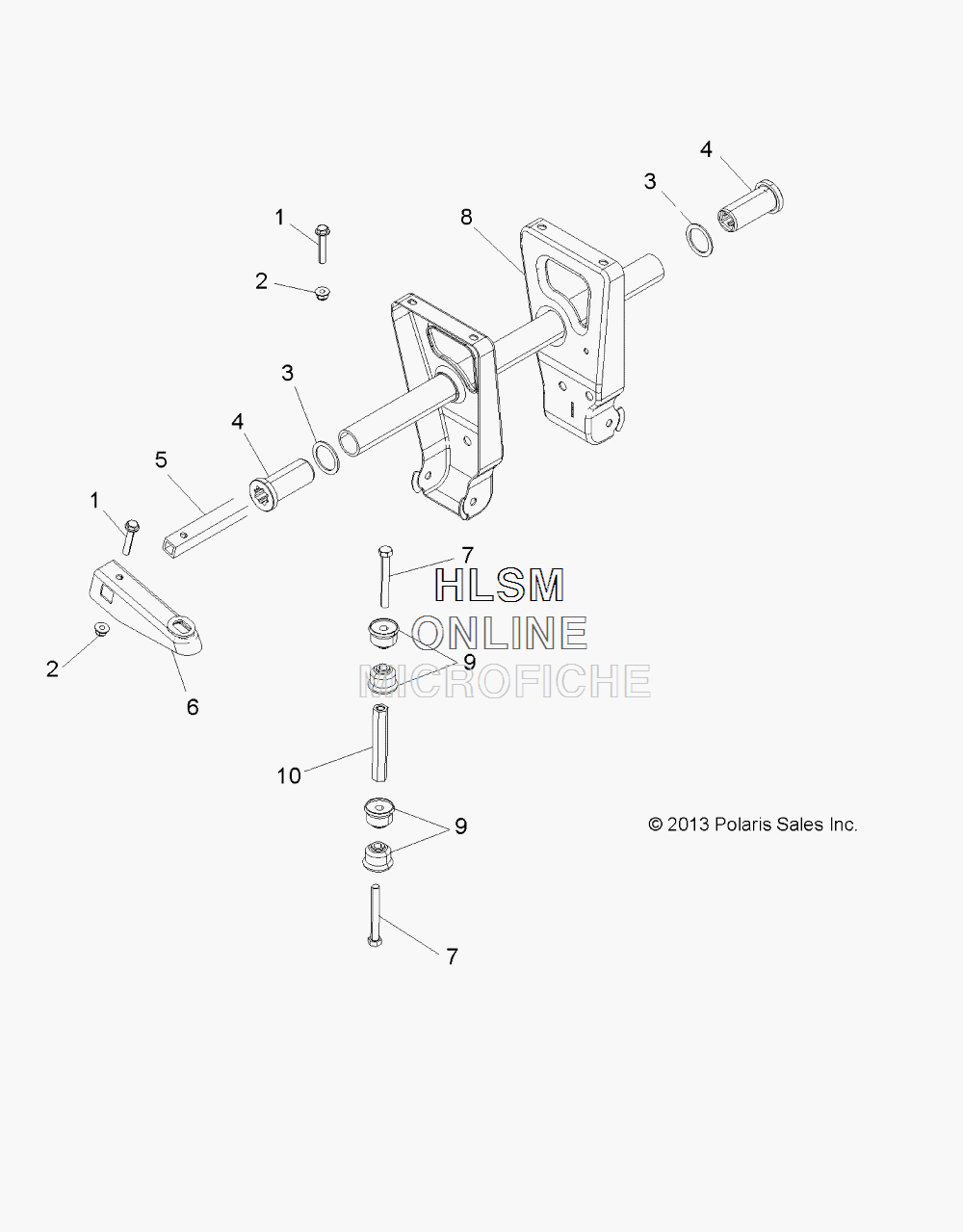

SUSPENSION - TORSION BAR [BUILT 10/04/13 AND AFTER] для Polaris SPORTSMAN 800 EFI - SAGE BRUSH GREEN METALLIC [A14MH76AA] - 2014 года выпуска`
-
№АртикулНазвание
-
17518341 BOLT, FLANGEBOLT, FLANGE
-
27542343 NUT, FLANGENUT, FLANGE
-
37555939 WASHERWASHER
-
45438901 BUSHING, STABILIZER TUBE, BLACKBUSHING, STABILIZER TUBE, BLACK
-
55334114-067 BAR, STABILIZER TUBE, BLACKBAR, STABILIZER TUBE, BLACK
-
61543119-067 ARM, STABILIZER BAR, BLACKARM, STABILIZER BAR, BLACK
-
77517231 SCREWSCREW
-
81542848-067 SUPPORT, STABILIZER, BLACKSUPPORT, STABILIZER, BLACK
-
95414877 BUSHING, STABILIZERBUSHING, STABILIZER
-
105020827 ROD, LINKAGE, STABILIZERROD, LINKAGE, STABILIZER
