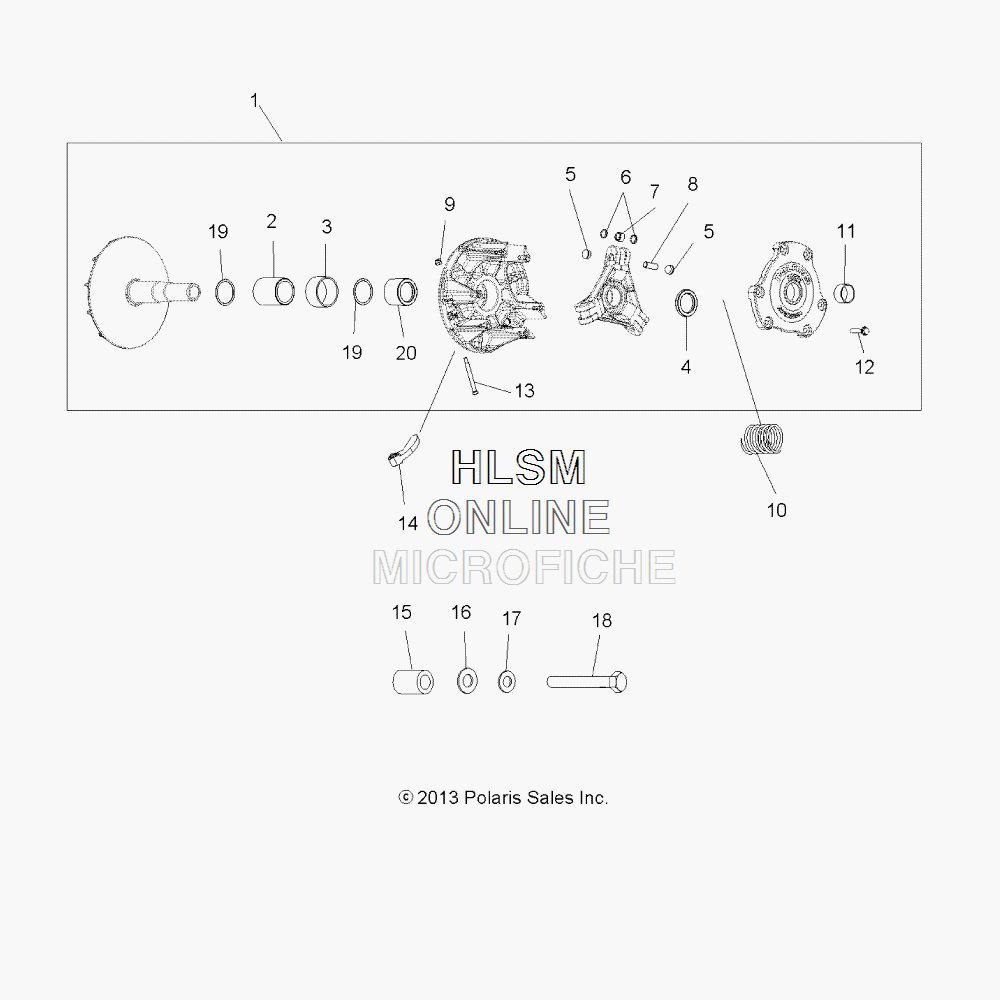

CLUTCH - PRIMARY для Polaris SPORTSMAN 570 FOREST - SAGE BRUSH GREEN METALLIC [A14MH57FA] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    1323167 ASM., DRIVE CLUTCH (INCL. 1-9,11-13,19)
    ASM., DRIVE CLUTCH (INCL. 1-9,11-13,19)
  • 2
    3514609 BEARING, NEEDLE
    BEARING, NEEDLE
  • 3
    3514492 BEARING
    BEARING
  • 4
    5450770 SPACER, CLUTCH, LIMITER
    SPACER, CLUTCH, LIMITER
  • 5
    5439254 BUTTON, CLUTCH
    BUTTON, CLUTCH
  • 6
    5438247 WASHER, CLUTCH, SPIDER ROLLER
    WASHER, CLUTCH, SPIDER ROLLER
  • 7
    1321457 ASM., ROLLER AND BUSHING
    ASM., ROLLER AND BUSHING
  • 8
    5020422 PIN, ROLLER
    PIN, ROLLER
  • 9
    7541906 NUT, FLEXLOC
    NUT, FLEXLOC
  • 10
    7043594 SPRING, CLUTCH
    SPRING, CLUTCH
  • 11
    3514684 COVER, BEARING
    COVER, BEARING
  • 12
    7518062 SCREW
    SCREW
  • 13
    7512266 BOLT, SHOULDER
    BOLT, SHOULDER
  • 14
    5632409 WEIGHT, SHIFT
    WEIGHT, SHIFT
  • 15
    5430261 BUSHING
    BUSHING
  • 16
    5210748 WASHER
    WASHER
  • 17
    7575202 WASHER, LOCK
    WASHER, LOCK
  • 18
    7519287 BOLT
    BOLT
  • 19
    7556335 WASHER
    WASHER
  • 20
    5633037 SPACER, CLUTCH
    SPACER, CLUTCH
