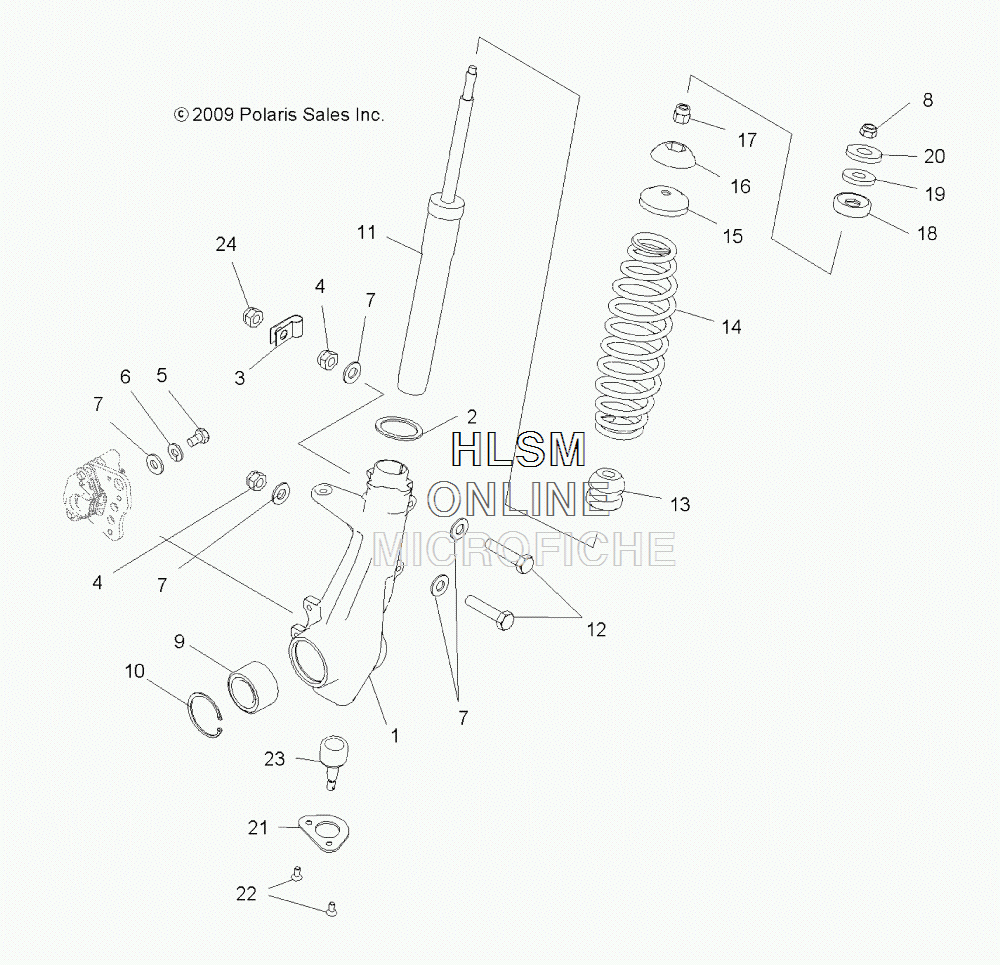

SUSPENSION - FRONT STRUT для Polaris SPORTSMAN 570 EFI TOURING - SAGE BRUSH GREEN METALLIC [A14DH57AA] - 2014 года выпуска`
-
№АртикулНазвание
-
11822825 ASM., HUBSTRUT, LEFT HAND (INCL. 9,10,21,22,23)ASM., HUBSTRUT, LEFT HAND (INCL. 9,10,21,22,23)
-
11822826 ASM., HUBSTRUT, RIGHT HAND (INCL. 9,10,21,22,23)ASM., HUBSTRUT, RIGHT HAND (INCL. 9,10,21,22,23)
-
25211115 WASHERWASHER
-
37080367 CLAMP, CABLECLAMP, CABLE
-
47542324 NUT, NYLOKNUT, NYLOK
-
57512365 SCREW, CAPSCREW, CAP
-
67552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
77558402 WASHER, FLATWASHER, FLAT
-
87547104 NUTNUT
-
93514634 BEARING, WHEELBEARING, WHEEL
-
107710507 RING, RETAININGRING, RETAINING
-
117041762 STRUT, FRONTSTRUT, FRONT
-
127512312 BOLTBOLT
-
135412665 BUMPERBUMPER
-
147043247-067 SPRING, COMPRESSION, BLACKSPRING, COMPRESSION, BLACK
-
155243364 RETAINER, SPRINGRETAINER, SPRING
-
165432871 BALL, PIVOT, BOTTOMBALL, PIVOT, BOTTOM
-
175132062 SPACERSPACER
-
185432872 BALL, PIVOT, TOPBALL, PIVOT, TOP
-
195810291 SPACER, RUBBERSPACER, RUBBER
-
207555749 WASHERWASHER
-
215211121 BRACKET, BALL JOINTBRACKET, BALL JOINT
-
227512284 BOLT, SOCKETBOLT, SOCKET
-
237061158 JOINT, BALL GREASELESSJOINT, BALL GREASELESS
-
247542344 NUT, NYLOK, THINNUT, NYLOK, THIN
