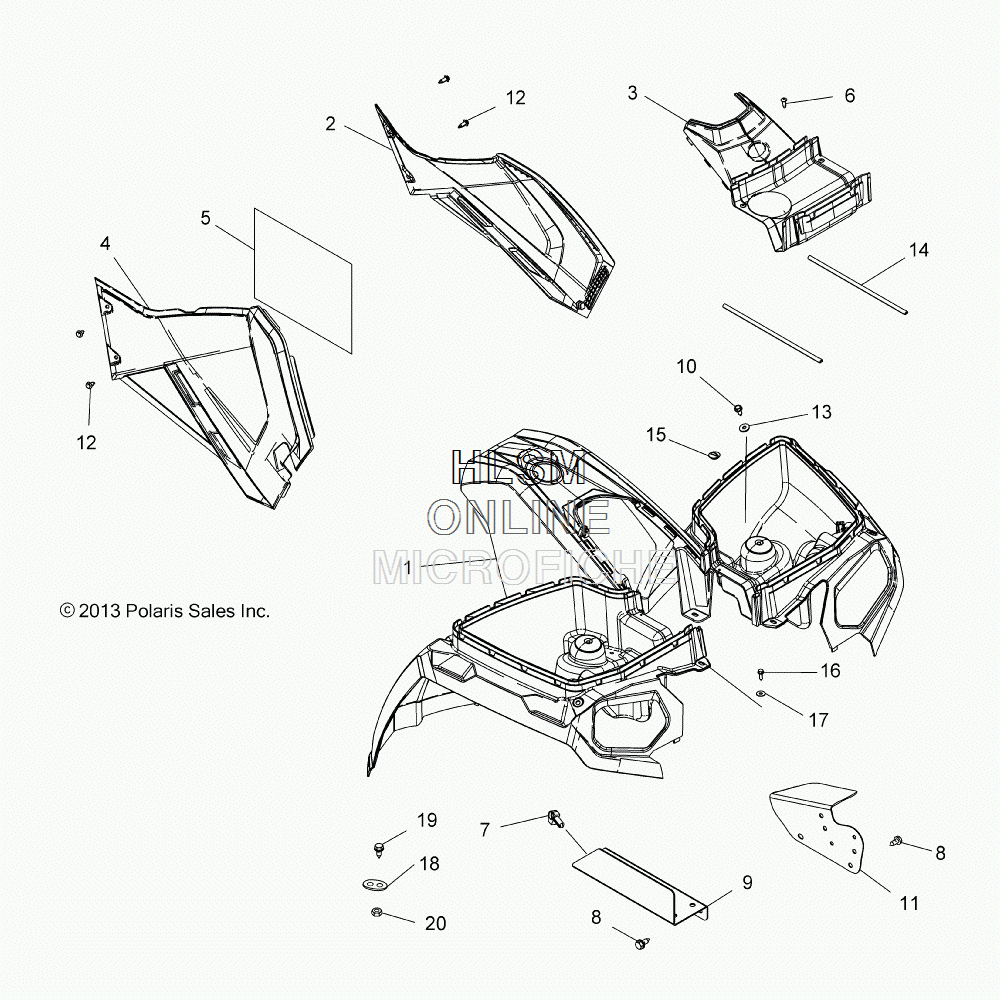

CAB - FRONT W/ SIDE PANELS для Polaris SPORTSMAN 570 EFI EPS FOREST - BLACK [A14MH5EFK] - 2014 года выпуска`
-
№АртикулНазвание
-
12635413-070 ASM., CAB, FRONT, BLACK (INCL. WARNING DECALS)ASM., CAB, FRONT, BLACK (INCL. WARNING DECALS)
-
25451308-070 PANEL, SIDE, UPPER, LEFT HAND, BLACKPANEL, SIDE, UPPER, LEFT HAND, BLACK
-
35451307-070 COVER, FRONT, BLACKCOVER, FRONT, BLACK
-
37080356 CABLE TIECABLE TIE
-
42635414-070 ASM., PANEL/FOIL, RIGHT HAND, BLACK (INCL. 5)ASM., PANEL/FOIL, RIGHT HAND, BLACK (INCL. 5)
-
55814020 FOIL, SIDE PANELFOIL, SIDE PANEL
-
67519045 SCREWSCREW
-
77670102 CLIPCLIP
-
87517386 SCREWSCREW
-
95248100-329 GUARD, SPLASH, RIGHT HANDGUARD, SPLASH, RIGHT HAND
-
107515399 SCREWSCREW
-
115246872 GUARD, SPLASH, LEFT HANDGUARD, SPLASH, LEFT HAND
-
127661855 RIVETRIVET
-
137555960 WASHER, FLATWASHER, FLAT
-
145521697-350 SEAL, BULBSEAL, BULB
-
155412981 PLUG, COMPARTMENTPLUG, COMPARTMENT
-
167512232 SCREWSCREW
-
177555859 WASHER, FLATWASHER, FLAT
-
185258497 BRACKET, PLUG MOUNTBRACKET, PLUG MOUNT
-
197512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
207542153 NUT, FLANGED, NYLOKNUT, FLANGED, NYLOK
