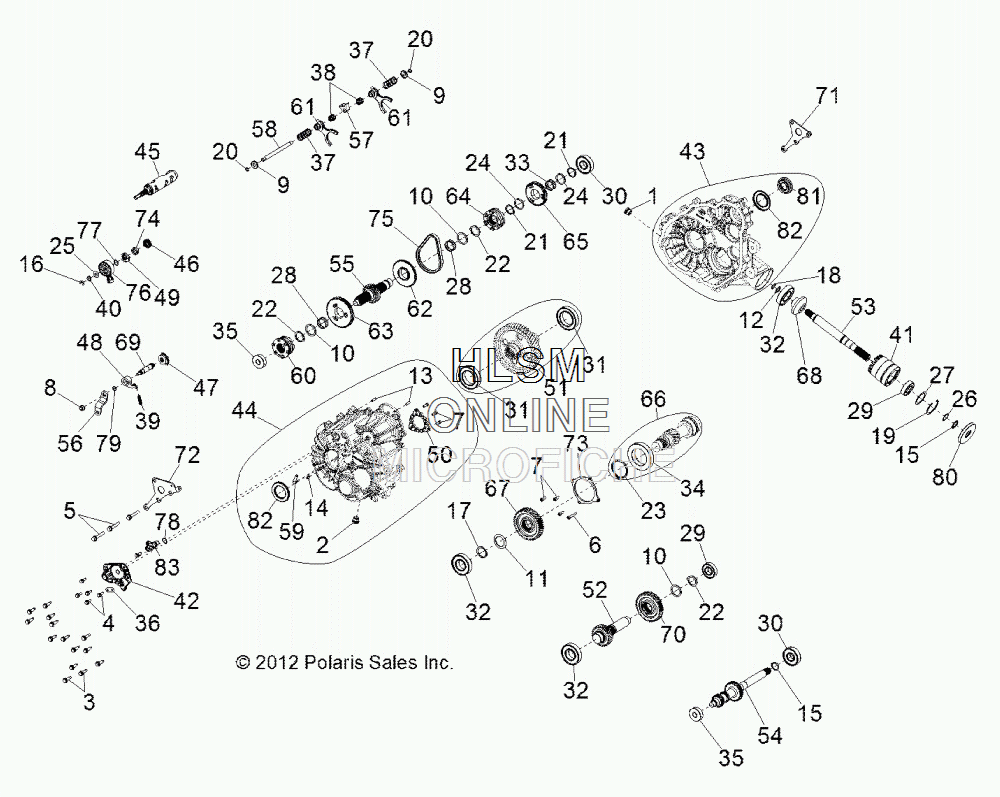

MAIN GEARCASE для Polaris RZR 570 INDY RED [Z14VH57AD] - 2014 года выпуска

‹-+›

№

Артикул

Название
--

1333051 ASM., GEARCASE (INCL. ALL)

ASM., GEARCASE (INCL. ALL)
1

3234755 PLUG

PLUG
2

3234756 PLUG

PLUG
3

3234898 SCREW

SCREW
4

3235206 SCREW

SCREW
5

3235207 SCREW

SCREW
6

3234086 SCREW, SOCKET HEAD, CAP

SCREW, SOCKET HEAD, CAP
7

3235209 SCREW, SOCKET HEAD, CAP

SCREW, SOCKET HEAD, CAP
8

3233961 NUT, LOCK

NUT, LOCK
9

3234091 WASHER, CUP

WASHER, CUP
10

3235211 WASHER

WASHER
11

3235212 WASHER

WASHER
12

3235213 WASHER

WASHER
13

3234330 PIN, DOWEL

PIN, DOWEL
14

7043746 PIN, SPRING, SLOTTED

PIN, SPRING, SLOTTED
15

3233106 RING, RETAINING

RING, RETAINING
16

3233834 RING, SNAP

RING, SNAP
17

3233364 RING, RETAINING, SHAFT

RING, RETAINING, SHAFT
18

3234318 RING, RETAINING, EXTERNAL

RING, RETAINING, EXTERNAL
19

3234269 RING, RETAINING, INTERNAL

RING, RETAINING, INTERNAL
20

3234090 RING, RETAINING, EXTERNAL

RING, RETAINING, EXTERNAL
21

3234205 RING, RETAINING

RING, RETAINING
22

3235214 RING, RETAINING, EXTERNAL

RING, RETAINING, EXTERNAL
23

3235216 RING, RETAINING

RING, RETAINING
24

3233378 WASHER, THRUST

WASHER, THRUST
25

3234642 WASHER, THRUST

WASHER, THRUST
26

3234272 SHIM

SHIM
27

3234273 SHIM

SHIM
28

3233014 BEARING, NEEDLE

BEARING, NEEDLE
29

3233019 BEARING

BEARING
30

3233020 BEARING

BEARING
31

3233268 BEARING, BALL

BEARING, BALL
32

3234065 BEARING, BALL

BEARING, BALL
33

3233384 BEARING, NEEDLE

BEARING, NEEDLE
34

3235218 BEARING, BALL

BEARING, BALL
35

3234652 BEARING, BALL

BEARING, BALL
36

3235350 BRACKET, WIRE HARNESS

BRACKET, WIRE HARNESS
37

3234078 SPRING, COMPRESSION

SPRING, COMPRESSION
38

3234089 SPRING, COMPRESSION

SPRING, COMPRESSION
39

3233830 SPRING, COMPRESSION

SPRING, COMPRESSION
40

3235327 WASHER, SPRING

WASHER, SPRING
41

3234278 TUBE

TUBE
42

3234188 COVER, SECTOR GEARS

COVER, SECTOR GEARS
43

3235382 SUBASM., CASE, LEFT HAND

SUBASM., CASE, LEFT HAND
44

3235444 SUBASM., CASE, RIGHT HAND

SUBASM., CASE, RIGHT HAND
45

3235463 DRUM, SHIFT

DRUM, SHIFT
46

3233839 GEAR, SECTOR, 16T

GEAR, SECTOR, 16T
47

3233832 GEAR, SECTOR, 31T

GEAR, SECTOR, 31T
48

3235452 PAWL, ROLLER

PAWL, ROLLER
49

3235453 STAR, DETENT

STAR, DETENT
50

3235456 PLATE, PARK

PLATE, PARK
51

3235335 SUBASM., OUTPUT GEAR

SUBASM., OUTPUT GEAR
52

3235223 SHAFT, IDLER, 29T

SHAFT, IDLER, 29T
53

3235394 SHAFT, OUTPUT, FRONT

SHAFT, OUTPUT, FRONT
54

3235429 SHAFT, INPUT

SHAFT, INPUT
55

3235380 SHAFT, REVERSE, 27T

SHAFT, REVERSE, 27T
56

3235386 BELLCRANK

BELLCRANK
57

3234073 COLLAR, SHIFT

COLLAR, SHIFT
58

3235542 RAIL, SHIFT SHAFT

RAIL, SHIFT SHAFT
59

3234230 TUBE, VENT

TUBE, VENT
60

3235457 DOG, SHIFT, PARK/LOW

DOG, SHIFT, PARK/LOW
61

3235454 SUBASM., SHIFT FORK

SUBASM., SHIFT FORK
62

3233854 SPROCKET, 48T

SPROCKET, 48T
63

3233852 GEAR, LOW, 67T

GEAR, LOW, 67T
64

3235233 DOG, ENGAGEMENT

DOG, ENGAGEMENT
65

3235234 GEAR, 53T

GEAR, 53T
66

3235336 SUBASM., SHAFT

SUBASM., SHAFT
67

3235236 GEAR, 46T

GEAR, 46T
68

3235237 GEAR, 13T

GEAR, 13T
69

3235238 SHAFT, SHIFT

SHAFT, SHIFT
70

3235381 GEAR, 46T

GEAR, 46T
71

3235239 BRACKET, MOUNT, REAR

BRACKET, MOUNT, REAR
72

3235351 BRACKET, MOUNT, REAR

BRACKET, MOUNT, REAR
73

3235241 COVER, BEARING, CENTER DRIVE

COVER, BEARING, CENTER DRIVE
74

3235243 SPACER

SPACER
75

3234737 CHAIN, SILENT

CHAIN, SILENT
76

7661999 SWITCH, ROTARY

SWITCH, ROTARY
77

3233836 O-RING

O-RING
78

3234302 O-RING

O-RING
79

3233828 O-RING

O-RING
80

3234113 SEAL, TRIPEL LIP

SEAL, TRIPEL LIP
81

3234851 SEAL

SEAL
82

3235052 SEAL, TRIPLE LIP

SEAL, TRIPLE LIP
83

4013908 SENSOR, SPEED

SENSOR, SPEED
