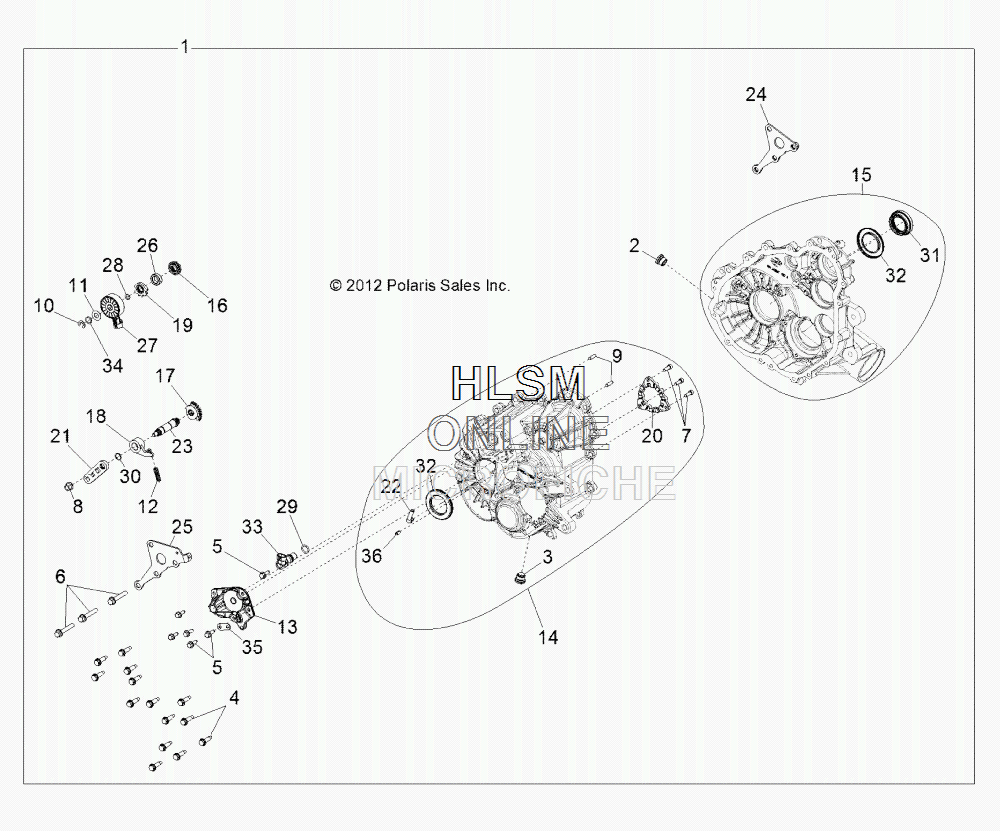

MAIN GEARCASE INTERNAL для Polaris RZR 4 900 ORANGE MADNESS [Z14XT9EAO] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    1333044 ASM., GEARCASE
    ASM., GEARCASE
  • 2
    3234755 PLUG
    PLUG
  • 3
    3234756 PLUG
    PLUG
  • 4
    3234898 SCREW
    SCREW
  • 5
    3235206 SCREW
    SCREW
  • 6
    3235207 SCREW
    SCREW
  • 7
    3235332 SCREW
    SCREW
  • 8
    3235210 NUT
    NUT
  • 9
    3234330 PIN, SOLID
    PIN, SOLID
  • 10
    3233834 RING, RETAINING
    RING, RETAINING
  • 11
    3234642 WASHER, THRUST
    WASHER, THRUST
  • 12
    3233830 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 13
    3234188 SUBASM., SECTOR COVER W/PINS
    SUBASM., SECTOR COVER W/PINS
  • 14
    3235444 SUBASM., CASE, RIGHT HAND (INCL. ALL HARDWARE)
    SUBASM., CASE, RIGHT HAND (INCL. ALL HARDWARE)
  • 15
    3235467 SUBASM., CASE, LEFT HAND (INCL. ALL HARDWARE)
    SUBASM., CASE, LEFT HAND (INCL. ALL HARDWARE)
  • 16
    3233839 GEAR, 16T
    GEAR, 16T
  • 17
    3233832 GEAR, 31T
    GEAR, 31T
  • 18
    3235452 PAWL, DETENT
    PAWL, DETENT
  • 19
    3235453 STAR, DETENT
    STAR, DETENT
  • 20
    3235456 PLATE, PARK, 12 FACE
    PLATE, PARK, 12 FACE
  • 21
    3235227 BELLCRANK
    BELLCRANK
  • 22
    3234230 TUBE, VENT
    TUBE, VENT
  • 23
    3235238 SHAFT, SHIFT
    SHAFT, SHIFT
  • 24
    3235239 BRACKET, MOUNT, REAR
    BRACKET, MOUNT, REAR
  • 25
    3235351 BRACKET, MOUNT, REAR
    BRACKET, MOUNT, REAR
  • 26
    3235243 SPACER
    SPACER
  • 27
    7661999 PIN, GEAR POSITION SWITCH
    PIN, GEAR POSITION SWITCH
  • 28
    3233836 O-RING
    O-RING
  • 29
    3234302 O-RING
    O-RING
  • 30
    3233828 O-RING
    O-RING
  • 31
    3235466 SEAL
    SEAL
  • 32
    3235052 SEAL, TRIPLE LIP
    SEAL, TRIPLE LIP
  • 33
    4013908 SENSOR, SPEED
    SENSOR, SPEED
  • 34
    3235327 WASHER, SPRING
    WASHER, SPRING
  • 35
    3235350 BRACKET, MOUNT
    BRACKET, MOUNT
  • 36
    7043746 PIN, SPRING, SLOTTED
    PIN, SPRING, SLOTTED
