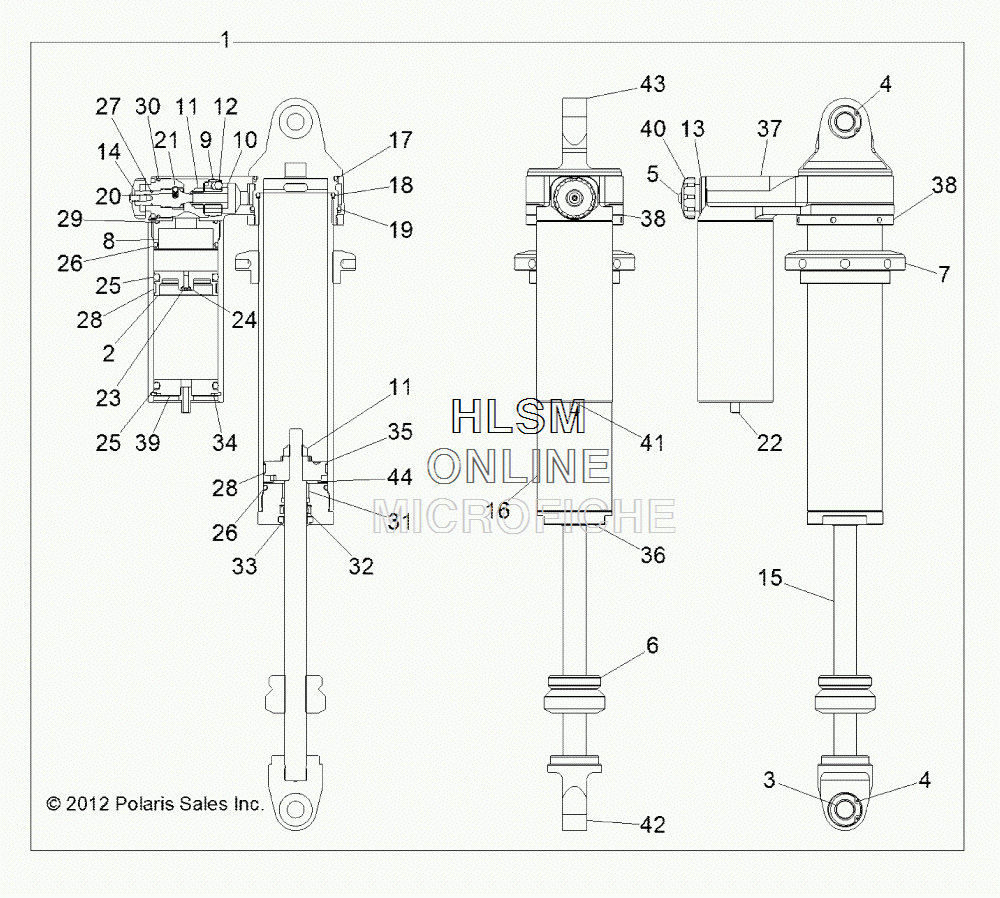

REAR SHOCK (7043938) для Polaris RZR 4 900 INTL [Z14XT9EFX] - 2014 года выпуска`
-
№АртикулНазвание
-
17043938 SHOCK, REAR (INCL. ALL)SHOCK, REAR (INCL. ALL)
-
21800480 PISTONPISTON
-
31800592 BEARINGBEARING
-
41800481 RING, SNAPRING, SNAP
-
51800357 SCREWSCREW
-
61800593 BUMPERBUMPER
-
71800485 NUT, SPRINGNUT, SPRING
-
81800488 MOUNTMOUNT
-
91800546 CHECK VALVECHECK VALVE
-
101800547 BOLT, CLICKERBOLT, CLICKER
-
111800164 NUT, CRIMPNUT, CRIMP
-
121800548 BALLBALL
-
131800492 NUTNUT
-
141800493 NUTNUT
-
151800494 SHAFTSHAFT
-
161800495 BODYBODY
-
171800497 O-RING (WER-1125230)O-RING (WER-1125230)
-
181800498 O-RING (WER-1125229)O-RING (WER-1125229)
-
191800499 O-RING (WER-1125232)O-RING (WER-1125232)
-
201800128 SPRING, DETENTSPRING, DETENT
-
211800127 BALLBALL
-
221800021 VALVEVALVE
-
231800043 SCREW, BLEEDSCREW, BLEED
-
241800210 O-RING-BLEED SCREWO-RING-BLEED SCREW
-
251800508 O-RING(WER-1125327)O-RING(WER-1125327)
-
261800500 O-RING (WER-1125225)O-RING (WER-1125225)
-
271800215 O-RING,STUDO-RING,STUD
-
271800501 O-RING (WER-400614)O-RING (WER-400614)
-
281800509 BANK, PISTONBANK, PISTON
-
291800502 O-RING (WER-1125134)O-RING (WER-1125134)
-
301800503 O-RING (WER-1125122)O-RING (WER-1125122)
-
311800504 BUSHING, SHAFTBUSHING, SHAFT
-
321800505 SEAL, SHAFTSEAL, SHAFT
-
331800506 WIPERWIPER
-
341800507 RING, RETAININGRING, RETAINING
-
351800486 PISTONPISTON
-
361800549 ASM., SEAL HEADASM., SEAL HEAD
-
371800550 BRIDGEBRIDGE
-
381800551 NUT, LOCKNUT, LOCK
-
391800552 CAP, ENDCAP, END
-
401800553 KNOB, ADJUSTERKNOB, ADJUSTER
-
411800554 BODY, RESERVOIRBODY, RESERVOIR
-
421800555 LOOP, SHAFTLOOP, SHAFT
-
431800556 BODY, LOOPBODY, LOOP
-
441800496 SPACERSPACER
