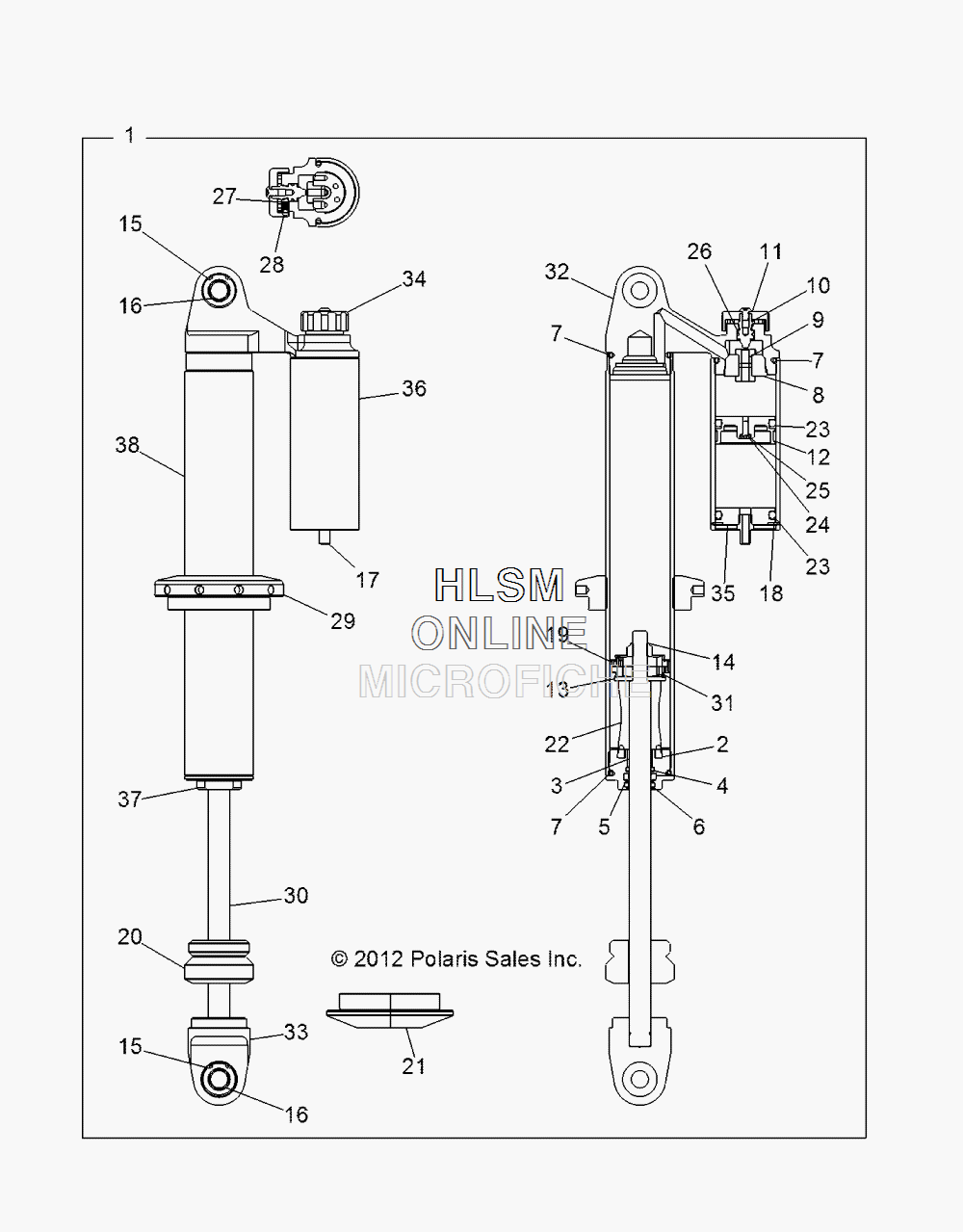

FRONT SHOCK (7043778) для Polaris RZR 4 900 INTL [Z14XT9EFX] - 2014 года выпуска`
-
№АртикулНазвание
-
17043778 SHOCK, FRONT (INCL. ALL)SHOCK, FRONT (INCL. ALL)
-
21800386 BUMP STOP, INTERNALBUMP STOP, INTERNAL
-
31800038 SHAFT BUSHINGSHAFT BUSHING
-
41800655 O-RING, SEAL HEAD, BROWNO-RING, SEAL HEAD, BROWN
-
51800656 SEAL, U-CUP, BLACKSEAL, U-CUP, BLACK
-
61800034 WIPERWIPER
-
71800030 O-RINGO-RING
-
81800217 PISTONPISTON
-
91800219 SCREWSCREW
-
101800352 STUDSTUD
-
111800357 SCREWSCREW
-
121800355 PISTON, RESERVOIRPISTON, RESERVOIR
-
131800393 WASHERWASHER
-
141800164 NUT, CRIMPNUT, CRIMP
-
151800041 RING, SNAPRING, SNAP
-
161800170 BEARINGBEARING
-
171800021 VALVEVALVE
-
181800159 RING, SNAPRING, SNAP
-
191800185 BAND, PISTONBAND, PISTON
-
201800593 BUMPERBUMPER
-
211500867 RETAINER, SPRINGRETAINER, SPRING
-
221800512 SPACER, SHAFTSPACER, SHAFT
-
231800184 O-RINGO-RING
-
241800043 SCREW, BLEEDSCREW, BLEED
-
251800210 O-RINGO-RING
-
261800215 O-RINGO-RING
-
271800128 SPRING, DETENTSPRING, DETENT
-
281800127 BALL, DETENTBALL, DETENT
-
291800514 NUT, SPRINGNUT, SPRING
-
301800515 SHAFTSHAFT
-
311800516 ASM., PISTONASM., PISTON
-
321800573 LOOP, PB, TALL, CLEARLOOP, PB, TALL, CLEAR
-
331800555 SHAFT LOOPSHAFT LOOP
-
341800418 KNOBKNOB
-
351800574 CAP, END, RESERVOIRCAP, END, RESERVOIR
-
361800575 BODY, RESERVOIRBODY, RESERVOIR
-
371800563 ASM., SEAL HEADASM., SEAL HEAD
-
381800513 BODYBODY
