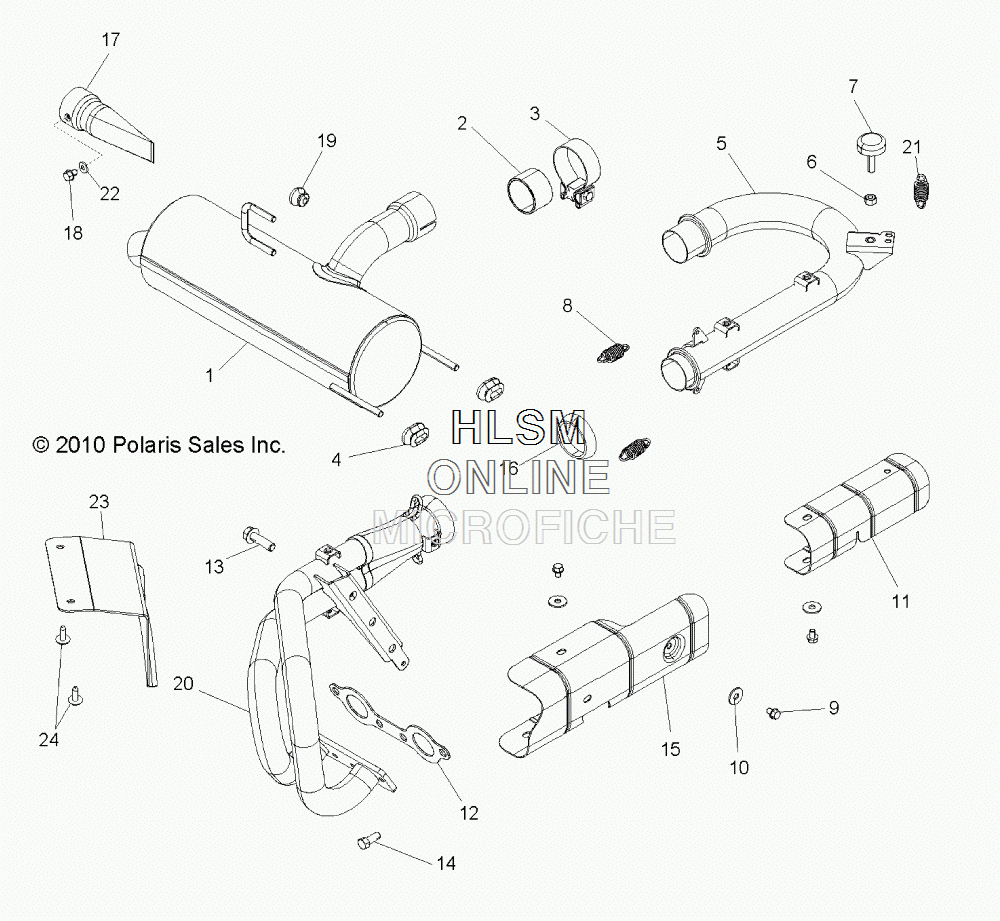

EXHAUST для Polaris RZR 4 800 EPS STEALTH BLACK LE [Z14XE7EAL] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    1262238-489 SILENCER, BLACK
    SILENCER, BLACK
  • 2
    5257254 SEAL, EXHAUST
    SEAL, EXHAUST
  • 3
    7081382 CLAMP, EXHAUST
    CLAMP, EXHAUST
  • 4
    5436598 GROMMET, SILENCER MOUNT
    GROMMET, SILENCER MOUNT
  • 5
    1262317-489 PIPE, EXHAUST, BLACK
    PIPE, EXHAUST, BLACK
  • 6
    7542301 NUT
    NUT
  • 7
    3021522 MOUNT, TORQUE STOP
    MOUNT, TORQUE STOP
  • 8
    7041789 SPRING, EXHAUST
    SPRING, EXHAUST
  • 9
    7517704 SCREW
    SCREW
  • 10
    7555935 WASHER
    WASHER
  • 11
    5256215 PLATE, SHIELD, EXHAUST PIPE
    PLATE, SHIELD, EXHAUST PIPE
  • 12
    5811511 GASKET, EXHAUST
    GASKET, EXHAUST
  • 13
    7517386 SCREW
    SCREW
  • 14
    7518984 SCREW
    SCREW
  • 15
    5256216 PLATE, SHIELD, DUAL PIPE
    PLATE, SHIELD, DUAL PIPE
  • 16
    3610181 SEAL, EXHAUST, SOCKET
    SEAL, EXHAUST, SOCKET
  • 17
    1262239 ARRESTOR, SPARK
    ARRESTOR, SPARK
  • 18
    7517257 SCREW
    SCREW
  • 19
    5414307 GROMMET, SILENCER MOUNT
    GROMMET, SILENCER MOUNT
  • 20
    1262319-489 HEADPIPE, DUAL, BLACK
    HEADPIPE, DUAL, BLACK
  • 21
    7041687 SPRING, EXHAUST
    SPRING, EXHAUST
  • 22
    7547120 NUT
    NUT
  • 23
    5254751 PLATE, SHIELD EXHAUST, UPPER
    PLATE, SHIELD EXHAUST, UPPER
  • 24
    7517386 SCREW
    SCREW
