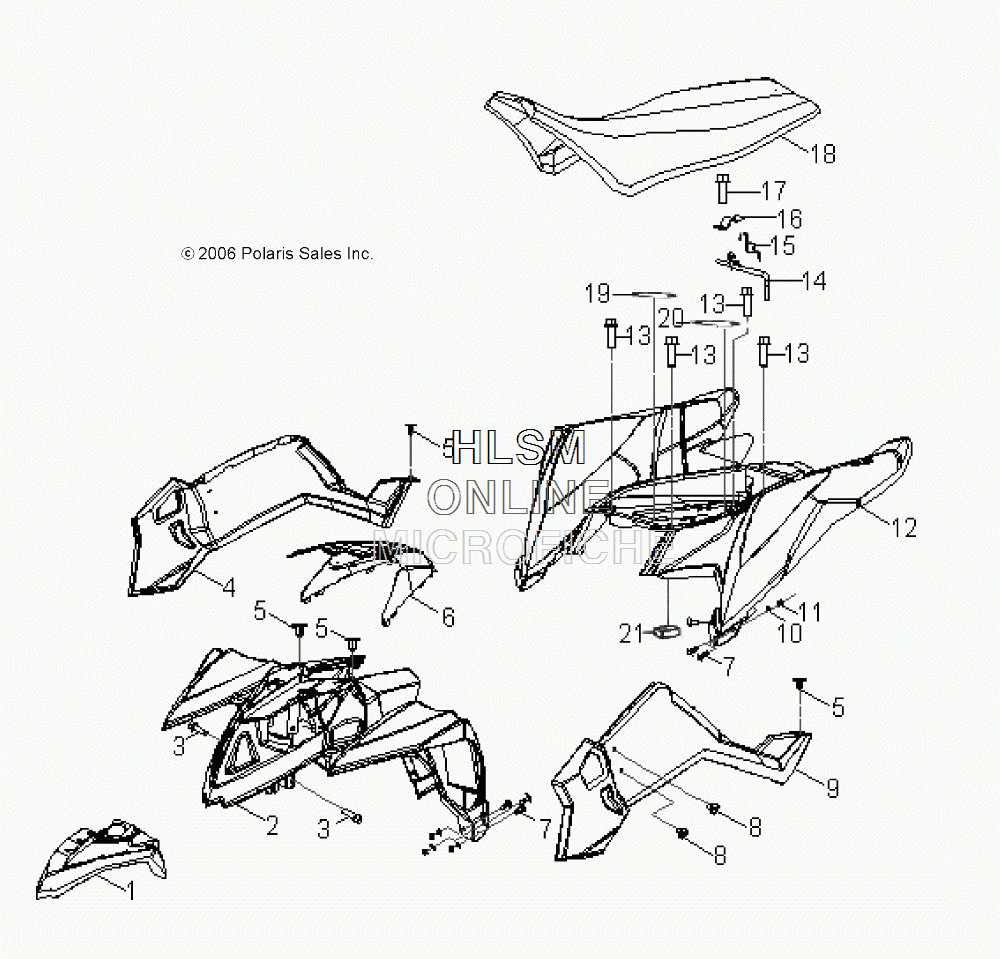

CAB - SEAT для Polaris OUTLAW 90 - PINK [A14KA09AD] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    0453326-133 COVER, FRONT, BRIGHT WHITE
    COVER, FRONT, BRIGHT WHITE
  • 2
    0454901-544 CAB, FRONT, PINK
    CAB, FRONT, PINK
  • 3
    0450824 BOLT
    BOLT
  • 4
    0453324-133 PANEL, SIDE, RIGHT HAND, BRIGHT WHITE
    PANEL, SIDE, RIGHT HAND, BRIGHT WHITE
  • 5
    0451076 RIVET, PLASTIC
    RIVET, PLASTIC
  • 6
    0453325-133 COVER, FUEL TANK, BRIGHT WHITE
    COVER, FUEL TANK, BRIGHT WHITE
  • 7
    0450622 BOLT
    BOLT
  • 8
    7661855 RIVET
    RIVET
  • 9
    0453323-133 PANEL, SIDE, LEFT HAND, BRIGHT WHITE
    PANEL, SIDE, LEFT HAND, BRIGHT WHITE
  • 10
    0450710 WASHER
    WASHER
  • 11
    0450741 NUT
    NUT
  • 12
    0454255-544 ASM., CAB, REAR, PINK W/DECAL
    ASM., CAB, REAR, PINK W/DECAL
  • 13
    0452215 BOLT
    BOLT
  • 14
    0453688 LATCH, SEAT
    LATCH, SEAT
  • 15
    0453689 SPRING
    SPRING
  • 16
    0453690 RETAINER, SEAT LATCH
    RETAINER, SEAT LATCH
  • 17
    0451703 SCREW
    SCREW
  • 18
    0453327-133 SEAT, BASE W/FOAM, BRIGHT WHITE (INCL. 14,15,16)
    SEAT, BASE W/FOAM, BRIGHT WHITE (INCL. 14,15,16)
  • 19
    0453686 O-RING, LARGE
    O-RING, LARGE
  • 20
    0453687 O-RING
    O-RING
  • 21
    0450346 RUBBER, BATTERY
    RUBBER, BATTERY
