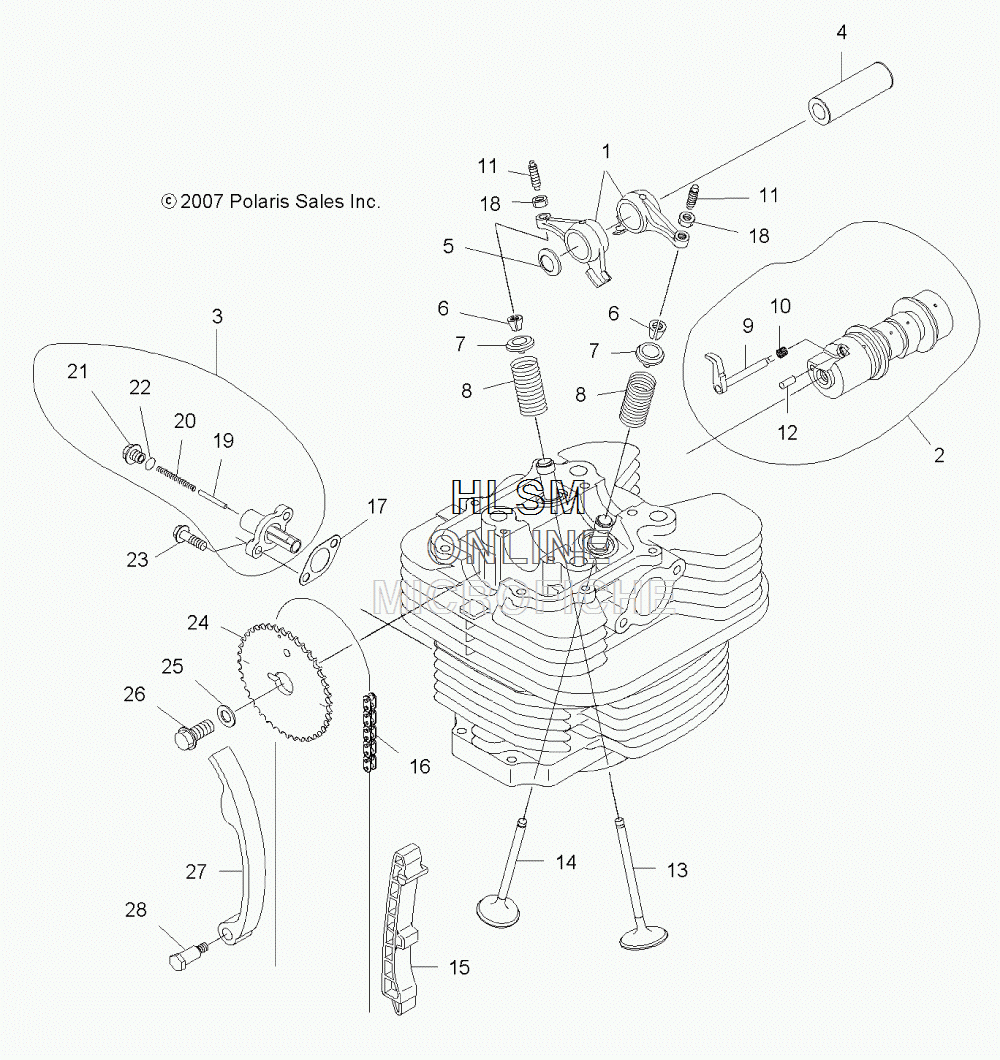

CAMSHAFT W/ VALVE ASSY. для Polaris TRAIL BOSS 330 - BOARDWALK BLUE [A13EA32AA] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    3084910 ASM., ROCKER ARM (INCL. 11,18)
    ASM., ROCKER ARM (INCL. 11,18)
  • 2
    3087247 ASM., CAMSHAFT (INCL. 9,10,12)
    ASM., CAMSHAFT (INCL. 9,10,12)
  • 3
    3086493 ASM., TENSIONER (INCL. 19-22)
    ASM., TENSIONER (INCL. 19-22)
  • 4
    3087053 SHAFT, ROCKER
    SHAFT, ROCKER
  • 5
    3085836 WASHER, WAVE
    WASHER, WAVE
  • 6
    3084908 COLLET, VALVE
    COLLET, VALVE
  • 7
    3087203 RETAINER, SPRING, VALVE
    RETAINER, SPRING, VALVE
  • 8
    3087248 SPRING, VALVE
    SPRING, VALVE
  • 9
    3086439 ASM., LEVER, RELEASE
    ASM., LEVER, RELEASE
  • 10
    3086804 SPRING, RETURN
    SPRING, RETURN
  • 11
    3084911 SCREW, ADJUSTING
    SCREW, ADJUSTING
  • 12
    3084899 PIN, DOWEL
    PIN, DOWEL
  • 13
    3085778 VALVE, INTAKE
    VALVE, INTAKE
  • 14
    3086441 VALVE, EXHAUST
    VALVE, EXHAUST
  • 15
    3086445 GUIDE, CHAIN
    GUIDE, CHAIN
  • 16
    3086444 CHAIN, TIMING
    CHAIN, TIMING
  • 17
    3086448 GASKET, TENSIONER
    GASKET, TENSIONER
  • 18
    3084912 NUT
    NUT
  • 19
    3087132 PIN
    PIN
  • 20
    3087131 SPRING, TENSIONER
    SPRING, TENSIONER
  • 21
    3087129 PLUG
    PLUG
  • 22
    3087130 GASKET, PLUG
    GASKET, PLUG
  • 23
    3083361 BOLT, FLANGE
    BOLT, FLANGE
  • 24
    3086443 SPROCKET 2
    SPROCKET 2
  • 25
    3083663 WASHER
    WASHER
  • 26
    3086449 BOLT, FLANGE
    BOLT, FLANGE
  • 27
    3086446 ASM., LEVER
    ASM., LEVER
  • 28
    3084924 ASM., BOLT, PIVOT, LEVER
    ASM., BOLT, PIVOT, LEVER
