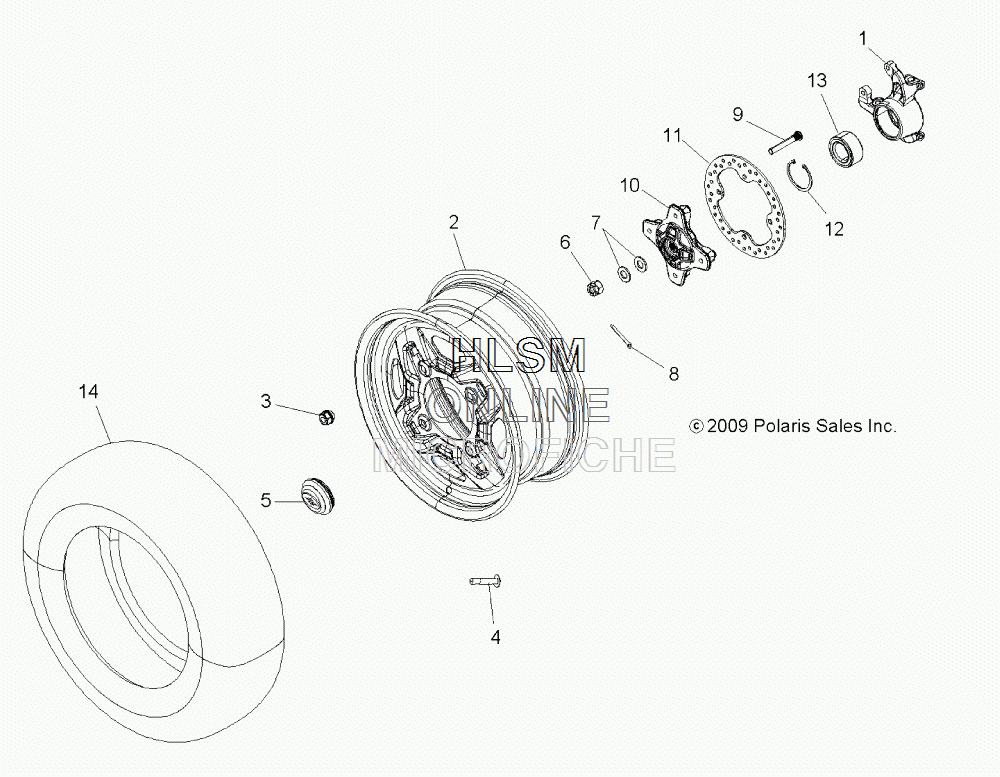

WHEEL - FRONT W/ HUB для Polaris SPORTSMAN X2 550 - (INDY RED) [A13TN55AZ] - 2013 года выпуска
-
№АртикулНазвание
-
1822945 ASM., STEERING KNUCKLE, LEFT HAND (INCL. 12,13)ASM., STEERING KNUCKLE, LEFT HAND (INCL. 12,13)
-
1822946 ASM., STEERING KNUCKLE, RIGHT HAND (INCL. 12,13)ASM., STEERING KNUCKLE, RIGHT HAND (INCL. 12,13)
-
15136733 KNUCKLE, LEFT HANDKNUCKLE, LEFT HAND
-
15136734 KNUCKLE, RIGHT HANDKNUCKLE, RIGHT HAND
-
21520961-067 RIM, FRONT (BLACK) (BUILT 10/01/12 AND BEFORE)RIM, FRONT (BLACK) (BUILT 10/01/12 AND BEFORE)
-
21521910-067 RIM, FRONT (BLACK) (BUILT 10/02/12 AND AFTER)RIM, FRONT (BLACK) (BUILT 10/02/12 AND AFTER)
-
37547363 NUT, WHEELNUT, WHEEL
-
41525017 VALVE, RIMVALVE, RIM
-
55413792 CAP, DUSTCAP, DUST
-
67547406 NUT, CASTLENUT, CASTLE
-
77555796 WASHER, CONEWASHER, CONE
-
87661404 PIN, COTTERPIN, COTTER
-
97518671 STUD, WHEELSTUD, WHEEL
-
105135499 HUB, WHEELHUB, WHEEL
-
115250205 DISC, BRAKEDISC, BRAKE
-
127710440 RING, RETAININGRING, RETAINING
-
133514699 BEARING, BALL, SEALEDBEARING, BALL, SEALED
-
145413275 TIRE, FRONT, 26X8-14TIRE, FRONT, 26X8-14
