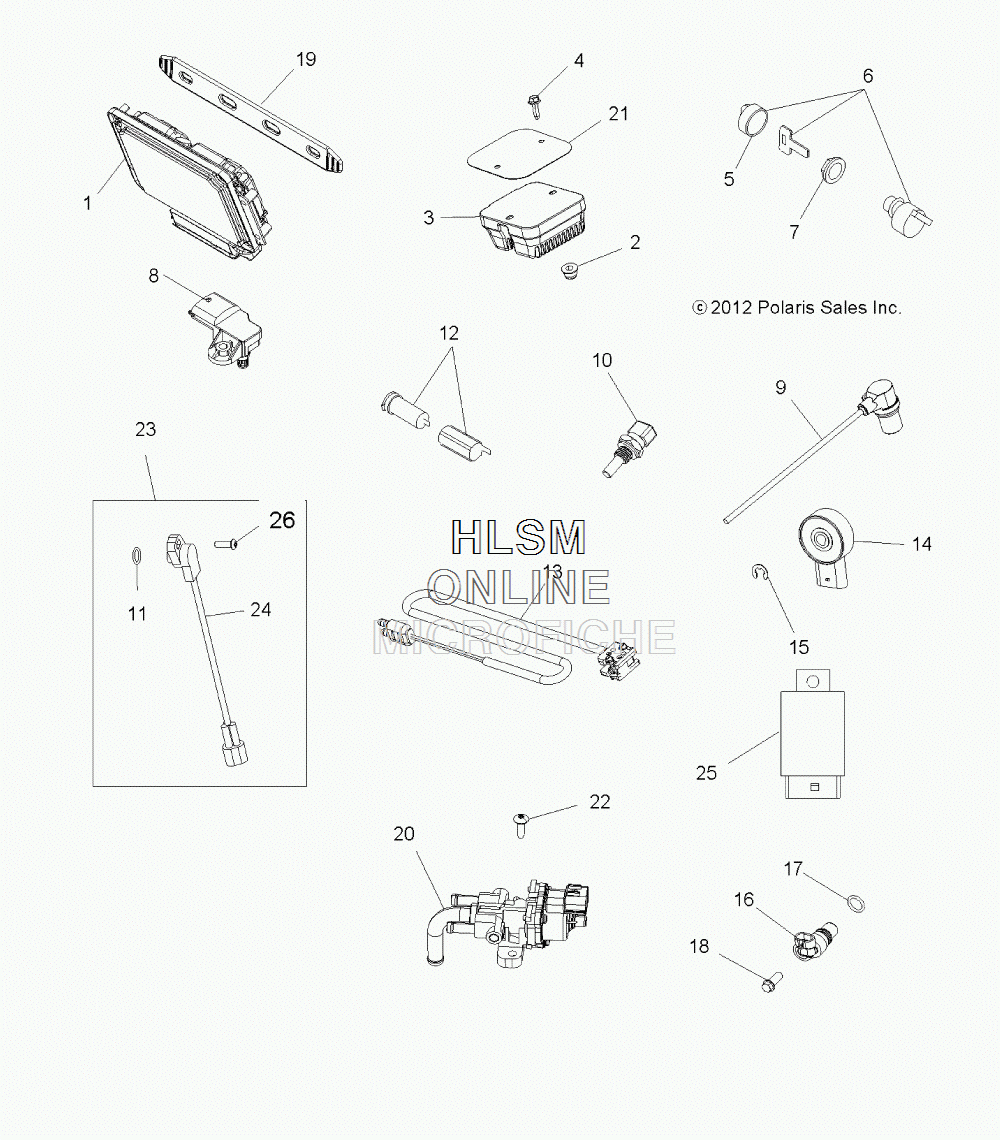

ELECTRICAL COMPONENTS для Polaris SPORTSMAN TOURING 850 EPS INTL - PEARL WHITE [A13DN8EFW] - 2013 года выпуска
-
№АртикулНазвание
-
14012616 ECMECM
-
27547274 NUT, FLANGENUT, FLANGE
-
34012678 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
47519202 SCREW, FLANGESCREW, FLANGE
-
55433534 COVER, KEYCOVER, KEY
-
64012166 SWITCH, KEY, 4 POSITION (INCL. 5)SWITCH, KEY, 4 POSITION (INCL. 5)
-
75433733 NUT, IGNITIONNUT, IGNITION
-
82411528 SENSOR, T-MAPSENSOR, T-MAP
-
83131726 SCREWSCREW
-
92411589 SENSOR, ENGINE SPEEDSENSOR, ENGINE SPEED
-
104010644 SENSOR, THERMISTORSENSOR, THERMISTOR
-
115414574 O-RINGO-RING
-
124010638 RECEPTACLE, POD, 12 VRECEPTACLE, POD, 12 V
-
132202794 KIT, BRAKE LIGHT SWITCHKIT, BRAKE LIGHT SWITCH
-
143233835 SWITCH (GEAR POSITION)SWITCH (GEAR POSITION)
-
153233834 RING, RETAININGRING, RETAINING
-
164012167 SENSOR, SPEEDSENSOR, SPEED
-
173234302 O-RINGO-RING
-
183234329 SCREWSCREW
-
195414193 STRAP, ECUSTRAP, ECU
-
204013313 VALVE, IACVALVE, IAC
-
202878507 KIT, HARNESS, IACKIT, HARNESS, IAC
-
215253294 COVER, VOLTAGE REGULATORCOVER, VOLTAGE REGULATOR
-
227519045 SCREWSCREW
-
231204715 ASM., TPSASM., TPS
-
242410342 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
254013043 MODULE, FLASHER, LEDMODULE, FLASHER, LED
-
263131580 SCREWSCREW
