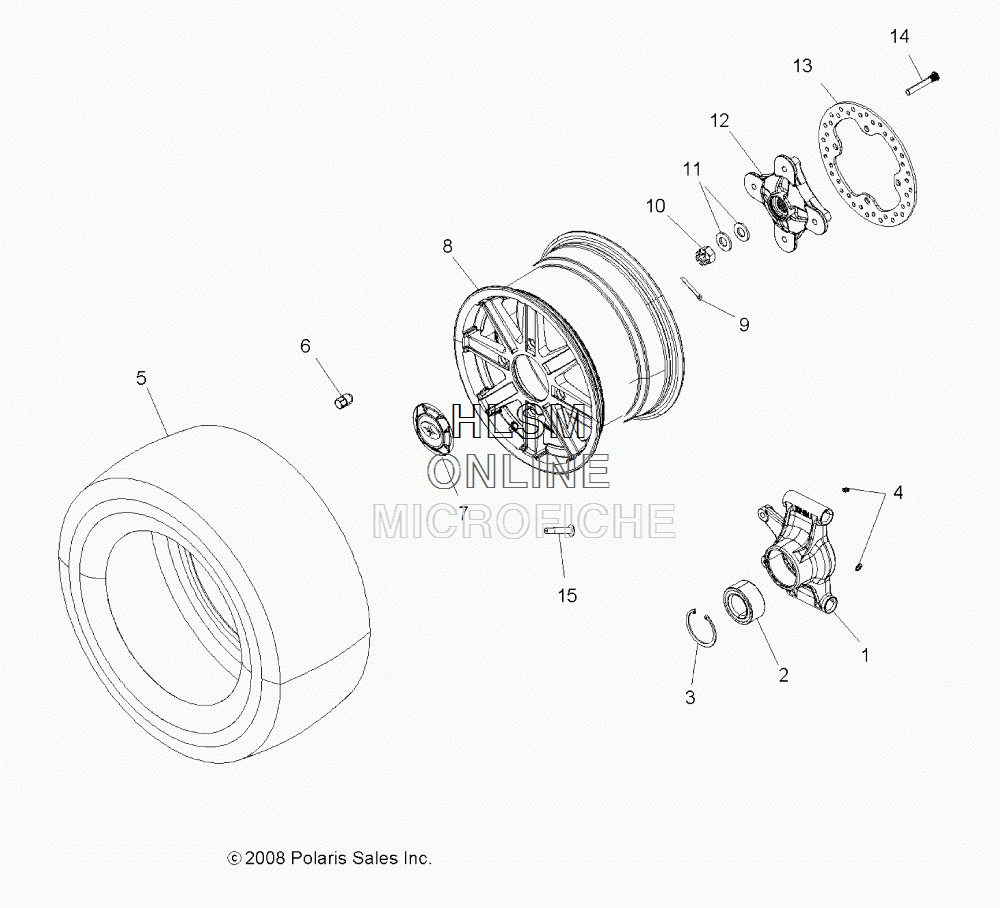

WHEEL - REAR W/ HUB для Polaris SPORTSMAN TOURING 550 EPS INTL - (SUNSET RED) [A13DN5EFL] - 2013 года выпуска
-
№АртикулНазвание
-
15136689 CARRIER, BEARING, LEFT HANDCARRIER, BEARING, LEFT HAND
-
15136690 CARRIER, BEARING, RIGHT HANDCARRIER, BEARING, RIGHT HAND
-
23514699 BEARING, BALL, SEALEDBEARING, BALL, SEALED
-
37710440 RING, RETAININGRING, RETAINING
-
47080424 FITTING, LUBRICATINGFITTING, LUBRICATING
-
55414105 TIRE, REAR, 26X10-14TIRE, REAR, 26X10-14
-
67547361 NUT, WHEEL, REARNUT, WHEEL, REAR
-
75438120 COVER, HUBCOVER, HUB
-
81521487 RIM, REAR, CAST (BLACK) (INCL. COVER)RIM, REAR, CAST (BLACK) (INCL. COVER)
-
97661404 PIN, COTTERPIN, COTTER
-
107547406 NUT, CASTLENUT, CASTLE
-
117555796 WASHER, CONEWASHER, CONE
-
125136946 HUB, WHEELHUB, WHEEL
-
135250205 DISC, BRAKEDISC, BRAKE
-
147518671 STUD, WHEELSTUD, WHEEL
-
151525017 VALVE, RIMVALVE, RIM
