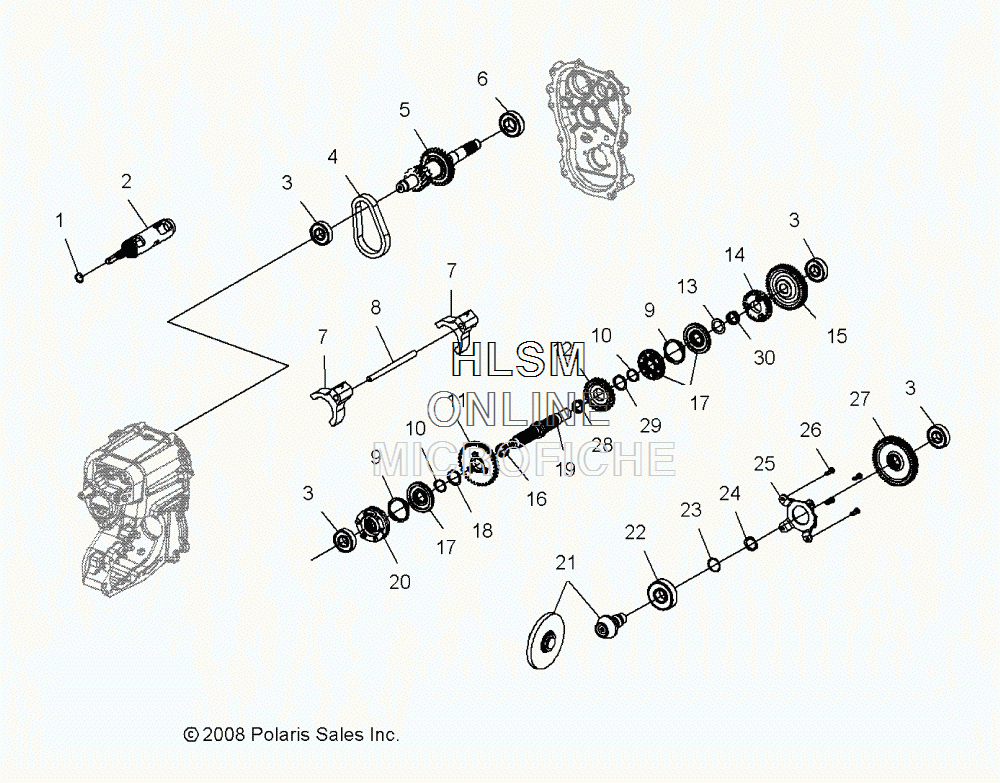

GEARCASE - MAIN - INTERNAL COMPONENTS для Polaris SPORTSMAN FOREST 800 6X6 - SAGEBRUSH GREEN METALLIC [A13CF76FF] - 2013 года выпуска`
-
№АртикулНазвание
-
1332716 ASM., GEARCASE (INCL. ALL)ASM., GEARCASE (INCL. ALL)
-
13233840 O-RINGO-RING
-
23234211 DRUM, SHIFTDRUM, SHIFT
-
33233018 BEARINGBEARING
-
43234264 CHAINCHAIN
-
53234680 SHAFT, INPUTSHAFT, INPUT
-
63233019 BEARINGBEARING
-
73234220 FORK, SHIFTFORK, SHIFT
-
83233860 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
93234144 SPRING, WAVESPRING, WAVE
-
103233850 RING, RETAININGRING, RETAINING
-
113233852 GEAR, 33TGEAR, 33T
-
123234290 SPROCKET, 38TSPROCKET, 38T
-
133233855 WASHERWASHER
-
143234681 GEAR, 35TGEAR, 35T
-
153234136 GEAR, 51TGEAR, 51T
-
163233718 BEARING, NEEDLEBEARING, NEEDLE
-
173233875 ENGAGEMENT DOGENGAGEMENT DOG
-
183233851 WASHERWASHER
-
193233892 SHAFT, REVERSESHAFT, REVERSE
-
203234040 ENGAGEMENT DOGENGAGEMENT DOG
-
213234911 SUBASM., GROUND SPIRIL BEVELSUBASM., GROUND SPIRIL BEVEL
-
223234055 BEARING, BALLBEARING, BALL
-
233233357 SPACERSPACER
-
243233106 RING, SNAPRING, SNAP
-
253234122 COVER, BEARINGCOVER, BEARING
-
263234086 SCREW, TORXSCREW, TORX
-
273234137 GEAR, 56TGEAR, 56T
-
283233103 BEARING, NEEDLEBEARING, NEEDLE
-
293233894 WASHERWASHER
-
303233009 BEARING, NEEDLEBEARING, NEEDLE
