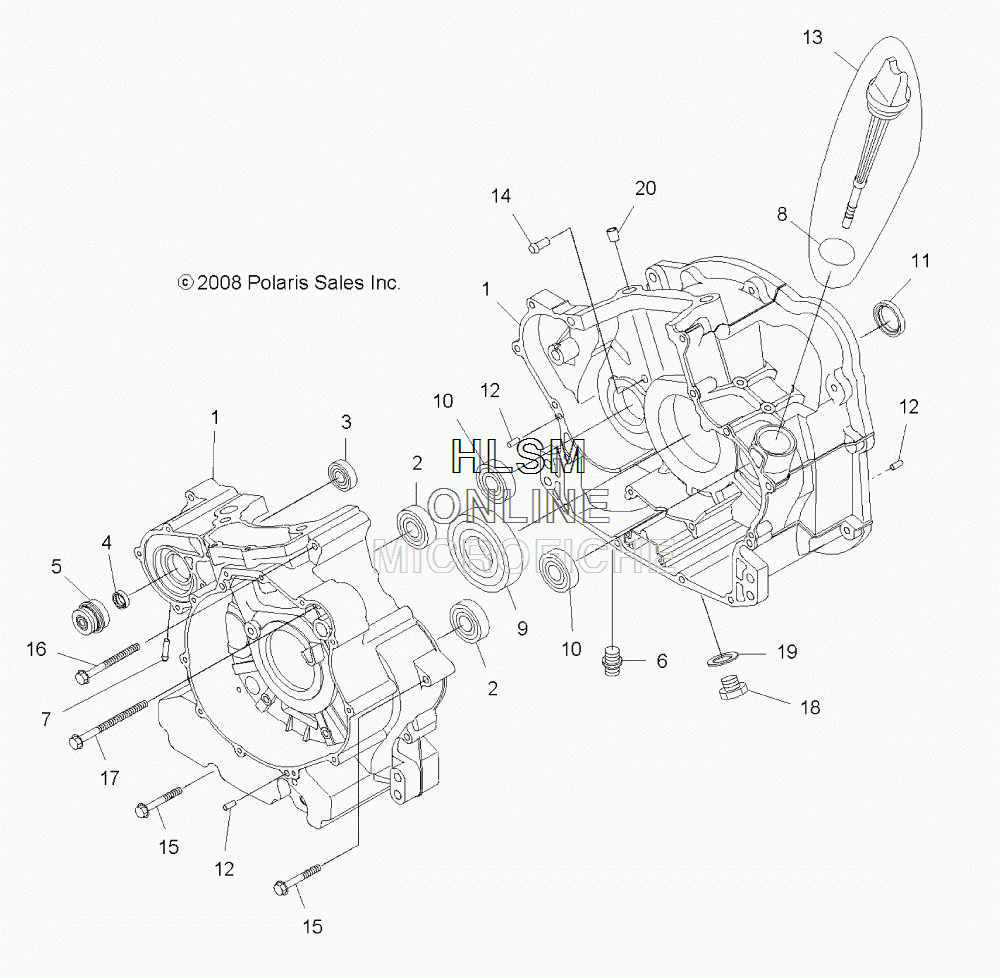

CRANKCASE для Polaris SPORTSMAN FOREST 550 - GOLD MIST METALLIC [A13ZN5EFF] - 2013 года выпуска
-
№АртикулНазвание
-
13090086 ASM., CRANKCASE (INCL. 1-5,7,9-12,14-17)ASM., CRANKCASE (INCL. 1-5,7,9-12,14-17)
-
23090087 BEARING, BALLBEARING, BALL
-
33084835 BEARING, BALLBEARING, BALL
-
43084836 SEAL, OILSEAL, OIL
-
53084837 SEAL, MACH.SEAL, MACH.
-
63089956 UNION, OIL FILTERUNION, OIL FILTER
-
73083798 PIPE, PULSEPIPE, PULSE
-
83090153 O-RINGO-RING
-
93090044 BEARING, BALLBEARING, BALL
-
103090087 BEARING, BALLBEARING, BALL
-
113090088 SEAL, OILSEAL, OIL
-
123086838 PIN, DOWELPIN, DOWEL
-
133090152 ASM., GAUGE, OIL (INCL. 8)ASM., GAUGE, OIL (INCL. 8)
-
143090200 PLUG, OIL JETPLUG, OIL JET
-
153087159 BOLT, FLANGEBOLT, FLANGE
-
163087940 BOLT, FLANGEBOLT, FLANGE
-
173090089 BOLT, FLANGEBOLT, FLANGE
-
183086749 PLUGPLUG
-
193082956 GASKETGASKET
-
203087266 KNOCK, PIPEKNOCK, PIPE
