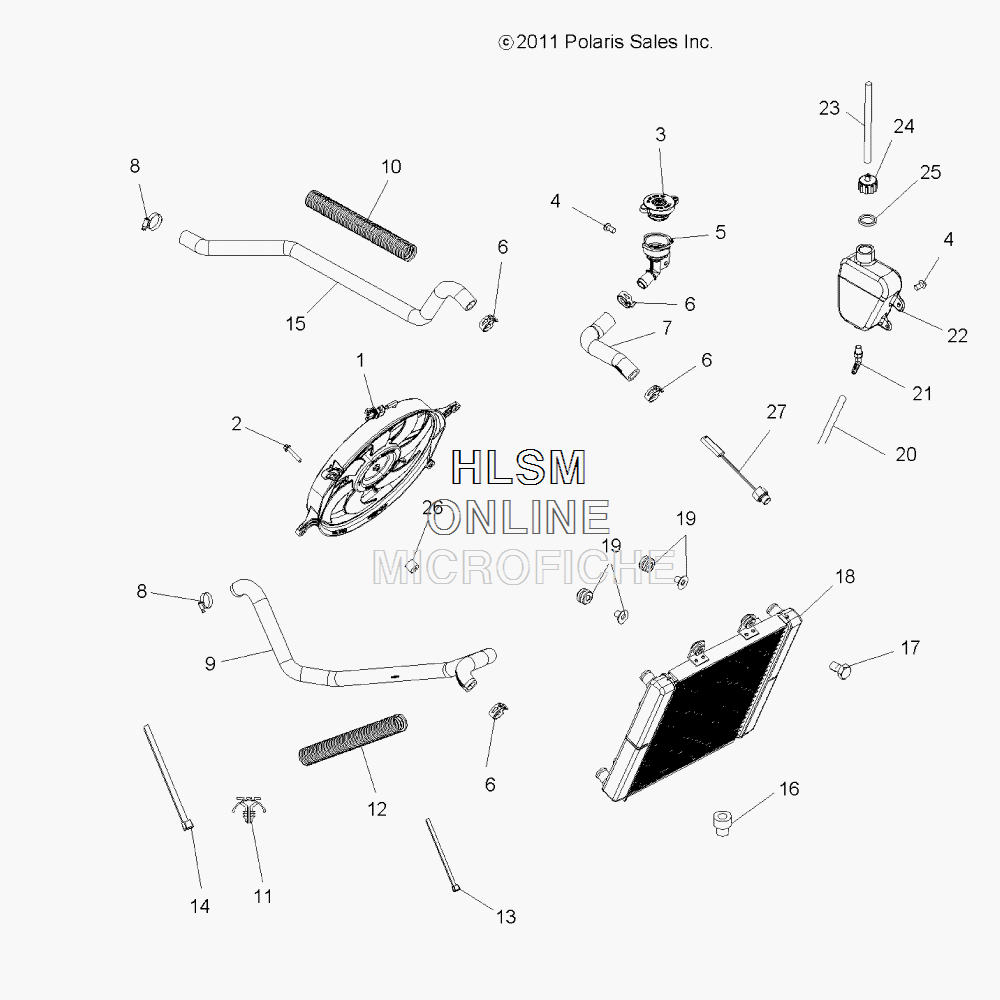

COOLING SYSTEM для Polaris SPORTSMAN FOREST 500 - (BRIGHT WHITE) [A13MH50FJ] - 2013 года выпуска
-
№АртикулНазвание
-
12411330 ASM., FAN AND MOTORASM., FAN AND MOTOR
-
27516827 SCREWSCREW
-
31240508 CAP, PRESSURECAP, PRESSURE
-
47512084 SCREWSCREW
-
55412402 NECK, FILLERNECK, FILLER
-
67080841 CLAMP, SPRINGBACKCLAMP, SPRINGBACK
-
75414228 HOSE, FILLER NECKHOSE, FILLER NECK
-
87080696 CLAMP, HOSECLAMP, HOSE
-
95414217 HOSE, RADIATOR, LOWERHOSE, RADIATOR, LOWER
-
105521793-25 CONDUIT, FLEXCONDUIT, FLEX
-
117080965 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
125521793-25 CONDUIT, FLEXCONDUIT, FLEX
-
137080138 CABLE TIECABLE TIE
-
147080492 CABLE TIECABLE TIE
-
155414218 HOSE, RADIATOR, UPPERHOSE, RADIATOR, UPPER
-
165410584 BUSHING, MOUNT, LOWER RADIATORBUSHING, MOUNT, LOWER RADIATOR
-
177515179 SCREWSCREW
-
181240522 ASM., RADIATOR (INCL. 19, DOES NOT INCL. 27)ASM., RADIATOR (INCL. 19, DOES NOT INCL. 27)
-
195413155 ASM., GROMMET AND INSERTASM., GROMMET AND INSERT
-
208450003-1525 LINE, FUELLINE, FUEL
-
217052065 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
225436936 TANK, SURGETANK, SURGE
-
238360009-600 LINE, FUELLINE, FUEL
-
245437635 CAP, OVERFLOW BOTTLE W/FITTINGCAP, OVERFLOW BOTTLE W/FITTING
-
255810279 GASKETGASKET
-
265137361 SPACERSPACER
-
274010808 SENSOR, THERMAL HARNESSSENSOR, THERMAL HARNESS
