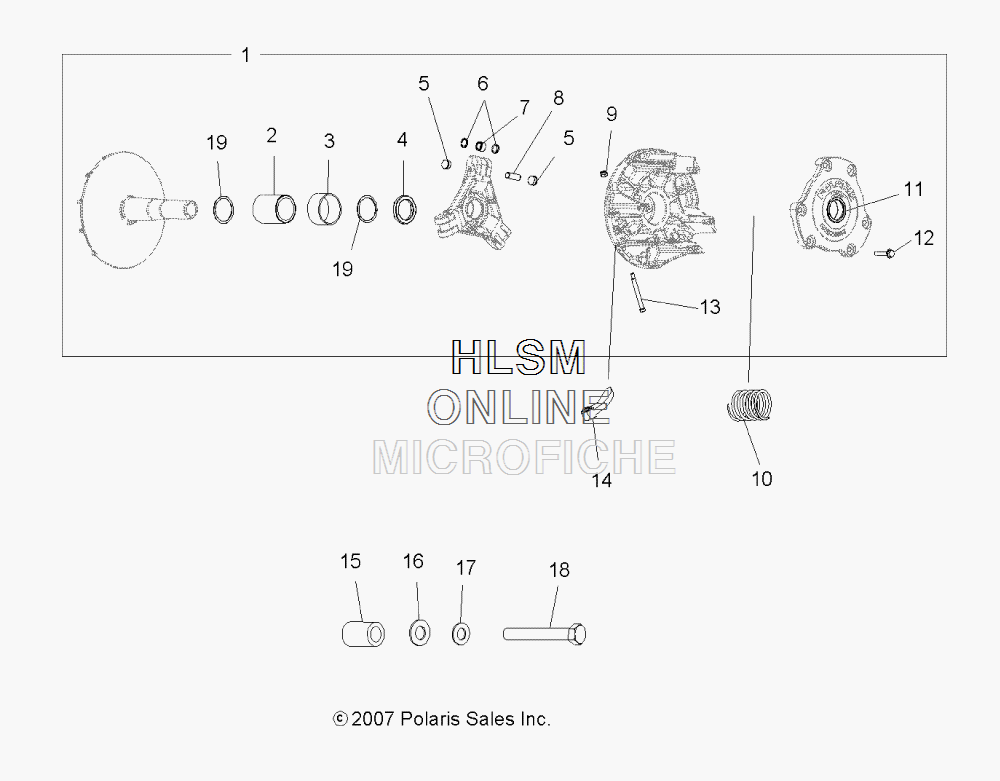

CLUTCH - PRIMARY для Polaris SPORTSMAN 800 EFI 6X6 - SAGEBRUSH GREEN METALLIC [A13CF76AA] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    1322749 ASM., CLUTCH (INCL. 1-9,11-13.19)
    ASM., CLUTCH (INCL. 1-9,11-13.19)
  • 2
    1520836 ASM., CLUTCH
    ASM., CLUTCH
  • 3
    3514492 BEARING
    BEARING
  • 4
    5632060 SPACER
    SPACER
  • 5
    5439254 BUTTON, CLUTCH
    BUTTON, CLUTCH
  • 6
    5438247 WASHER, CLUTCH, SPIDER ROLLER
    WASHER, CLUTCH, SPIDER ROLLER
  • 7
    1321622 ASM., ROLLER AND BUSHING
    ASM., ROLLER AND BUSHING
  • 8
    5020422 PIN, ROLLER
    PIN, ROLLER
  • 9
    7541906 NUT, FLEXLOC
    NUT, FLEXLOC
  • 10
    7043372 SPRING, CLUTCH
    SPRING, CLUTCH
  • 11
    3576510 BEARING, COVER
    BEARING, COVER
  • 12
    7518062 SCREW
    SCREW
  • 13
    7512266 BOLT, SHOULDER
    BOLT, SHOULDER
  • 14
    5632117 WEIGHT, SHIFT, 21-74, PM
    WEIGHT, SHIFT, 21-74, PM
  • 15
    5430261 BUSHING
    BUSHING
  • 16
    5210748 WASHER
    WASHER
  • 17
    7575202 WASHER, LOCK
    WASHER, LOCK
  • 18
    7519287 BOLT
    BOLT
  • 19
    7556335 WASHER
    WASHER
