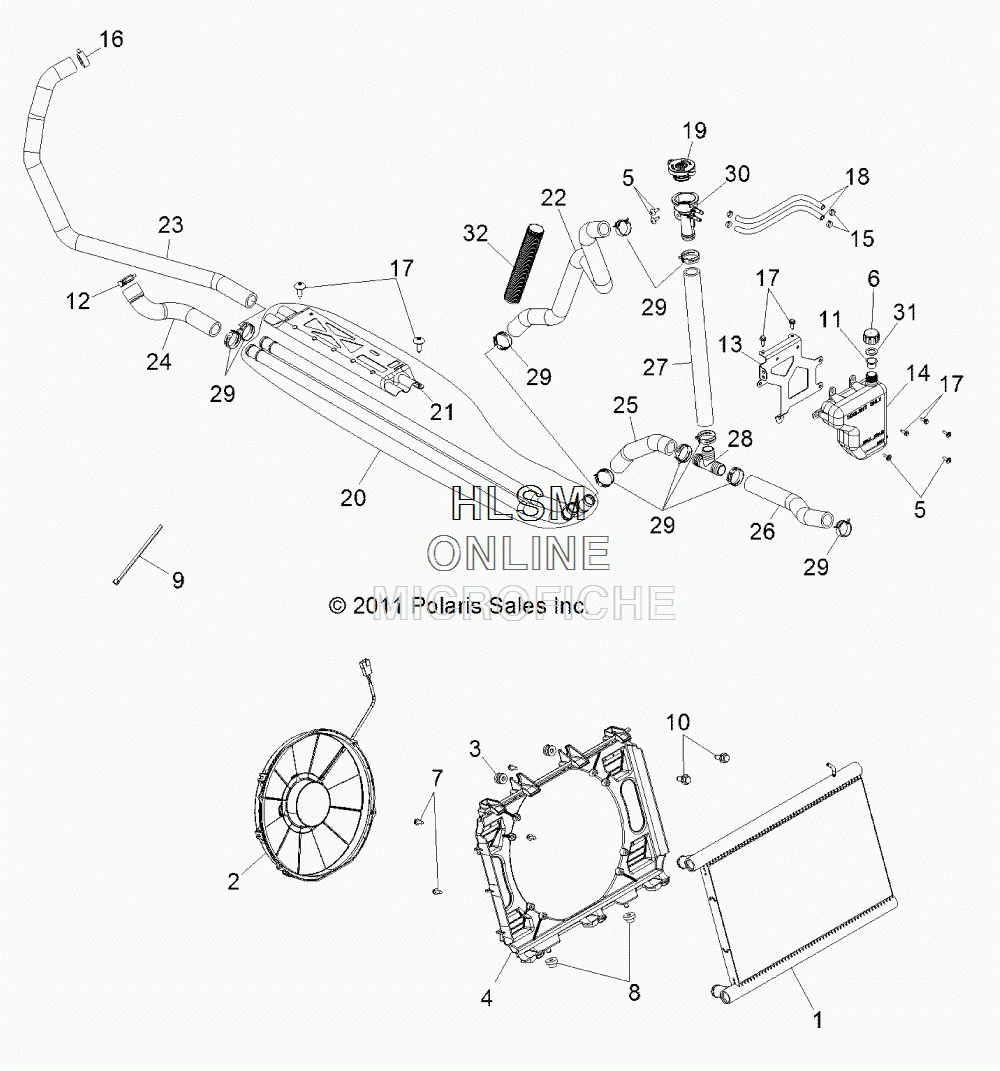

COOLING SYSTEM для Polaris RZR XP 900EFI STEALTH BLACK [R13JT87AL] - 2013 года выпуска
-
№АртикулНазвание
-
11240552 ASM., RADIATOR, COREASM., RADIATOR, CORE
-
22411807 FANFAN
-
35413509 ASM., GROMMET AND INSERTASM., GROMMET AND INSERT
-
45438591 SHROUD, FANSHROUD, FAN
-
57512084 SCREWSCREW
-
65430743 CAP, OVERFLOW BOTTLE, DRILLEDCAP, OVERFLOW BOTTLE, DRILLED
-
77512095 SCREWSCREW
-
85410584 BUSHING, MOUNT, RADIATOR, LOWERBUSHING, MOUNT, RADIATOR, LOWER
-
97080761 CABLE TIECABLE TIE
-
107519342 SCREWSCREW
-
115433774 PLUG, CAPPLUG, CAP
-
127080560 CLAMP, HOSECLAMP, HOSE
-
135255187 BRACKET, MOUNT, COOLANT FILLBRACKET, MOUNT, COOLANT FILL
-
145439004 TANK, SURGETANK, SURGE
-
157080003 CLAMP, HOSECLAMP, HOSE
-
167081192 CLAMP, HOSECLAMP, HOSE
-
177518529 SCREWSCREW
-
188450120-66 LINE, FUELLINE, FUEL
-
191240300 CAP, PRESSURECAP, PRESSURE
-
201240648 ASM., COOLANT TUB (INCL. 21)ASM., COOLANT TUB (INCL. 21)
-
215254161-329 BRACKET, FUEL TANK MOUNT, CENTER, BLACKBRACKET, FUEL TANK MOUNT, CENTER, BLACK
-
225414230 HOSE, UPPER, RADIATORHOSE, UPPER, RADIATOR
-
235414232 HOSE, ENGINE OUTLET, REARHOSE, ENGINE OUTLET, REAR
-
245414231 HOSE, ENGINE INLET, REARHOSE, ENGINE INLET, REAR
-
255414233 HOSE, LOWER, RADIATOR, SHORTHOSE, LOWER, RADIATOR, SHORT
-
265414234 HOSE, LOWER, RADIATOR, LONGHOSE, LOWER, RADIATOR, LONG
-
275414235 HOSE, LOWER, RADIATOR, FILLHOSE, LOWER, RADIATOR, FILL
-
287052373 CONNECTOR, TEECONNECTOR, TEE
-
297080844 CLAMP, SPRINGBANDCLAMP, SPRINGBAND
-
305439079 FILLER, REMOTE, COOLANTFILLER, REMOTE, COOLANT
-
315810279 GASKET, OVERFLOW CAPGASKET, OVERFLOW CAP
-
325521287-18 CONDUIT, FLEXCONDUIT, FLEX
-
11240552 ASM., RADIATOR, COREASM., RADIATOR, CORE
-
22411807 FANFAN
-
35413509 ASM., GROMMET AND INSERTASM., GROMMET AND INSERT
-
45438591 SHROUD, FANSHROUD, FAN
-
57512084 SCREWSCREW
-
65430743 CAP, OVERFLOW BOTTLE, DRILLEDCAP, OVERFLOW BOTTLE, DRILLED
-
77512095 SCREWSCREW
-
85410584 BUSHING, MOUNT, RADIATOR, LOWERBUSHING, MOUNT, RADIATOR, LOWER
-
97080761 CABLE TIECABLE TIE
-
107519342 SCREWSCREW
-
115433774 PLUG, CAPPLUG, CAP
-
127080560 CLAMP, HOSECLAMP, HOSE
-
135255187 BRACKET, MOUNT, COOLANT FILLBRACKET, MOUNT, COOLANT FILL
-
145439004 TANK, SURGETANK, SURGE
-
157080003 CLAMP, HOSECLAMP, HOSE
-
167081192 CLAMP, HOSECLAMP, HOSE
-
177518529 SCREWSCREW
-
188450120-66 LINE, FUELLINE, FUEL
-
191240300 CAP, PRESSURECAP, PRESSURE
-
201240648 ASM., COOLANT TUB (INCL. 21)ASM., COOLANT TUB (INCL. 21)
-
215254161-329 BRACKET, FUEL TANK MOUNT, CENTER, BLACKBRACKET, FUEL TANK MOUNT, CENTER, BLACK
-
225414230 HOSE, UPPER, RADIATORHOSE, UPPER, RADIATOR
-
235414232 HOSE, ENGINE OUTLET, REARHOSE, ENGINE OUTLET, REAR
-
245414231 HOSE, ENGINE INLET, REARHOSE, ENGINE INLET, REAR
-
255414233 HOSE, LOWER, RADIATOR, SHORTHOSE, LOWER, RADIATOR, SHORT
-
265414234 HOSE, LOWER, RADIATOR, LONGHOSE, LOWER, RADIATOR, LONG
-
275414235 HOSE, LOWER, RADIATOR, FILLHOSE, LOWER, RADIATOR, FILL
-
287052373 CONNECTOR, TEECONNECTOR, TEE
-
297080844 CLAMP, SPRINGBANDCLAMP, SPRINGBAND
-
305439079 FILLER, REMOTE, COOLANTFILLER, REMOTE, COOLANT
-
315810279 GASKET, OVERFLOW CAPGASKET, OVERFLOW CAP
-
325521287-18 CONDUIT, FLEXCONDUIT, FLEX
