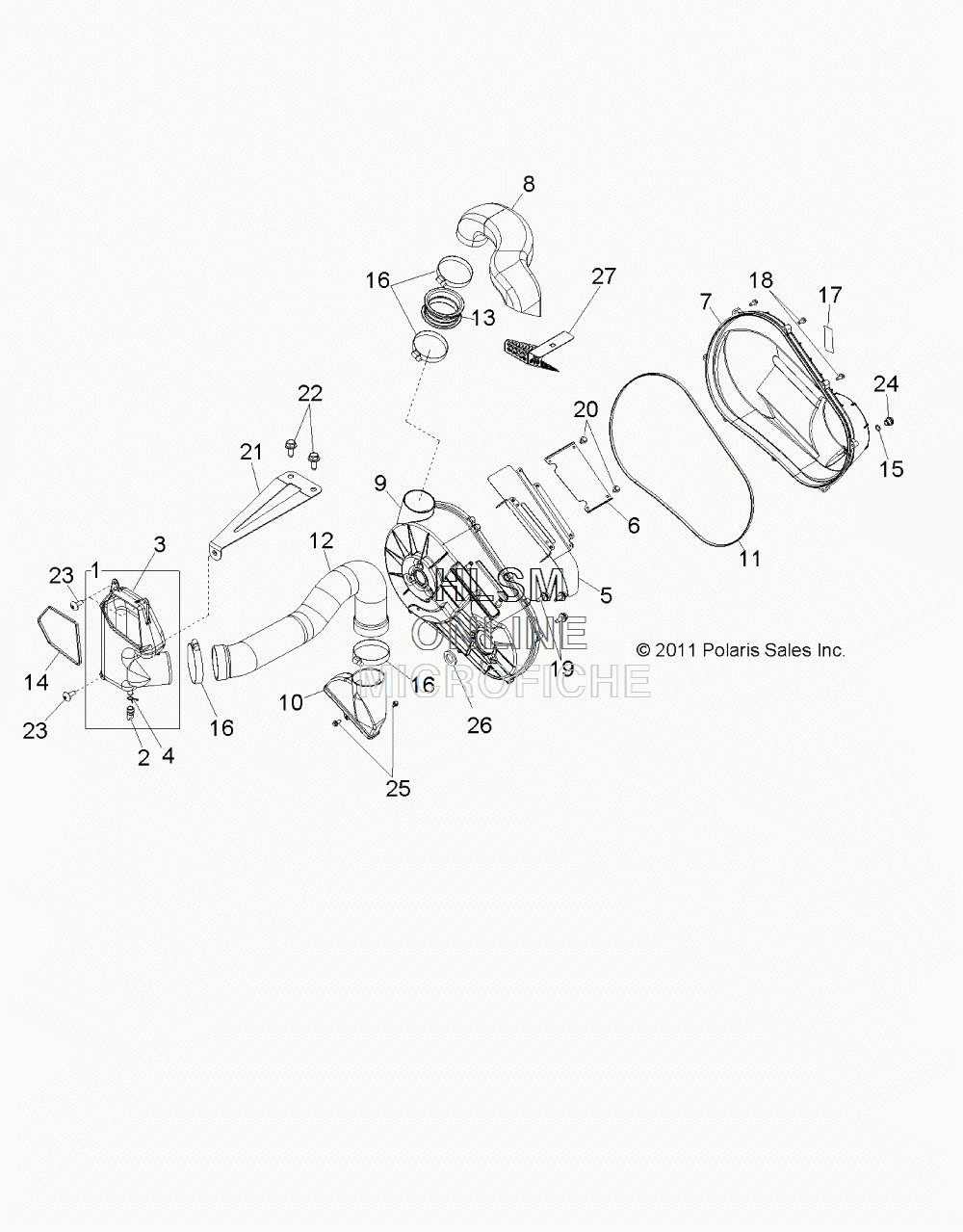

CLUTCH COVER AND DUCTING для Polaris RZR XP 900EFI INDY RED [R13JT87AD] - 2013 года выпуска
-
№АртикулНазвание
-
11240635 ASM., INTAKE, CLUTCH (INCL. 2-4)ASM., INTAKE, CLUTCH (INCL. 2-4)
-
25412960 CAP, DRAINCAP, DRAIN
-
35438705 BOX, INTAKE, CLUTCHBOX, INTAKE, CLUTCH
-
47081488 CLAMP, HOSECLAMP, HOSE
-
55255329 PLATE, GUARD, CLUTCH COVERPLATE, GUARD, CLUTCH COVER
-
65439156 PLATE, TOP, GUARDPLATE, TOP, GUARD
-
72634160 ASM., COVER, CLUTCH, OUTER (INCL. 15,17,24)ASM., COVER, CLUTCH, OUTER (INCL. 15,17,24)
-
85438326 DUCT, CLUTCH, AIR OUTLETDUCT, CLUTCH, AIR OUTLET
-
95438327 COVER, CLUTCH, INNERCOVER, CLUTCH, INNER
-
105438951 DUCT, CLUTCH, AIR INLETDUCT, CLUTCH, AIR INLET
-
115521738 SEAL, OUTER, CLUTCH COVERSEAL, OUTER, CLUTCH COVER
-
125813638 HOSE, INTAKE, CLUTCHHOSE, INTAKE, CLUTCH
-
135813639 BOOT, INTAKE, CLUTCHBOOT, INTAKE, CLUTCH
-
145813750 SEAL, INTAKE, FOAMSEAL, INTAKE, FOAM
-
155410542 O-RINGO-RING
-
167081626 CLAMP, WORM DRIVECLAMP, WORM DRIVE
-
177177469 DECAL, BELT, CAUTION/CHECKDECAL, BELT, CAUTION/CHECK
-
187512094 SCREWSCREW
-
197519278 ASM., BOLT/WASHERASM., BOLT/WASHER
-
207661855 RIVETRIVET
-
215254859 BRACKET, INTAKE BOXBRACKET, INTAKE BOX
-
227518555 BOLTBOLT
-
237517685 SCREWSCREW
-
245434264 PLUG, DRAINPLUG, DRAIN
-
257512095 SCREWSCREW
-
265813708 SEAL, COVER, PTOSEAL, COVER, PTO
-
275254860 BRACKET, SCREEN, BELTBRACKET, SCREEN, BELT
-
11240635 ASM., INTAKE, CLUTCH (INCL. 2-4)ASM., INTAKE, CLUTCH (INCL. 2-4)
-
25412960 CAP, DRAINCAP, DRAIN
-
35438705 BOX, INTAKE, CLUTCHBOX, INTAKE, CLUTCH
-
47081488 CLAMP, HOSECLAMP, HOSE
-
55255329 PLATE, GUARD, CLUTCH COVERPLATE, GUARD, CLUTCH COVER
-
65439156 PLATE, TOP, GUARDPLATE, TOP, GUARD
-
72634160 ASM., COVER, CLUTCH, OUTER (INCL. 15,17,24)ASM., COVER, CLUTCH, OUTER (INCL. 15,17,24)
-
85438326 DUCT, CLUTCH, AIR OUTLETDUCT, CLUTCH, AIR OUTLET
-
95438327 COVER, CLUTCH, INNERCOVER, CLUTCH, INNER
-
105438951 DUCT, CLUTCH, AIR INLETDUCT, CLUTCH, AIR INLET
-
115521738 SEAL, OUTER, CLUTCH COVERSEAL, OUTER, CLUTCH COVER
-
125813638 HOSE, INTAKE, CLUTCHHOSE, INTAKE, CLUTCH
-
135813639 BOOT, INTAKE, CLUTCHBOOT, INTAKE, CLUTCH
-
145813750 SEAL, INTAKE, FOAMSEAL, INTAKE, FOAM
-
155410542 O-RINGO-RING
-
167081626 CLAMP, WORM DRIVECLAMP, WORM DRIVE
-
177177469 DECAL, BELT, CAUTION/CHECKDECAL, BELT, CAUTION/CHECK
-
187512094 SCREWSCREW
-
197519278 ASM., BOLT/WASHERASM., BOLT/WASHER
-
207661855 RIVETRIVET
-
215254859 BRACKET, INTAKE BOXBRACKET, INTAKE BOX
-
227518555 BOLTBOLT
-
237517685 SCREWSCREW
-
245434264 PLUG, DRAINPLUG, DRAIN
-
257512095 SCREWSCREW
-
265813708 SEAL, COVER, PTOSEAL, COVER, PTO
-
275254860 BRACKET, SCREEN, BELTBRACKET, SCREEN, BELT
