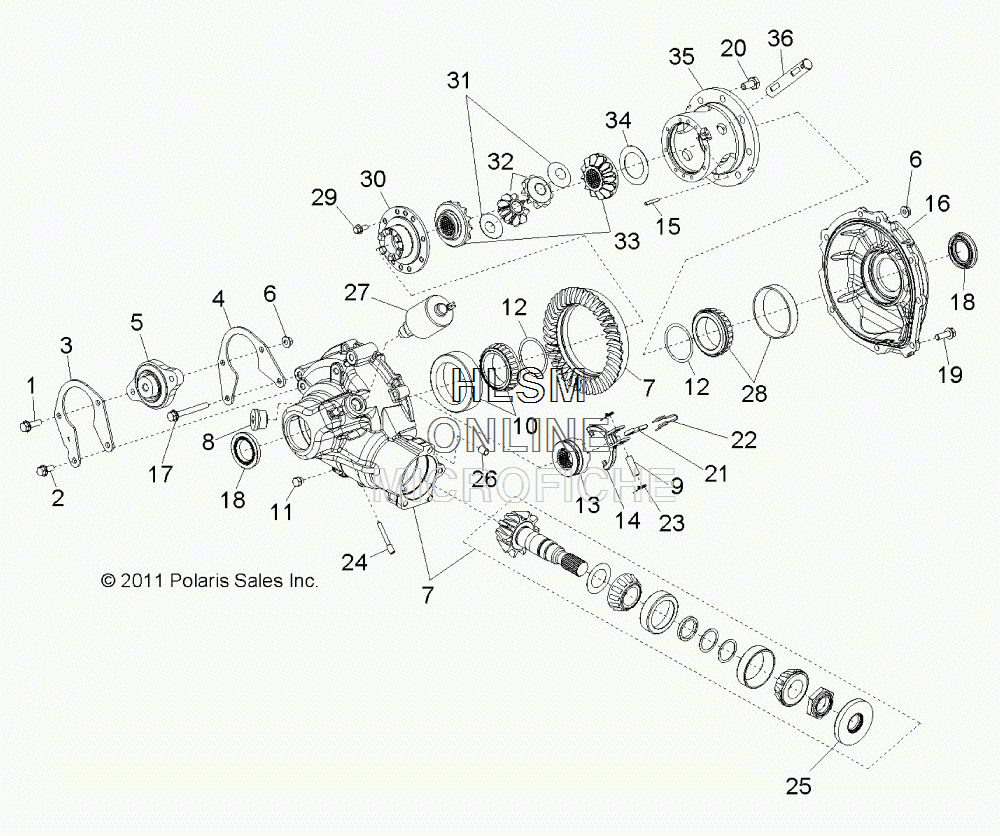

GEARCASE- DIFFERENTIAL- INTERNAL COMPONENTS для Polaris RZR S 800 EFI ISREAL ORANGE MADNESS [R13VE76FX] - 2013 года выпуска`
-
№АртикулНазвание
-
-3235361 ASM., CARRIER (INCL. ALL)ASM., CARRIER (INCL. ALL)
-
13234618 SCREWSCREW
-
23234511 SCREW, FLANGESCREW, FLANGE
-
35250016 BRACKET, DIFFERENTIAL MOUNT, REAR, RIGHT HANDBRACKET, DIFFERENTIAL MOUNT, REAR, RIGHT HAND
-
45250329 BRACKET, DIFFERENTIAL MOUNT, REAR, LEFT HANDBRACKET, DIFFERENTIAL MOUNT, REAR, LEFT HAND
-
51332450 MOUNT, DIFFERENTIAL, REARMOUNT, DIFFERENTIAL, REAR
-
63234500 NUT, FLANGENUT, FLANGE
-
73235362 ASM., HOUSING KIT (INCL. 18,25)ASM., HOUSING KIT (INCL. 18,25)
-
85133736 PLUG, FILL W/O-RINGPLUG, FILL W/O-RING
-
92203507 BUSHING, PIN LOCKBUSHING, PIN LOCK
-
103514657 BEARING, BALLBEARING, BALL
-
115133731 PLUG, DRAINPLUG, DRAIN
-
123234504 KIT, SHIMKIT, SHIM
-
135137196 GEAR, CLUTCHGEAR, CLUTCH
-
145133759 YOKE, SHIFTYOKE, SHIFT
-
153234487 PIN, SPRINGPIN, SPRING
-
163235359 ASM., COVER, REAR (INCL. 18)ASM., COVER, REAR (INCL. 18)
-
173234501 SCREWSCREW
-
183610159 SEAL, OILSEAL, OIL
-
197518172 SCREW, FLANGEDSCREW, FLANGED
-
207518173 SCREWSCREW
-
215133760 LEVER, SHIFTLEVER, SHIFT
-
227042209 SPRING, SHIFT LEVERSPRING, SHIFT LEVER
-
237042210 SPRING, SHIFT RETURNSPRING, SHIFT RETURN
-
242203503 ASM., PIN LOCKASM., PIN LOCK
-
253610102 SEALSEAL
-
263234503 BUSHING, DOWELBUSHING, DOWEL
-
272411634 SOLENOID, DIFF LOCKSOLENOID, DIFF LOCK
-
283514435 BEARING, TAPERED ROLLERBEARING, TAPERED ROLLER
-
293234885 SCREW, FLANGE HEADSCREW, FLANGE HEAD
-
303234883 CASE, DIFF COVER, HALFCASE, DIFF COVER, HALF
-
317556347 WASHER, THRUST, PINIONWASHER, THRUST, PINION
-
325134903 GEAR, DIFF, PINION MATEGEAR, DIFF, PINION MATE
-
333234894 GEAR, DIFF SIDEGEAR, DIFF SIDE
-
343234884 WASHER, THRUST, SIDE GEARWASHER, THRUST, SIDE GEAR
-
353234882 CASE, DIFF, HALFCASE, DIFF, HALF
-
365134902 PIN, DIFF, CROSSPIN, DIFF, CROSS
-
-3235361 ASM., CARRIER (INCL. ALL)ASM., CARRIER (INCL. ALL)
-
13234618 SCREWSCREW
-
23234511 SCREW, FLANGESCREW, FLANGE
-
35250016 BRACKET, DIFFERENTIAL MOUNT, REAR, RIGHT HANDBRACKET, DIFFERENTIAL MOUNT, REAR, RIGHT HAND
-
45250329 BRACKET, DIFFERENTIAL MOUNT, REAR, LEFT HANDBRACKET, DIFFERENTIAL MOUNT, REAR, LEFT HAND
-
51332450 MOUNT, DIFFERENTIAL, REARMOUNT, DIFFERENTIAL, REAR
-
63234500 NUT, FLANGENUT, FLANGE
-
73235362 ASM., HOUSING KIT (INCL. 18,25)ASM., HOUSING KIT (INCL. 18,25)
-
85133736 PLUG, FILL W/O-RINGPLUG, FILL W/O-RING
-
92203507 BUSHING, PIN LOCKBUSHING, PIN LOCK
-
103514657 BEARING, BALLBEARING, BALL
-
115133731 PLUG, DRAINPLUG, DRAIN
-
123234504 KIT, SHIMKIT, SHIM
-
135137196 GEAR, CLUTCHGEAR, CLUTCH
-
145133759 YOKE, SHIFTYOKE, SHIFT
-
153234487 PIN, SPRINGPIN, SPRING
-
163235359 ASM., COVER, REAR (INCL. 18)ASM., COVER, REAR (INCL. 18)
-
173234501 SCREWSCREW
-
183610159 SEAL, OILSEAL, OIL
-
197518172 SCREW, FLANGEDSCREW, FLANGED
-
207518173 SCREWSCREW
-
215133760 LEVER, SHIFTLEVER, SHIFT
-
227042209 SPRING, SHIFT LEVERSPRING, SHIFT LEVER
-
237042210 SPRING, SHIFT RETURNSPRING, SHIFT RETURN
-
242203503 ASM., PIN LOCKASM., PIN LOCK
-
253610102 SEALSEAL
-
263234503 BUSHING, DOWELBUSHING, DOWEL
-
272411634 SOLENOID, DIFF LOCKSOLENOID, DIFF LOCK
-
283514435 BEARING, TAPERED ROLLERBEARING, TAPERED ROLLER
-
293234885 SCREW, FLANGE HEADSCREW, FLANGE HEAD
-
303234883 CASE, DIFF COVER, HALFCASE, DIFF COVER, HALF
-
317556347 WASHER, THRUST, PINIONWASHER, THRUST, PINION
-
325134903 GEAR, DIFF, PINION MATEGEAR, DIFF, PINION MATE
-
333234894 GEAR, DIFF SIDEGEAR, DIFF SIDE
-
343234884 WASHER, THRUST, SIDE GEARWASHER, THRUST, SIDE GEAR
-
353234882 CASE, DIFF, HALFCASE, DIFF, HALF
-
365134902 PIN, DIFF, CROSSPIN, DIFF, CROSS
