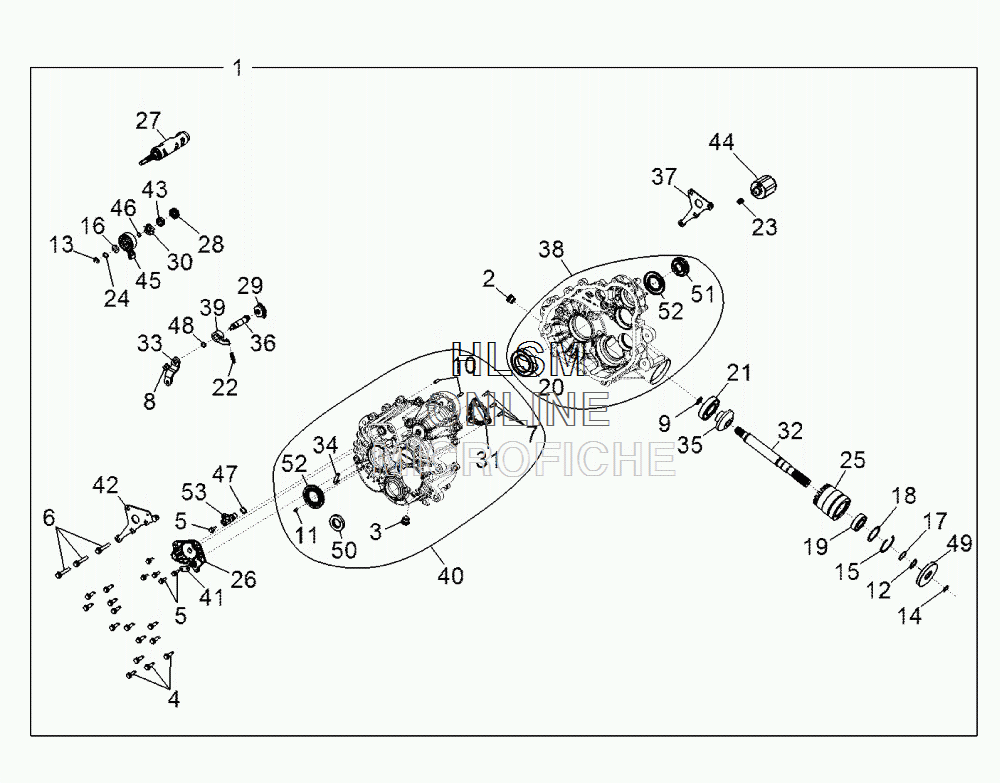

MAIN GEARCASE для Polaris RZR 570 EFI INTERNATIONAL INDY RED [R13VH57FX] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    1333133 ASM. GEARCASE
    ASM. GEARCASE
  • 2
    3234755 PLUG
    PLUG
  • 3
    3234756 PLUG, MAGNETIC
    PLUG, MAGNETIC
  • 4
    3234898 SCREW, HEX FLANGE HEAD
    SCREW, HEX FLANGE HEAD
  • 5
    3235206 SCREW, HEX FLANGE HEAD
    SCREW, HEX FLANGE HEAD
  • 6
    3235207 SCREW, HEX FLANGE
    SCREW, HEX FLANGE
  • 7
    3235332 SCREW, SOCKET HEAD, CAP
    SCREW, SOCKET HEAD, CAP
  • 8
    3235210 NUT, LOCK HEX FLANGE, NYLON
    NUT, LOCK HEX FLANGE, NYLON
  • 9
    3235213 WASHER
    WASHER
  • 10
    3234330 PIN, DOWEL
    PIN, DOWEL
  • 11
    7043746 PIN, SPRING, SLOTTED
    PIN, SPRING, SLOTTED
  • 12
    3233106 RING, RETAINING BASIC, EXTERNAL
    RING, RETAINING BASIC, EXTERNAL
  • 13
    3233834 RING, SNAP
    RING, SNAP
  • 14
    3234318 RING, RETAINING, EXTERNAL
    RING, RETAINING, EXTERNAL
  • 15
    3234269 RING, RETAINING BASIC, INTERNAL
    RING, RETAINING BASIC, INTERNAL
  • 16
    3234642 WASHER, THRUST
    WASHER, THRUST
  • 17
    3234272 SHIM
    SHIM
  • 18
    3234273 SHIM
    SHIM
  • 19
    3233019 BEARING, BALL
    BEARING, BALL
  • 20
    3233268 BEARING, BALL
    BEARING, BALL
  • 21
    3234065 BEARING, BALL
    BEARING, BALL
  • 22
    3233820 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 23
    3234277 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 24
    3235327 SPRING, WASHER
    SPRING, WASHER
  • 25
    3234278 TUBE, SNORKEL MACH
    TUBE, SNORKEL MACH
  • 26
    3234188 COVER, SECTOR GEARS, MACH
    COVER, SECTOR GEARS, MACH
  • 27
    3235463 DRUM, SHIFT MACH
    DRUM, SHIFT MACH
  • 28
    3233839 GEAR, SECTOR 16T
    GEAR, SECTOR 16T
  • 29
    3233832 GEAR, SECTOR, 31T
    GEAR, SECTOR, 31T
  • 30
    3235453 STAR, DETENT
    STAR, DETENT
  • 31
    3235456 PLATE, PARK 12-FACE
    PLATE, PARK 12-FACE
  • 32
    3235394 SHAFT, FRONT OUTPUT
    SHAFT, FRONT OUTPUT
  • 33
    3235397 BELLCRANK
    BELLCRANK
  • 34
    3234230 TUBE, VENT
    TUBE, VENT
  • 35
    3235237 GEAR, 13T SNORKEL
    GEAR, 13T SNORKEL
  • 36
    3235238 SHAFT, SHIFT
    SHAFT, SHIFT
  • 37
    3235239 WELDMENT, REAR MOUNT BRACKET
    WELDMENT, REAR MOUNT BRACKET
  • 38
    3235422 SUBASSY, LEFT HAND CASE (INCL. ALL HARDWARE)
    SUBASSY, LEFT HAND CASE (INCL. ALL HARDWARE)
  • 39
    3235452 SUBASSY, DETENT ROLLER
    SUBASSY, DETENT ROLLER
  • 40
    3235446 SUBASSY, RIGHT HAND CASE (INCL. ALL HARDWARE)
    SUBASSY, RIGHT HAND CASE (INCL. ALL HARDWARE)
  • 41
    3235350 BRACKET, WIRE HARNESS
    BRACKET, WIRE HARNESS
  • 42
    3235351 BRACKET, REAR MOUNT
    BRACKET, REAR MOUNT
  • 43
    3235243 SPACER
    SPACER
  • 44
    3234298 SOLENOID
    SOLENOID
  • 45
    7661999 SWITCH, ROTARY , 2 PIN RESISTIVE
    SWITCH, ROTARY , 2 PIN RESISTIVE
  • 46
    3233076 O-RING
    O-RING
  • 47
    3234302 O-RING
    O-RING
  • 48
    3233869 O-RING
    O-RING
  • 49
    3234113 SEAL, TRIPLE LIP
    SEAL, TRIPLE LIP
  • 50
    3234892 SEAL, TRIPLE LIP
    SEAL, TRIPLE LIP
  • 51
    3234851 SEAL, DUAL LIP
    SEAL, DUAL LIP
  • 52
    3235052 SEAL, TRIPLE LIP
    SEAL, TRIPLE LIP
  • 53
    4012167 SENSOR, SPEED
    SENSOR, SPEED
