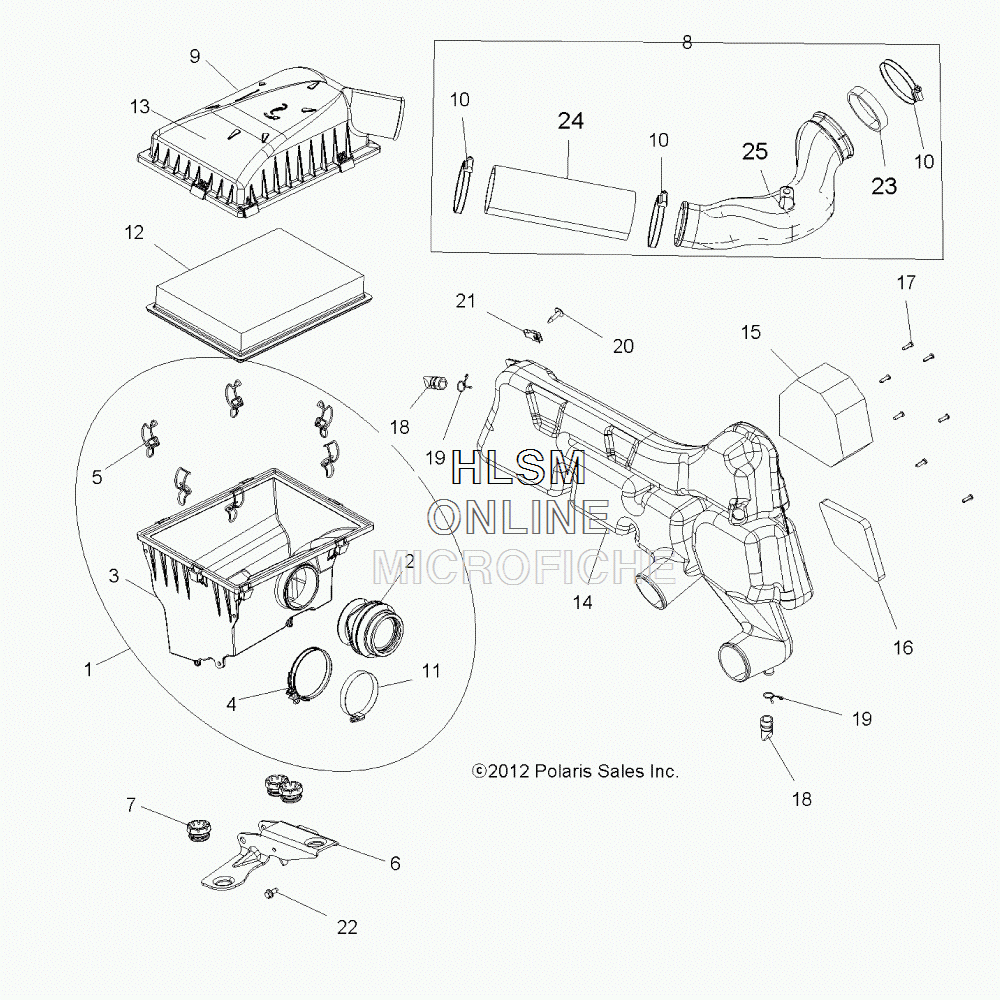

AIR INTAKE SYSTEM для Polaris RZR 570 EFI INDY RED [R13VH57AD] - 2013 года выпуска
-
№АртикулНазвание
-
11240633 ASM., AIRBOX, MAIN (INCL. 1-5)ASM., AIRBOX, MAIN (INCL. 1-5)
-
25414134 BOOT, AIRBOXBOOT, AIRBOX
-
35438897 BASE, AIRBOXBASE, AIRBOX
-
47081312 CLAMP, AIRBOXCLAMP, AIRBOX
-
57081707 CLIP, AIRBOXCLIP, AIRBOX
-
65254922-329 BRACKET, MOUNT, BLACKBRACKET, MOUNT, BLACK
-
75412507 GROMMETGROMMET
-
82204982 KIT, INTAKE (INCL. 10,23-25) (REPLACES HOSE FROM EARLY BUILD BEFORE 8/07/12)KIT, INTAKE (INCL. 10,23-25) (REPLACES HOSE FROM EARLY BUILD BEFORE 8/07/12)
-
95450157 LID, AIRBOXLID, AIRBOX
-
107080707 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
117081623 CLAMP, HOSECLAMP, HOSE
-
127081706 FILTER, AIRBOX, MAINFILTER, AIRBOX, MAIN
-
137177872 DECAL, FILTER MAINTENANCEDECAL, FILTER MAINTENANCE
-
145438884 BOX, INTAKE (BUILT 3/28/13 AND BEFORE)BOX, INTAKE (BUILT 3/28/13 AND BEFORE)
-
145450598 BOX, INTAKE (BUILT 3/29/13 AND AFTER)BOX, INTAKE (BUILT 3/29/13 AND AFTER)
-
155813713 FILTER, ENGINE INFILTER, ENGINE IN
-
165813712 FILTER, CLUTCH INFILTER, CLUTCH IN
-
177512026 SCREWSCREW
-
185412960 CAP, DRAINCAP, DRAIN
-
197080694 CLAMP, HOSECLAMP, HOSE
-
207517685 SCREWSCREW
-
217670145 NUT, UNUT, U
-
227518529 SCREWSCREW
-
235414483 HOSE, SEAL, ENGINE INLETHOSE, SEAL, ENGINE INLET
-
245414484 HOSE, ENGINE, INLETHOSE, ENGINE, INLET
-
255439759 DUCT, ENGINE, INLETDUCT, ENGINE, INLET
-
11240633 ASM., AIRBOX, MAIN (INCL. 1-5)ASM., AIRBOX, MAIN (INCL. 1-5)
-
25414134 BOOT, AIRBOXBOOT, AIRBOX
-
35438897 BASE, AIRBOXBASE, AIRBOX
-
47081312 CLAMP, AIRBOXCLAMP, AIRBOX
-
57081707 CLIP, AIRBOXCLIP, AIRBOX
-
65254922-329 BRACKET, MOUNT, BLACKBRACKET, MOUNT, BLACK
-
75412507 GROMMETGROMMET
-
82204982 KIT, INTAKE (INCL. 10,23-25) (REPLACES HOSE FROM EARLY BUILD BEFORE 8/07/12)KIT, INTAKE (INCL. 10,23-25) (REPLACES HOSE FROM EARLY BUILD BEFORE 8/07/12)
-
95450157 LID, AIRBOXLID, AIRBOX
-
107080707 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
117081623 CLAMP, HOSECLAMP, HOSE
-
127081706 FILTER, AIRBOX, MAINFILTER, AIRBOX, MAIN
-
137177872 DECAL, FILTER MAINTENANCEDECAL, FILTER MAINTENANCE
-
145438884 BOX, INTAKE (BUILT 3/28/13 AND BEFORE)BOX, INTAKE (BUILT 3/28/13 AND BEFORE)
-
145450598 BOX, INTAKE (BUILT 3/29/13 AND AFTER)BOX, INTAKE (BUILT 3/29/13 AND AFTER)
-
155813713 FILTER, ENGINE INFILTER, ENGINE IN
-
165813712 FILTER, CLUTCH INFILTER, CLUTCH IN
-
177512026 SCREWSCREW
-
185412960 CAP, DRAINCAP, DRAIN
-
197080694 CLAMP, HOSECLAMP, HOSE
-
207517685 SCREWSCREW
-
217670145 NUT, UNUT, U
-
227518529 SCREWSCREW
-
235414483 HOSE, SEAL, ENGINE INLETHOSE, SEAL, ENGINE INLET
-
245414484 HOSE, ENGINE, INLETHOSE, ENGINE, INLET
-
255439759 DUCT, ENGINE, INLETDUCT, ENGINE, INLET
