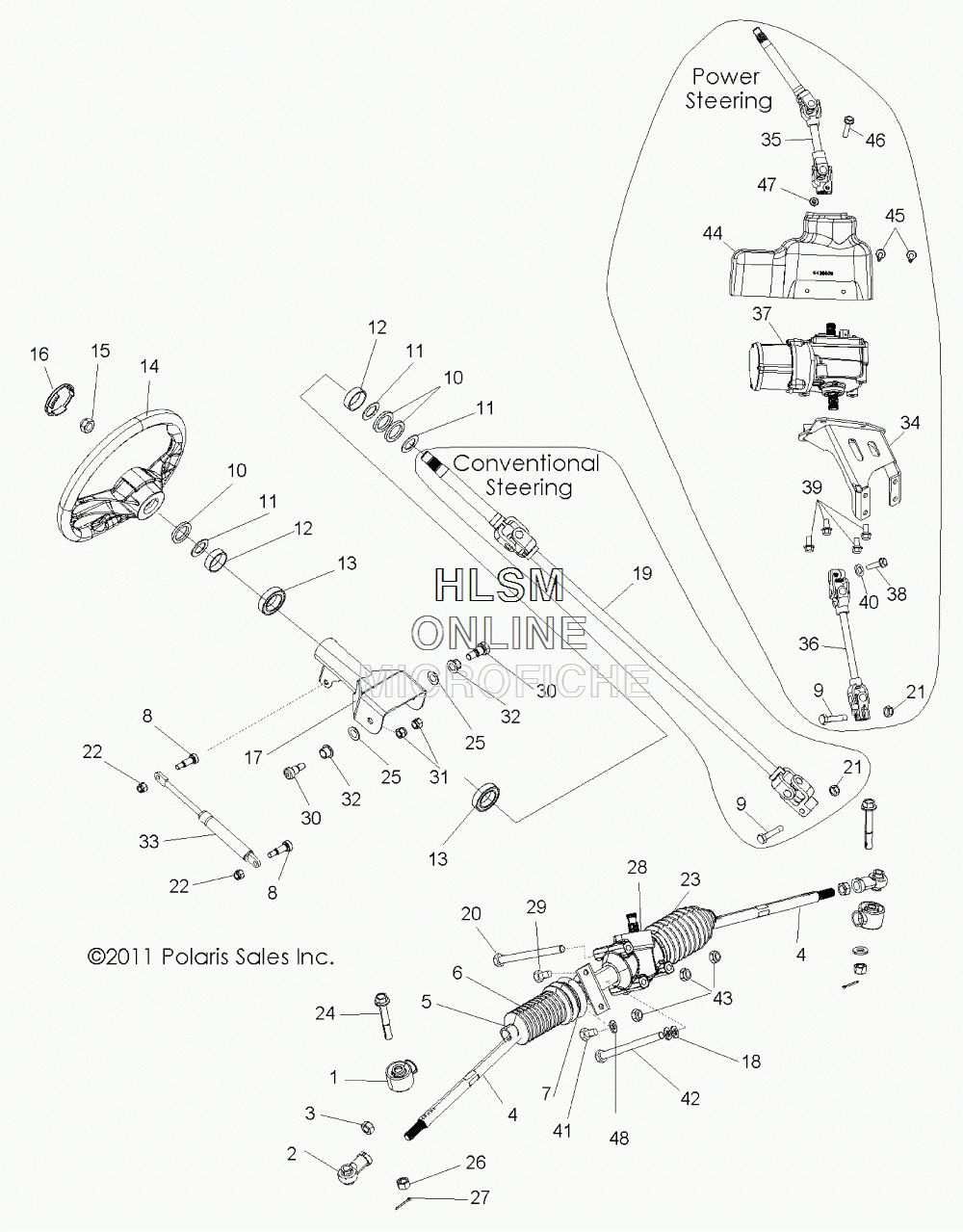

STEERING ASM. для Polaris RZR 4 800 EFI BLUE FIRE [R13XE76EAI] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    5411920 BOOT, SEAL, ROD END
    BOOT, SEAL, ROD END
  • 2
    7061054 ROD END
    ROD END
  • 3
    7547028 NUT, JAM, LEFT HAND
    NUT, JAM, LEFT HAND
  • 5
    7080978 CLAMP, BOOT, SMALL
    CLAMP, BOOT, SMALL
  • 6
    5412013 BOOT, PASSENGER, SIDE RACK
    BOOT, PASSENGER, SIDE RACK
  • 7
    7080979 CLAMP, BOOT, LARGE
    CLAMP, BOOT, LARGE
  • 8
    7518786 BOLT, SHOULDER
    BOLT, SHOULDER
  • 9
    7518644 SCREW
    SCREW
  • 10
    7556482 WASHER
    WASHER
  • 11
    7556483 WASHER
    WASHER
  • 12
    5252796 SPACER, STEERING SHAFT
    SPACER, STEERING SHAFT
  • 13
    3514686 BEARING, STEERING
    BEARING, STEERING
  • 14
    1823623 WHEEL, STEERING
    WHEEL, STEERING
  • 15
    7547188 NUT
    NUT
  • 16
    5436536 CAP, STEERING WHEEL
    CAP, STEERING WHEEL
  • 17
    1017621 ASM., TUBE, PIVOT, BLACK (INCL. 13)
    ASM., TUBE, PIVOT, BLACK (INCL. 13)
  • 18
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 19
    1823681 SHAFT, STEERING, UPPER/LOWER
    SHAFT, STEERING, UPPER/LOWER
  • 20
    7518895 BOLT (LOCK PATCH)
    BOLT (LOCK PATCH)
  • 21
    7547385 NUT, NYLOK
    NUT, NYLOK
  • 22
    7546703 NUT, NYLOK
    NUT, NYLOK
  • 23
    5412012 BOOT, DRIVER SIDE, RACK
    BOOT, DRIVER SIDE, RACK
  • 24
    7517909 BOLT
    BOLT
  • 25
    7555919 WASHER
    WASHER
  • 26
    7547333 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 27
    7661203 PIN, COTTER
    PIN, COTTER
  • 28
    1823443 ASM., GEAR BOX, STEERING (INCL. 2-7,23)
    ASM., GEAR BOX, STEERING (INCL. 2-7,23)
  • 29
    7512325 BOLT
    BOLT
  • 30
    7517607 BOLT, SHOULDER
    BOLT, SHOULDER
  • 31
    7542451 NUT, NYLOK
    NUT, NYLOK
  • 32
    5431107 BUSHING, PEDAL PIVOT
    BUSHING, PEDAL PIVOT
  • 33
    7043810 ASM., SHOCK, OIL LOCKING
    ASM., SHOCK, OIL LOCKING
  • 34
    1017716-458 MOUNT, EPS, BLACK
    MOUNT, EPS, BLACK
  • 35
    1823749 SHAFT, STEERING, EPS, UPPER
    SHAFT, STEERING, EPS, UPPER
  • 36
    1823782 SHAFT, STEERING, EPS, LOWER
    SHAFT, STEERING, EPS, LOWER
  • 37
    2411826 ASM., POWER STEERING
    ASM., POWER STEERING
  • 38
    7517924 BOLT, CAP
    BOLT, CAP
  • 39
    7518558 BOLT
    BOLT
  • 40
    7552901 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 41
    7512371 BOLT
    BOLT
  • 42
    7515382 BOLT
    BOLT
  • 43
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 44
    5438626 COVER, EPS
    COVER, EPS
  • 45
    7519092 SCREW
    SCREW
  • 46
    7516827 SCREW
    SCREW
  • 47
    7547274 NUT
    NUT
  • 48
    7547030 NUT, PAL
    NUT, PAL
  • 1
    5411920 BOOT, SEAL, ROD END
    BOOT, SEAL, ROD END
  • 2
    7061054 ROD END
    ROD END
  • 3
    7547028 NUT, JAM, LEFT HAND
    NUT, JAM, LEFT HAND
  • 5
    7080978 CLAMP, BOOT, SMALL
    CLAMP, BOOT, SMALL
  • 6
    5412013 BOOT, PASSENGER, SIDE RACK
    BOOT, PASSENGER, SIDE RACK
  • 7
    7080979 CLAMP, BOOT, LARGE
    CLAMP, BOOT, LARGE
  • 8
    7518786 BOLT, SHOULDER
    BOLT, SHOULDER
  • 9
    7518644 SCREW
    SCREW
  • 10
    7556482 WASHER
    WASHER
  • 11
    7556483 WASHER
    WASHER
  • 12
    5252796 SPACER, STEERING SHAFT
    SPACER, STEERING SHAFT
  • 13
    3514686 BEARING, STEERING
    BEARING, STEERING
  • 14
    1823623 WHEEL, STEERING
    WHEEL, STEERING
  • 15
    7547188 NUT
    NUT
  • 16
    5436536 CAP, STEERING WHEEL
    CAP, STEERING WHEEL
  • 17
    1017621 ASM., TUBE, PIVOT, BLACK (INCL. 13)
    ASM., TUBE, PIVOT, BLACK (INCL. 13)
  • 18
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 19
    1823681 SHAFT, STEERING, UPPER/LOWER
    SHAFT, STEERING, UPPER/LOWER
  • 20
    7518895 BOLT (LOCK PATCH)
    BOLT (LOCK PATCH)
  • 21
    7547385 NUT, NYLOK
    NUT, NYLOK
  • 22
    7546703 NUT, NYLOK
    NUT, NYLOK
  • 23
    5412012 BOOT, DRIVER SIDE, RACK
    BOOT, DRIVER SIDE, RACK
  • 24
    7517909 BOLT
    BOLT
  • 25
    7555919 WASHER
    WASHER
  • 26
    7547333 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 27
    7661203 PIN, COTTER
    PIN, COTTER
  • 28
    1823443 ASM., GEAR BOX, STEERING (INCL. 2-7,23)
    ASM., GEAR BOX, STEERING (INCL. 2-7,23)
  • 29
    7512325 BOLT
    BOLT
  • 30
    7517607 BOLT, SHOULDER
    BOLT, SHOULDER
  • 31
    7542451 NUT, NYLOK
    NUT, NYLOK
  • 32
    5431107 BUSHING, PEDAL PIVOT
    BUSHING, PEDAL PIVOT
  • 33
    7043810 ASM., SHOCK, OIL LOCKING
    ASM., SHOCK, OIL LOCKING
  • 34
    1017716-458 MOUNT, EPS, BLACK
    MOUNT, EPS, BLACK
  • 35
    1823749 SHAFT, STEERING, EPS, UPPER
    SHAFT, STEERING, EPS, UPPER
  • 36
    1823782 SHAFT, STEERING, EPS, LOWER
    SHAFT, STEERING, EPS, LOWER
  • 37
    2411826 ASM., POWER STEERING
    ASM., POWER STEERING
  • 38
    7517924 BOLT, CAP
    BOLT, CAP
  • 39
    7518558 BOLT
    BOLT
  • 40
    7552901 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 41
    7512371 BOLT
    BOLT
  • 42
    7515382 BOLT
    BOLT
  • 43
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 44
    5438626 COVER, EPS
    COVER, EPS
  • 45
    7519092 SCREW
    SCREW
  • 46
    7516827 SCREW
    SCREW
  • 47
    7547274 NUT
    NUT
  • 48
    7547030 NUT, PAL
    NUT, PAL
