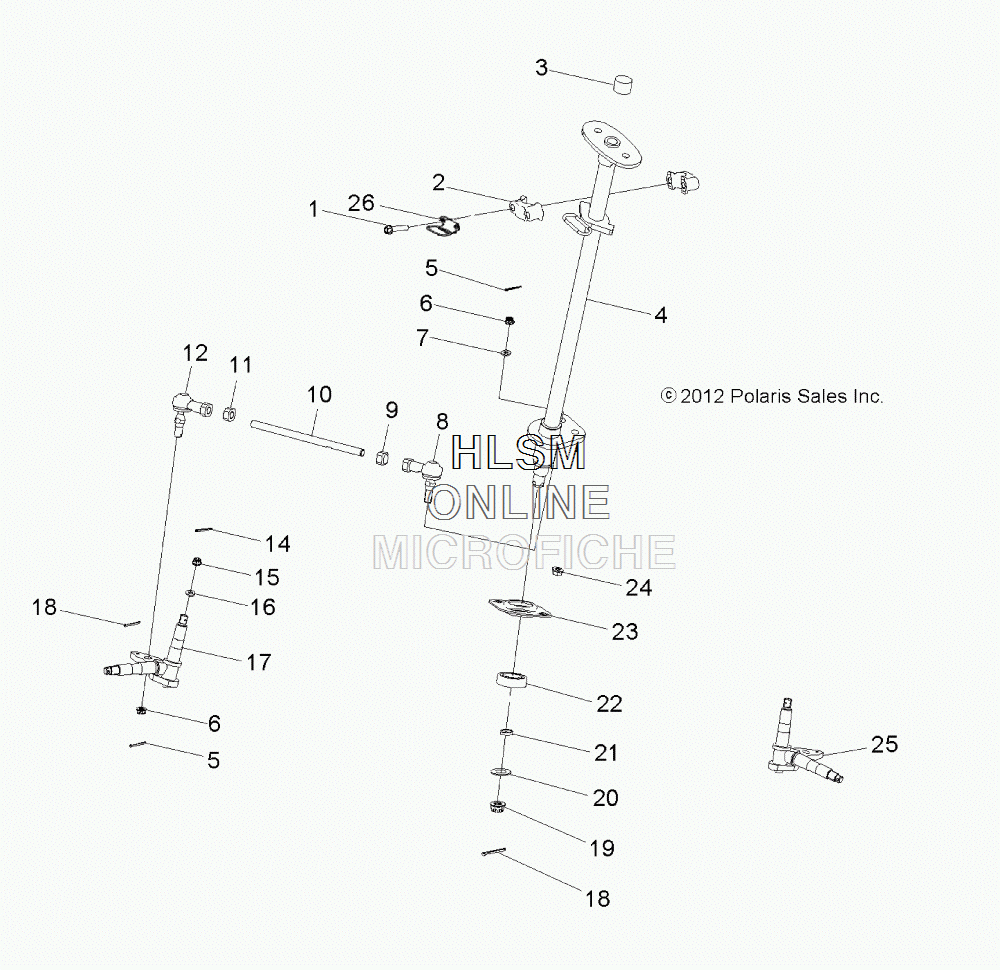

STEERING POST W/TIE RODS для Polaris OUTLAW 90 - PINK [A13KA09AD] - 2013 года выпуска`
-
№АртикулНазвание
-
10453730 BOLTBOLT
-
20450505 HOLDER, STEERINGHOLDER, STEERING
-
30450499 SLEEVE, STEERINGSLEEVE, STEERING
-
40454889-067 POST, STEERING (BLACK)POST, STEERING (BLACK)
-
50453819 PIN, COTTERPIN, COTTER
-
60453820 NUT, LOCKNUT, LOCK
-
70453809 WASHER, SPRINGWASHER, SPRING
-
80454629 ROD END, INNERROD END, INNER
-
90454749 NUT, TIE ROD, LEFT HANDNUT, TIE ROD, LEFT HAND
-
100454751 TIE RODTIE ROD
-
110454750 NUT, TIE ROD, RIGHT HANDNUT, TIE ROD, RIGHT HAND
-
120454630 ROD END, OUTERROD END, OUTER
-
140450719 PIN, COTTERPIN, COTTER
-
150450502 NUTNUT
-
160453513 WASHERWASHER
-
170453554 KNUCKLE, LEFT HANDKNUCKLE, LEFT HAND
-
180450395 PIN, COTTERPIN, COTTER
-
190453502 NUTNUT
-
200452671 WASHERWASHER
-
210452719 SPACERSPACER
-
220453978 BEARING, BALLBEARING, BALL
-
230453494 FLANGETTEFLANGETTE
-
240453866 NUTNUT
-
250453555 KNUCKLE, RIGHT HANDKNUCKLE, RIGHT HAND
-
260454879 BRACKET, GUIDE, WIREBRACKET, GUIDE, WIRE
