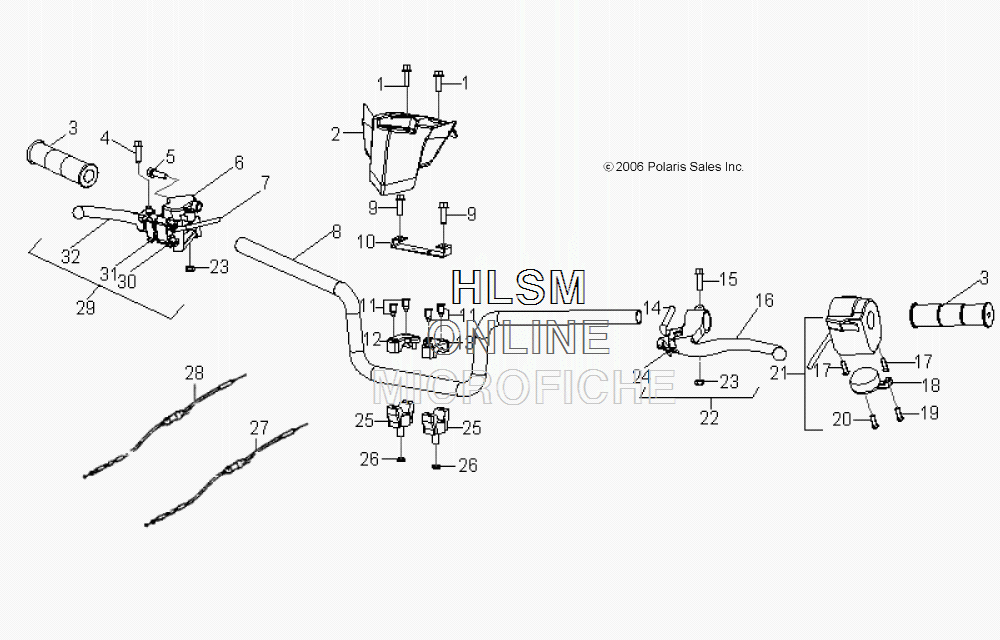

HANDLEBAR для Polaris OUTLAW 90 - BOARDWALK BLUE [A13KA09AF] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    0450667 BOLT
    BOLT
  • 2
    0453329-524 POD, UPPER (BOARDWALK BLUE) (AF)
    POD, UPPER (BOARDWALK BLUE) (AF)
  • 3
    0453370 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 4
    0450806 BOLT, BRAKE LEVER, RIGHT HAND
    BOLT, BRAKE LEVER, RIGHT HAND
  • 5
    0451788 BOLT
    BOLT
  • 6
    0453721 MOUNT, LEVER, BRAKE, RIGHT HAND
    MOUNT, LEVER, BRAKE, RIGHT HAND
  • 7
    0453736 WIRE, BRAKE SWITCH
    WIRE, BRAKE SWITCH
  • 8
    0453737-067 HANDLEBAR
    HANDLEBAR
  • 9
    0450701 BOLT
    BOLT
  • 10
    0453565 BRACKET, POD
    BRACKET, POD
  • 11
    0450148 BOLT
    BOLT
  • 12
    0450461 COVER, CLAMP, RIGHT HAND
    COVER, CLAMP, RIGHT HAND
  • 13
    0450460 COVER, CLAMP, LEFT HAND
    COVER, CLAMP, LEFT HAND
  • 14
    0453815 SENSOR, BRAKE
    SENSOR, BRAKE
  • 15
    0450807 BOLT
    BOLT
  • 16
    0450693 LEVER, BRAKE, SIDE (BLACK)
    LEVER, BRAKE, SIDE (BLACK)
  • 17
    0451148 SCREW
    SCREW
  • 18
    0453566 ASM., MANUAL CHOKE
    ASM., MANUAL CHOKE
  • 19
    0453708 BOLT
    BOLT
  • 20
    0451149 BOLT
    BOLT
  • 21
    0453359 ASM., SWITCH, LEFT HAND (INCL. 17-20)
    ASM., SWITCH, LEFT HAND (INCL. 17-20)
  • 22
    0454043 ASM., LEVER, BRAKE, LEFT HAND (INCL. 14-16,22-24)
    ASM., LEVER, BRAKE, LEFT HAND (INCL. 14-16,22-24)
  • 23
    0450808 NUT
    NUT
  • 24
    0454042 LOCK, PARK BRAKE
    LOCK, PARK BRAKE
  • 25
    0450459 CLAMP, SADDLE
    CLAMP, SADDLE
  • 26
    0450276 NUT
    NUT
  • 27
    0453499 CABLE, CHOKE
    CABLE, CHOKE
  • 28
    0453500 CABLE, THROTTLE
    CABLE, THROTTLE
  • 29
    0453740 ASM., LEVER, RIGHT HAND (INCL. 23,30-32)
    ASM., LEVER, RIGHT HAND (INCL. 23,30-32)
  • 30
    0452202 ARM, THROTTLE
    ARM, THROTTLE
  • 31
    0450994 BRACKET, BRAKE CABLE
    BRACKET, BRAKE CABLE
  • 32
    0450694 LEVER, BRAKE, SIDE
    LEVER, BRAKE, SIDE
